CLAAS CONSPEED 8-75 FC CONSPEED 6-75 FC CLAAS LEXION ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

Description

CLAAS CONSPEED 8-75 FC CONSPEED 6-75 FC CLAAS LEXION ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

DESCRIPTION:

CLAAS CONSPEED 8-75 FC CONSPEED 6-75 FC CLAAS LEXION ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

General recommandation for repair

1. Locate the seat of the trouble, note all defective parts and take all precautions to prevent accidents.
2. Use genuine CLAAS spares and suitable CLAAS special service tools.
3. Drain off oil before removing the transmission cases. Use a plastic or soft metal hammer to separate parts tightly fitted into each other.

4. Correct tension of steel roller chains

Find the center point in the slack span between sprockets. With the tight span slightly under load, push in the center point of the slack span with the thumb. The tension of the chain is correct when its slack span deflects about 2 % of the center distance between shafts. Tension of new chains should be checked at short intervals.

Example: If the distance between the centers of the shafts is 500 mm, the slack span of the chain should deflect about 10 mm.

TABLE OF CONTENTS:

CLAAS CONSPEED 8-75 FC CONSPEED 6-75 FC CLAAS LEXION ADJUSTMENT AND REPAIR INSTRUCTIONS MANUAL – PDF DOWNLOAD

Meaning of symbols5
Tightening torques9
General recommandation for repair14
Maize snapping unit20
Removing the maize snapping unit 20
Installing the knife drums 20
Basic adjustment of the
snapping plates 20
Overload clutch of snapping
unit drive 22
Linkage for the snapping plate
adjustment22
Sheet metal covers 24
Securing bolts 24
Feed auger 24
Installaton of clutch 24
Drive systems 24
Drive shaft clutch24
Hour meter26
How to read off the total number of
operating hours 26

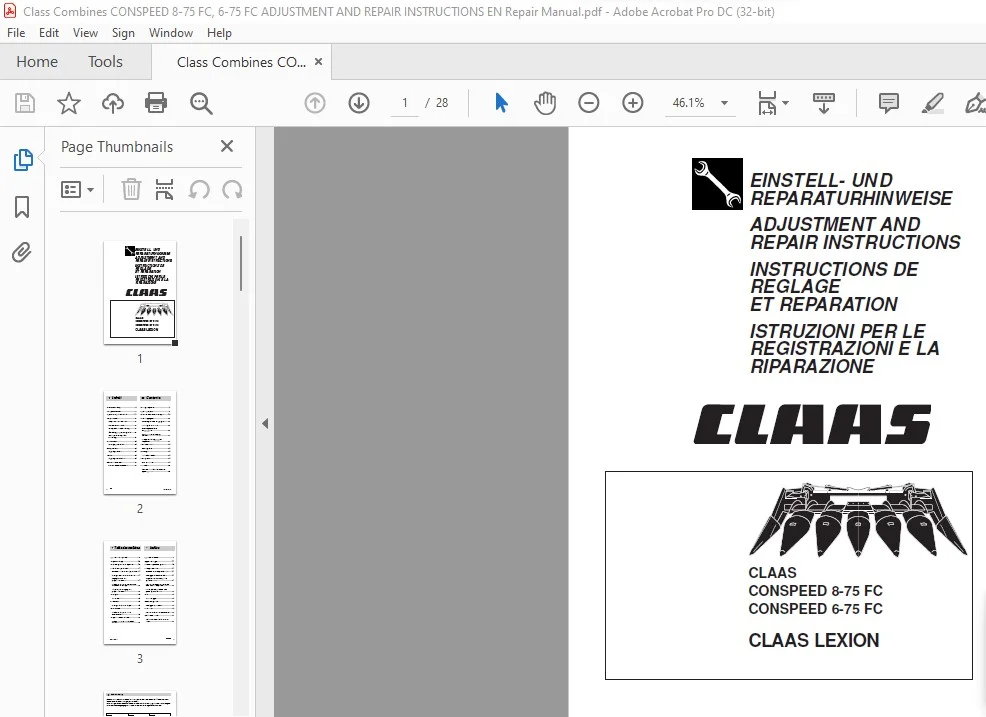

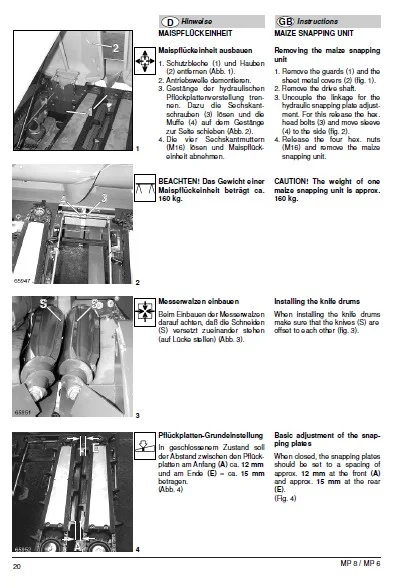

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
