CLAAS CONSPEED 8-75 FC CONSPEED 6-80 FC CONSPEED 6-75 FC CONSPEED 6-70 FC Chopper guard Conversion Instructions Manual

Description

CLAAS CONSPEED 8-75 FC CONSPEED 6-80 FC CONSPEED 6-75 FC CONSPEED 6-70 FC Chopper guard Conversion Instructions Manual_DE_EN_FR_IT_ES

DESCRIPTION:

CLAAS CONSPEED 8-75 FC CONSPEED 6-80 FC CONSPEED 6-75 FC CONSPEED 6-70 FC Chopper guard Conversion Instructions Manual_DE_EN_FR_IT_ES

INTRODUCTION

This manual describes the safe and time-saving procedure for conversion with the chopper guard conversion kits. Read it through carefully before commencing work. Pay particular attention to the section »General instructions«. The following machines/equipment can be converted:

CLAAS maize headers:
CONSPEED 8-75 FC, part no. 0496 220.0
CONSPEED 6-80 FC, part no. 0496 219.0
CONSPEED 6-75 FC, part no. 0496 218.0
CONSPEED 6-70 FC, part no. 0496 217.0

The parts supplied are listed on pages 4.2 to 4.5. Before commencing work, make sure that the conversion kit is complete. Consider the “Shipping package” listing as a supplement to the spare parts list. Dispose of the old parts that are not used for reassembly in an environmentally-friendly manner.

TABLE OF CONTENTS:

CLAAS CONSPEED 8-75 FC CONSPEED 6-80 FC CONSPEED 6-75 FC CONSPEED 6-70 FC Chopper guard Conversion Instructions Manual_DE_EN_FR_IT_ES

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Packing list for
Conspeed 8-75 FC chopper guard conversion kit 42
Conversion kit: 0496 2200 42
Packing list for
Conspeed 6-80 FC chopper guard conversion kit 43
Conversion kit: 0496 2190 43
Packing list for
Conspeed 6-75 FC chopper guard conversion kit 44
Conversion kit: 0496 2180 44
Packing list for
Conspeed 6-70 FC chopper guard conversion kit 45
Conversion kit: 0496 2170 45

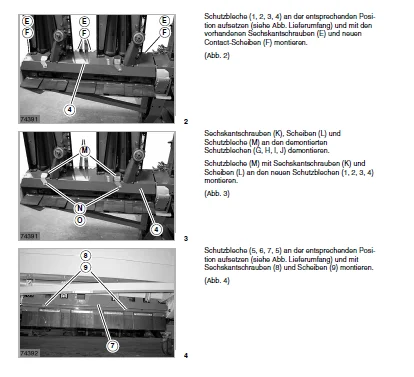

5 Chopper guard assembly
Disassembling the chopper guard 52
Assembling the chopper guard 53
Check and observe the following before putting into operation 55

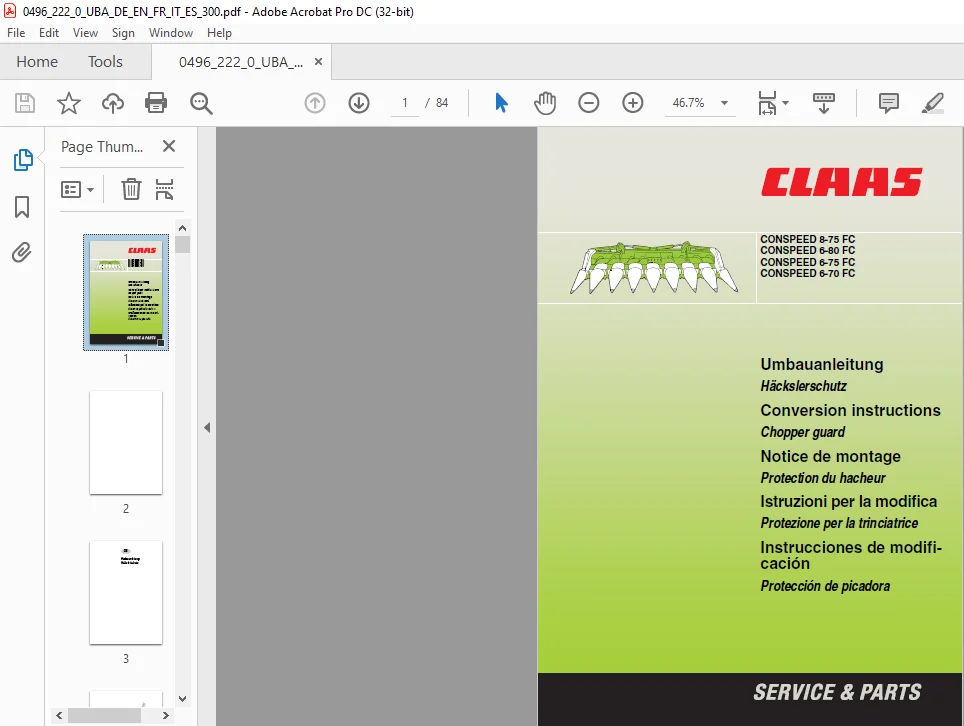

IMAGES PREVIEW OF THE MANUAL:
