Claas CORTO 8100 F (JAGUAR 880 – 820) CORTO 8100 F (JAGUAR 695 – 690) Operator’s Manual FR_DE_EN

Description

Claas CORTO 8100 F (JAGUAR 880 – 820) CORTO 8100 F (JAGUAR 695 – 690) Operator’s Manual FR_DE_EN – PDF DOWNLOAD

DESCRIPTION:

Claas CORTO 8100 F (JAGUAR 880 – 820) CORTO 8100 F (JAGUAR 695 – 690) Operator’s Manual FR_DE_EN – PDF DOWNLOAD

INTRODUCTION:

This manual provides information on the use, setting and servicing of the CLAAS Drum Mower. The advice on the care and servicing should be followed in order to obtain maximum performance and long service.

• The assembly and the regular inspection of your machine should be performed by your specialist workshop. Neglect in maintenance and service and incorrect use will result in poor machine efficiency and loss of valuable time.
• By correct operation and servicing you can make full use of the technical knowledge and experience with which your machine has been designed.

Important :

The instructions contained in this manual should be read carefully and observed by all persons concerned with the operation, maintenance and inspection of this machine in order to prevent accidents. Especially the SAFETY RULES and the PRIOR TO OPERATION sections should be read with the utmost care and adhered to.

• The use of spare parts, accessories and ancillary equipment which are not originally manufactured or not checked and approved by CLAAS, can change the specified design characteristics of the CLAAS machine or can detract from its functional performance with a possible adverse effect on the active and/or passive safety of the machine and its occupational safety standards (accident prevention).
• CLAAS are in no way liable for any damage or personal injury caused through the use of other than original or approved CLAAS parts, accessories and ancillary equipment. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsability for errors and omissions not accepted.

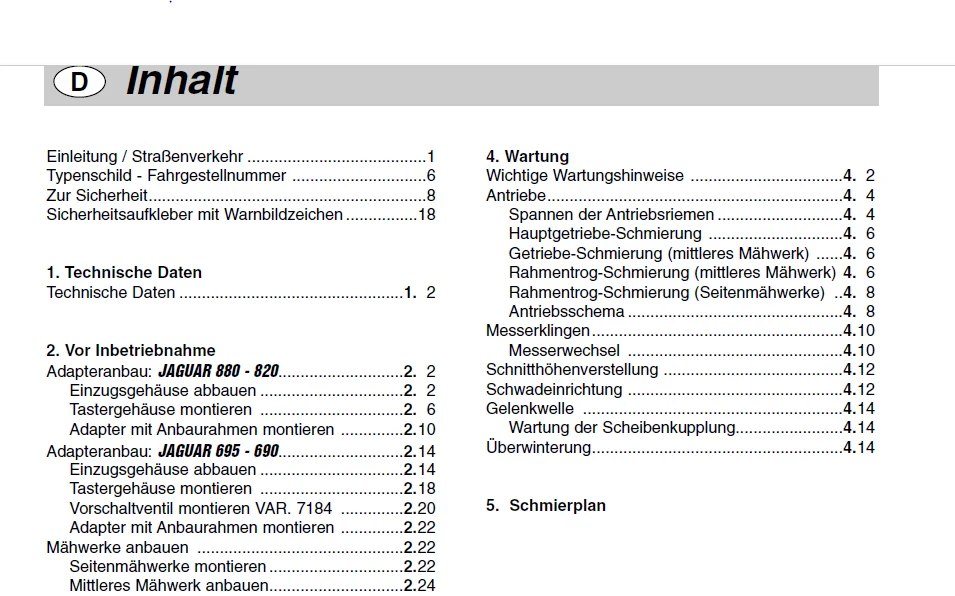

TABLE OF CONTENTS:

Claas CORTO 8100 F (JAGUAR 880 – 820) CORTO 8100 F (JAGUAR 695 – 690) Operator’s Manual FR_DE_EN – PDF DOWNLOAD

Introduction / Road traffic regulations 2
Type plate – No de machine 7
Safety advice 11

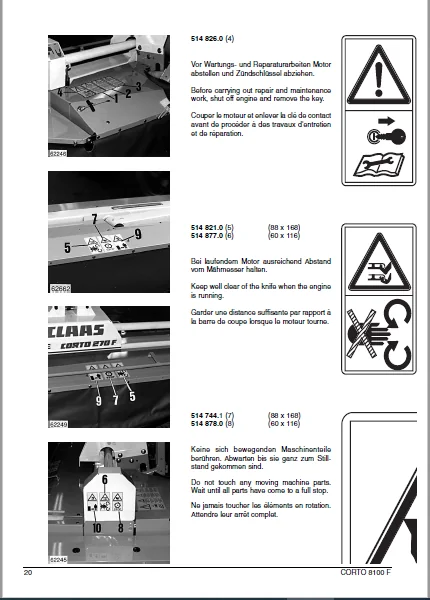

Safety decals with warning symbols 18
1 Technical data
Technical data 1 3
2 Before operation
Adaptormounting: JAGUAR 880 – 820 2 2
Removing the feed roller housing 2 2
Installing the contral box 2 7
Mounting the adaptor with mounting frame 2 11
Adaptormounting: JAGUAR 695 – 690 2 15
Removing the feed roller housing 2 15
Installing the contral box 2 19
Mouting the pilot valve VAR 7184 2 21
Mounting the adaptor with mounting frame 2 23
Mounting the mowers 2 23
Mounting the lateral mower 2 23
Mounting the middle mower 2 23
Mounting the universal drive shaft 2 27
Installing the crop guards 2 29
Pre-operation checks 2 31
Adapting the mowing unit 2 31
Adapting the universal drive shaft length 2 31
Flotation – middle mower 2 33
Limit stop for vertical flotation –
lateral mowers 2 35
Hydraulics 2 37
Electric system 2 37
Detaching the machine 2 39
Before transporting the mowing unit 2 41
Road transport 2 41
3 Operation
Control box 3 3
Operation 3 3
Working position 3 3
Transport position 3 5
Cutting height adjustment 3 7
Positioning the swath-discs 3 7
Kicker clamp 3 9
Safety release 3 9
Mowing instructions 3 9
Locking the tree point headstock 3 11
Additional equipment 3 13
Arched blades 3 13
Elevation of the sliding plate for
high-level cutting 3 13
Wear parts for cutting drums 3 15
Swath discs for lateral mowers 3 15
4 Maintenance
Maintenance instructions 4 3
Drive mechanism 4 5
Tensioning the drive belts 4 5
Main gearbox lubrication (carrying frame) 4 7
Gearbox lubrication (central mower) 4 7
Gear casing lubrication (central mower) 4 7
Gear casing lubrication (lateral mowers) 4 9
Drive diagram 4 9
Cutting knives 4 11
Changing the knives 4 11
Cutting height adjustment unit 4 13
Swath device 4 13
PTO drive shaft 4 15
Maintenance of the disc clutch 4 15
Winter storage instructions 4 15
5 Lubrication chart

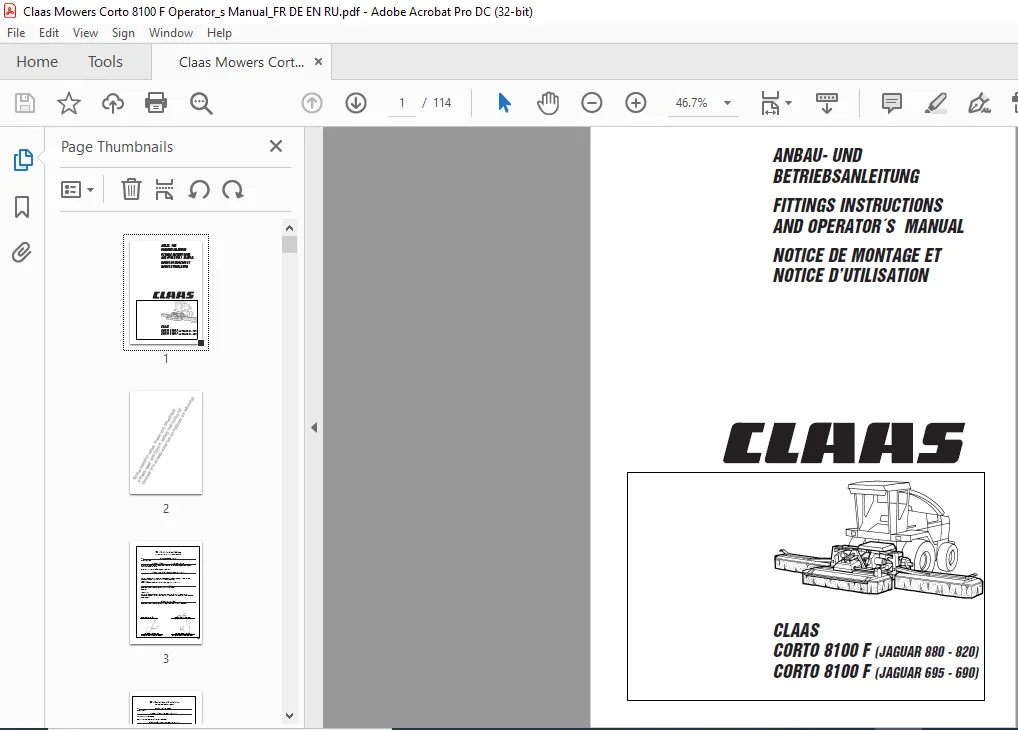

IMAGES PREVIEW OF THE MANUAL:
