CLAAS LEXION Cutterbar (3.90m-9.00m) Service Repair Manual PDF

Description

CLAAS CUTTERBAR 3.90 M – 9.00 M LEXION REPAIR MANUAL – PDF DOWNLOAD

DESCRIPTION:

CLAAS CUTTERBAR 3.90 M – 9.00 M LEXION REPAIR MANUAL – PDF DOWNLOAD

INTRODUCTION

• This CLAAS REPAIR MANUAL is intended to help maintain the permanent availability, and thus the high value of CLAAS cutterbars, through careful maintenance and technical monitoring by Customer Service.
• This REPAIR MANUAL is based on the experience gained by our Customer Service technicians and at the factory.
• The series of figures shows the sequence of a repair procedure; the text provides the necessary instructions on setting and using special CLASS tools.
• The main repair procedures are described is such a way that individual or short work procedures are easy to follow. The CLAAS REPAIR MANUAL is based on a loose-leaf system.
• It is complemented by supplements according to the technical advancement of the machines and is thus permanently kept up to date as a reference manual. As a precaution, please always compare the setting values and filling quantities with those specified in the current operating instructions for the respective machine

INTRODUCTION TO THE
CLAAS REPAIR MANUAL

• The CLAAS REPAIR MANUAL is split into main groups CLAAS REPAIR MANUAL and sub-groups. The first digit of the numbering at the foot of each page indicates the main group, the digit behind the dot the sub-group and the digit behind the slash the page number.
• In each sub-group, the figures and pages are consecutively numbered beginning with 1. Differences between the machine types are indicated by the figure or text headings. Assembly procedures which apply to all machine types dealt with in this manual are kept neutral.
• In the case of supplements, the sub-groups are complemented or replaced. Any supplements are filed in the respective main group / sub-group and the table of contents is replaced. The pictograms ensure swift orientation in the case of recurrent assembly procedures.
• Their meaning is explained at the beginning of this manual. Informative elucidations can be found in the section entitled »GENERAL REPAIR INSTRUCTIONS« at the beginning of this manual. Please read and observe these important instructions. They are the basis for safe and long-term operation after repair work.

GENERAL REPAIR INSTRUCTIONS

1. Identify the cause of the damage, delimit the damage and secure the machine.
2. Use original CLAAS spare parts and the appropriate special CLAAS tools.
3. Always disconnect the battery cable (–) before working on the engine.
4. When removing the gearbox, drain the oil before removing the gearbox. Separate firmly engaged parts by means of a soft metal or plastic hammer

5. Tensioning steel roller chains

Steel roller chains are correctly tensioned when the slack (return) side has a play (under thumb pressure) of approx 2 % of the respective centre distance in the middle between the sprockets with the tight side only under a slight load. Check the tension of new chains more frequently

TABLE OF CONTENTS:

CLAAS CUTTERBAR 3.90 M – 9.00 M LEXION REPAIR MANUAL – PDF DOWNLOAD

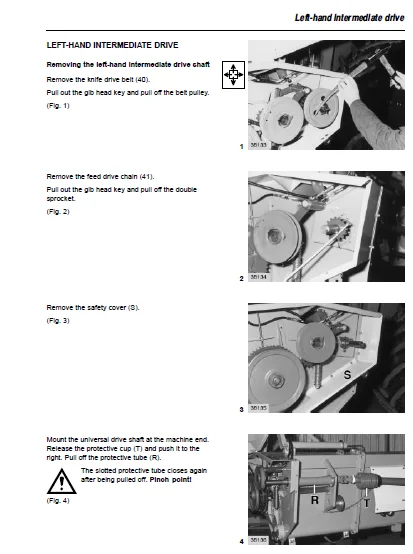

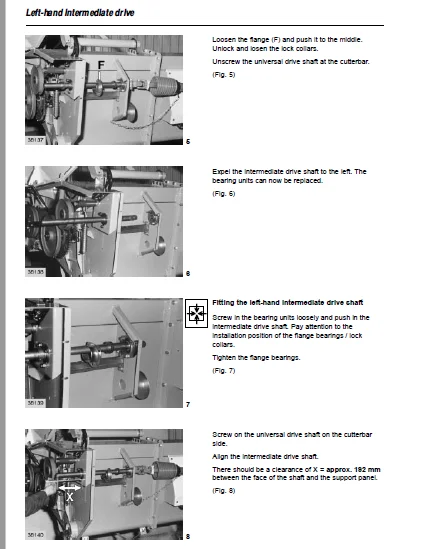

LEFT-HAND INTERMEDIATE DRIVE
Removing the left-hand intermediate drive 31 / 1
Fitting the left-hand intermediate drive 31 / 2
KNIFE DRIVE
Removing the knife drive belt (40) 32 / 1
Slackening the knife drive belt (40) 32 / 1
Fitting and aligning the knife drive belt (40) 32 / 1
Removing the knife drive (40) belt pulley 32 / 2
Removing the wobble mechanism 32 / 2
Dismantling the wobble mechanism 32 / 3
The wobble mechanism, dismantled
(390 m – 750 m cutterbar) 32 / 6
Assembling the wobble mechanism
(390 m – 750 m cutterbar) 32 / 7
The wobble mechanism, dismantled
(900 m cutterbar) 32 /12
Assembling the wobble mechanism
(900 m cutterbar) 32 /13
Fitting the wobble mechanism 32 /17
Removing the knife drive (40) guide roller 32 /19
The knife drive (40) guide roller, dismantled 32 /19
Fitting the knife drive (40) guide roller 32 /19
Removing the knife drive (40) jockey pulley 32 /19
The knife drive (40) jockey pulley,
dismantled 32 /20

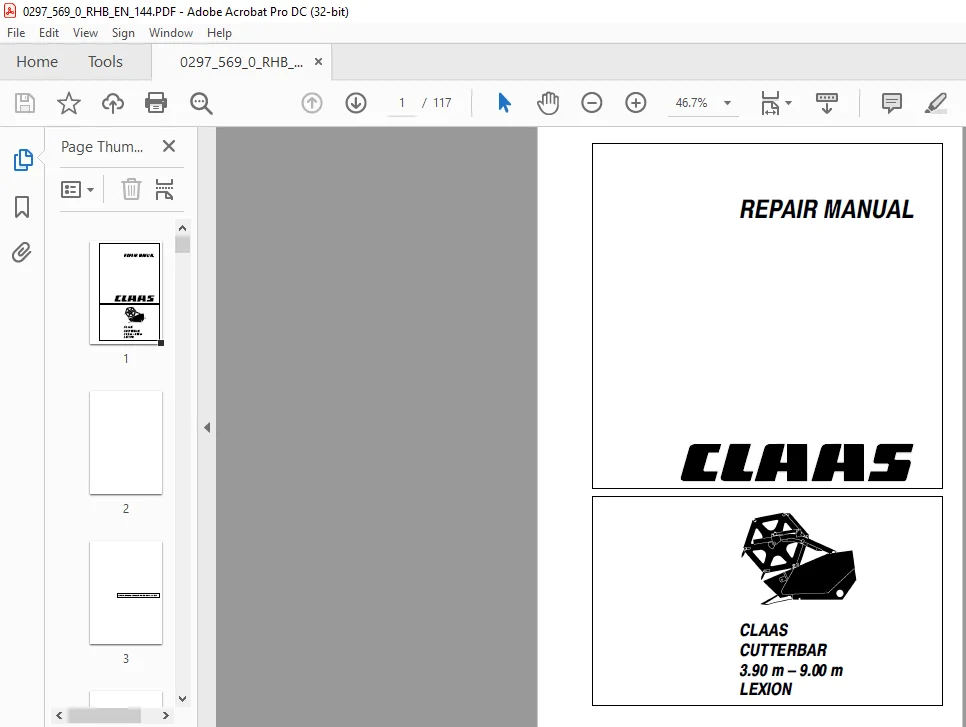

IMAGES PREVIEW OF THE MANUAL:
