CLAAS DIRECT DISC 520 CONTOUR Hydraulic Paddle Adjustment Assembly instructions Manual_DE_EN_FR_IT_DA

Description

CLAAS DIRECT DISC 520 CONTOUR Hydraulic Paddle Adjustment Assembly instructions Manual_DE_EN_FR_IT_DA

DESCRIPTION:

CLAAS DIRECT DISC 520 CONTOUR Hydraulic Paddle Adjustment Assembly instructions Manual_DE_EN_FR_IT_DA

INTRODUCTION

These instructions describe the safe and timesaving procedure for fitting the hydraulic paddle lift using the installation kit ET No. 0495 508.0. Please read this manual carefully before commencing work! Pay particular attention to the »General Information « section. The following machines can be modified:

Mower unit:
DIRECT DISC 520 CONTOUR

The Lieferumfang is listed on page 4.1. Before commencing work make sure that the installation kit is complete. Also consider the Lieferumfang list as an addition to the spare parts list.

3 General Information
PAY PARTICULAR ATTENTION TO THIS
INFORMATION

• To prevent accidents, these instructions must be read by everyone who uses the machine/ front attachment and who deals with the maintenance, servicing or inspection. It is advisable to pay particular attention to the chapter headed »General Information« in your operator’s manual as well as to comply with the regulations for the prevention of accidents that are in
• force in your country. Before starting work, make sure that all the necessary tools and attachments are ready for use. Make a comparison between the type of machine/front attachment on hand, the list which appears in the section headed
• »Lieferumfang « and the ready-to-assemble parts supplied. Specifications of the parts, for example the screws, appears in the list headed »Lieferumfang «. In this list, each assembly component is identified by an item number. Other information stated on these components are the spare part number, the quantity, the dimensions, the DIN standard and the application. In the assembly descriptions, the parts on hand are identified by letters and new parts by numbers (item numbers) for the purpose of improving orientation.
• Texts and diagrams are neutral as far as possible. Annotations in the text draw attention to differences in the various types. Technical details, dimensions and weights are to be considered with the relevant tolerances. Forwards, backwards, right and left are to be always understood as facing the direction of the machine.
• TABLE OF CONTENTS:

CLAAS DIRECT DISC 520 CONTOUR Hydraulic Paddle Adjustment Assembly instructions Manual_DE_EN_FR_IT_DA

1 Introduction
Introduction 11
2 Table of contents
3 General Information
Pay particular attention to this information 31
Identification of warnings and danger signs 31
Intended use 32
Safety decals with warning symbols 32
General safety instructions 32

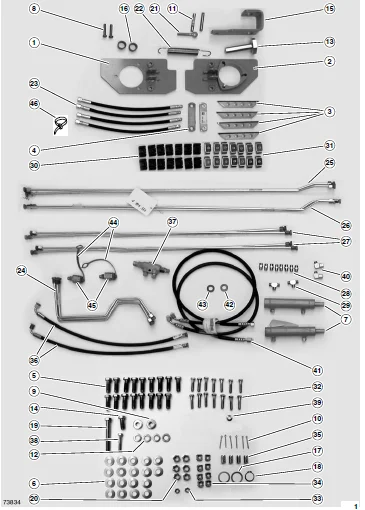

4 Package list
Package list for supplementary kit hydraulic paddle lifting 43
Mounting kit: 0495 5080 43
5 Disassembly
Paddle bearing disassembly 51
Remove plastic covers 51
Remove the adjusting plates 52
6 Assembly
Paddle bearing assembly 61
Pre-assembling the adjusting plates 61
Assembling the adjusting plates 61
Assembling the movement limiters 62
Fitting the drive chain 63
Fitting the chain tensioner 63
Fitting the hydraulic cylinder 64
Fitting the hydraulic connections 64
Fit the plastic covers 67
Check and observe the following before putting into operation 68
7 Operation
Operating the paddle bearing 71
Setting the movement limiter 71

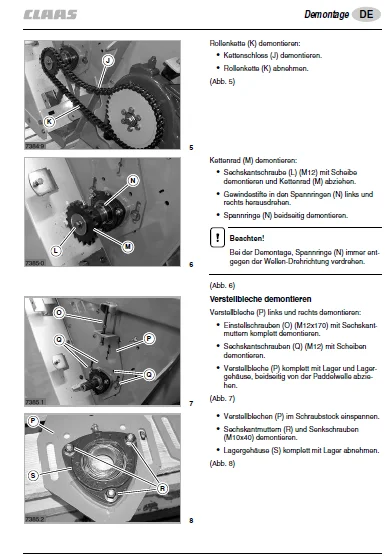

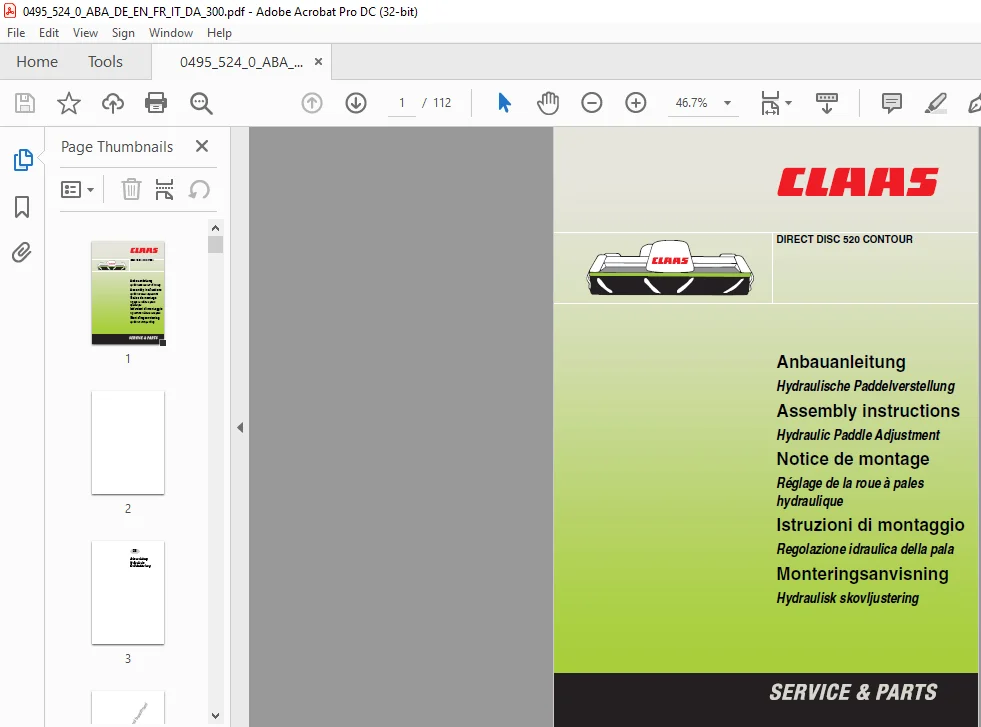

IMAGES PREVIEW OF THE MANUAL:

CLAAS DIRECT DISC 520 CONTOUR HYDRAULIC PADDLE ADJUSTMENT ASSEMBLY INSTRUCTIONS MANUAL_DE_EN_FR_IT_DA:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
