CLAAS DIRECT DISC 520 DIRECT DISC 520 Contour Laser Pilot Fitting Instructions Manual_DE_EN_FR_IT

Description

CLAAS DIRECT DISC 520 DIRECT DISC 520 Contour Laser Pilot Fitting Instructions Manual_DE_EN_FR_IT

DESCRIPTION:

CLAAS DIRECT DISC 520 DIRECT DISC 520 Contour Laser Pilot Fitting Instructions Manual_DE_EN_FR_IT

INTRODUCTION

This manual describes the safe and timesaving procedure for installing the Autopilot with the installation kit part No. 0495 424.0. Please read this manual carefully before starting work. Pay particular attention to the section »General Information «. The following machines can be modified: DIRECT DISC 520 DIRECT DISC 520 Contour The Shipping package is listed on page 4.1. Before starting work make sure that the installation kit is complete. Also consider the Shipping package list as an addition to the spare parts list

General Information
PAY PARTICULAR ATTENTION TO THIS
INFORMATION

• To prevent accidents, these instructions must be read by everyone who uses the machine/ front attachment and who deals with the maintenance, servicing or inspection.
• It is advisable to pay particular attention to the chapter headed »General Information« in your operator’s manual as well as to comply with the regulations for the prevention of accidents that are in force in your country.
• Before starting work, make sure that all the necessary tools and attachments are ready for use. Make a comparison between the type of machine/front attachment on hand, the list which appears in the section headed »Lieferumfang « and the ready-to-assemble parts supplied. Specifications of the parts, for example the screws, appears in the list headed »Lieferumfang «.
• In this list, each assembly component is identified by an item number. Other information stated on these components are the spare part number, the quantity, the dimensions, the DIN standard and the application.
• In the assembly descriptions, the parts on hand are identified by letters and new parts by numbers (item numbers) for the purpose of improving orientation.
• Texts and diagrams are neutral as far as possible. Annotations in the text draw attention to differences in the various types. Technical details, dimensions and weights are to be considered with the relevant tolerances. Forwards, backwards, right and left are to be always understood as facing the direction of the machine.

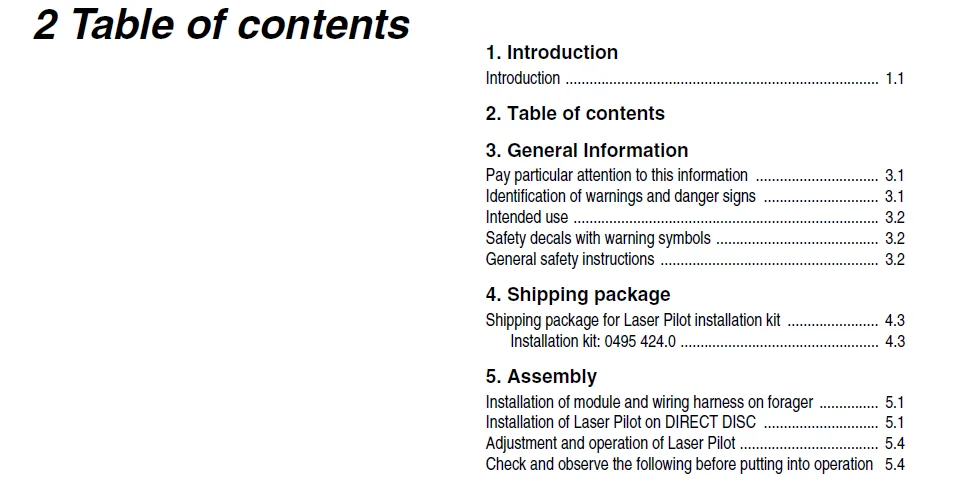

TABLE OF CONTENTS:

CLAAS DIRECT DISC 520 DIRECT DISC 520 Contour Laser Pilot Fitting Instructions Manual_DE_EN_FR_IT

1 Introduction
Introduction 11
2 Table of contents
3 General Information
Pay particular attention to this information 31
Identification of warnings and danger signs 31
Intended use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping package for Laser Pilot installation kit 43
Installation kit: 0495 4240 43
5 Assembly
Installation of module and wiring harness on forager 51
Installation of Laser Pilot on DIRECT DISC 51
Adjustment and operation of Laser Pilot 54
Check and observe the following before putting into operation 54

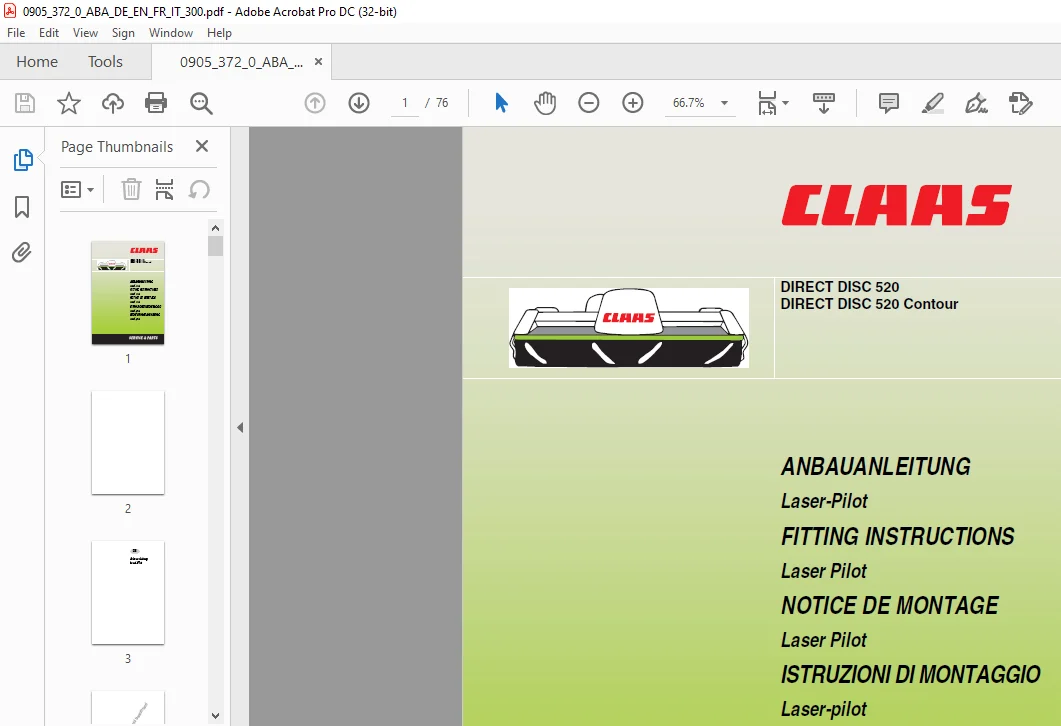

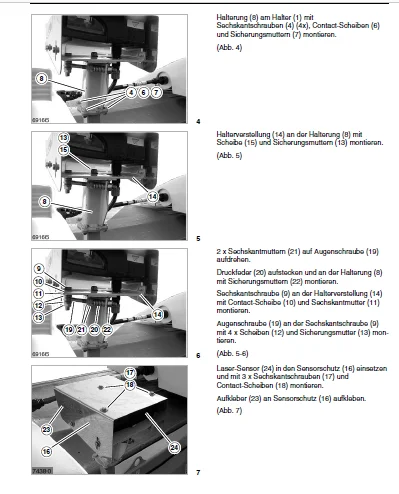

IMAGES PREVIEW OF THE MANUAL:

CLAAS DIRECT DISC 520 DIRECT DISC 520 CONTOUR LASER PILOT FITTING INSTRUCTIONS MANUAL_DE_EN_FR_IT:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
