DESCRIPTION:

CLAAS DISCO 3000 TC Plus DISCO 3000 Flapgrouper / Plus DISCO 3000 TRC / Plus DISCO 3000 AS / Plus Drawbar conversion kit Conversion instructions Manual_EN_DE_FR

INTRODUCTION

These instructions describe a safe and timesaving procedure for the conversion kit ET-No. 925 544.0 (drawbar). Please read this manual thoroughly before starting work! Pay particular attention to the section »General instructions«. The following machines can be converted:

CLAAS disc mower types:
DISCO 3000 TC Plus
DISCO 3000 Flapgrouper / Plus
DISCO 3000 TRC / Plus
DISCO 3000 AS / Plus

The shipping package is listed on page 4.2. Before starting with the work, ensure that all parts of the conversion kit have been supplied. The “Shipping package” list is also considered a supplement to the spare parts list. Components, which are not needed for the conversion, must be disposed of in an environmentally compatible manner.
TABLE OF CONTENTS:

CLAAS DISCO 3000 TC Plus DISCO 3000 Flapgrouper / Plus DISCO 3000 TRC / Plus DISCO 3000 AS / Plus Drawbar conversion kit Conversion instructions Manual_EN_DE_FR

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping package for drawbar conversion kit 42
Conversion kit: 925 5440 42
5 Disassembly
Drive shaft 52
Protective plates 52
Hydraulic hoses and cables 52
6 Welding instructions
Drive shaft bearing support 61
Drawbar reinforcement 62
7 Reassembly
Hydraulic hoses and cables 71
Protective plates 71
Drive shaft 72
Check and observe the following points before putting into
operation: 73

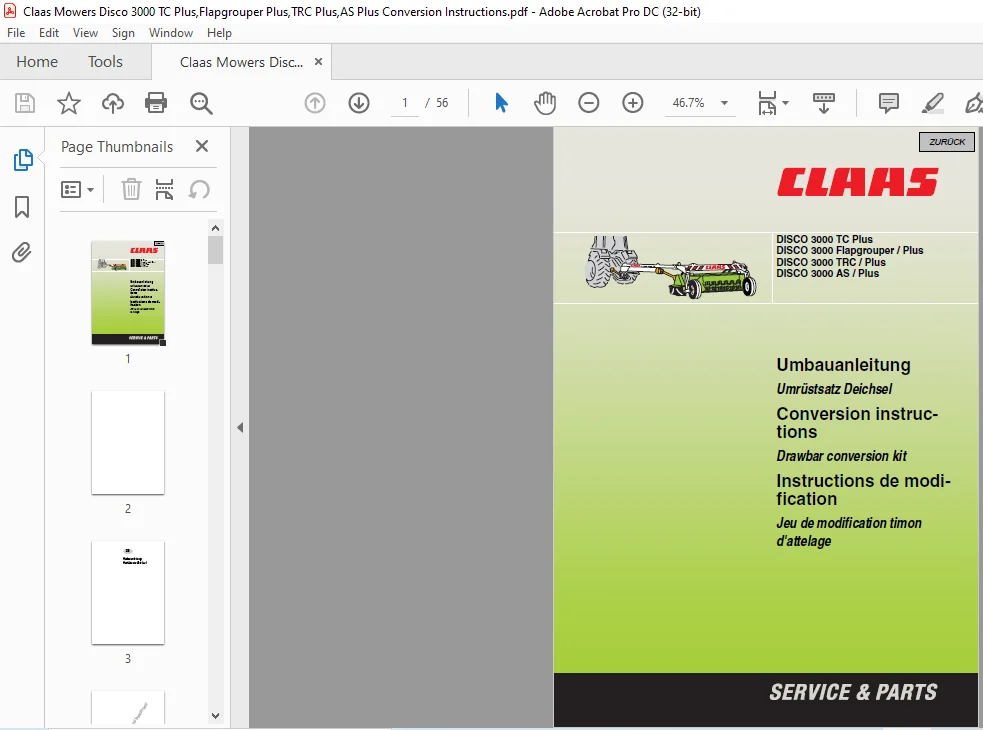

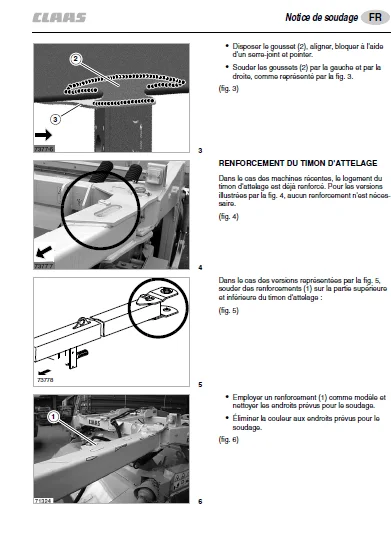

IMAGES PREVIEW OF THE MANUAL:
