Claas DISCO 3050 TC Plus TC AS Plus AS Plus TRC Plus TRC AS Plus TC Plus Flapgrouper Assembly Instruction Manual DE_EN_FR_IT – PDF DOWNLOAD

DESCRIPTION:

Claas DISCO 3050 TC Plus TC AS Plus AS Plus TRC Plus TRC AS Plus TC Plus Flapgrouper Assembly Instruction Manual DE_EN_FR_IT – PDF DOWNLOAD

INTRODUCTION :

This manual describes the safe and time-saving work procedure for assembly of the machine. Please read this manual thoroughly before starting work! Pay particular attention to the section Β»General InformationΒ« and the information on dangers in the operator’s manual.
The following machines can be assembled

Disc mower:
DISCO 3050 TC Plus
DISCO 3050 TC AS Plus
DISCO 3050 AS Plus
DISCO 3050 TRC Plus
DISCO 3050 TRC AS Plus
DISCO 3050 TC Plus FLAPGROUPER
from serial no. 622 0 1001

TABLE OF CONTENTS:

Claas DISCO 3050 TC Plus TC AS Plus AS Plus TRC Plus TRC AS Plus TC Plus Flapgrouper Assembly Instruction Manual DE_EN_FR_IT – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
3 General Information
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Fitting instructions
General instructions for fitting 41
Assembly of the disc mower 41
Fitting the linkage of the 3 way crossover cock 43
After fitting, check and observe before commissioning! 44
Direction of rotation conveyor belt
DISCO 3050 TC AS Plus / AS Plus / TRC AS Plus 44
Elevation of the conveyor belt
DISCO 3050 TC AS Plus / AS Plus / TRC AS Plus 45
Prior to operation 46
Pictograms 47
5 Work sequence
DISCO 3050 TC Plus 51
DISCO 3050 TC AS Plus / AS Plus 541
DISCO 3050 TRC Plus 529
DISCO 3050 TRC AS Plus 557
DISCO 3050 TC Plus FLAPGROUPER 513

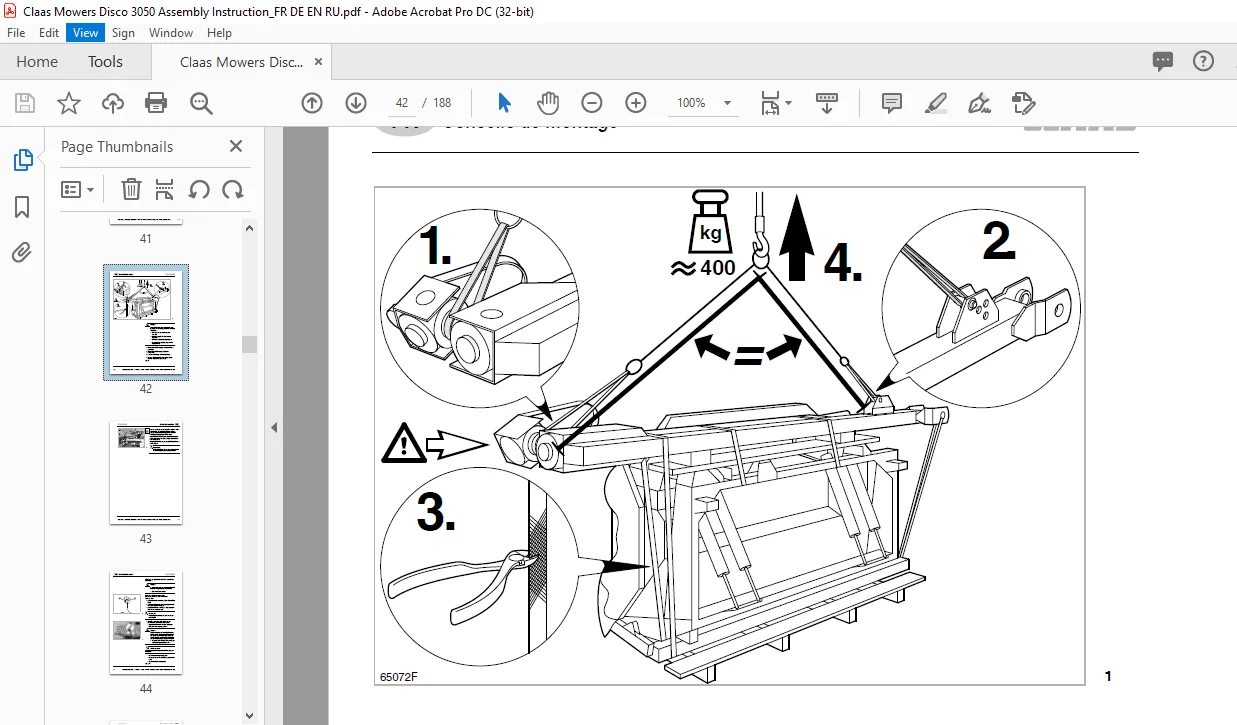

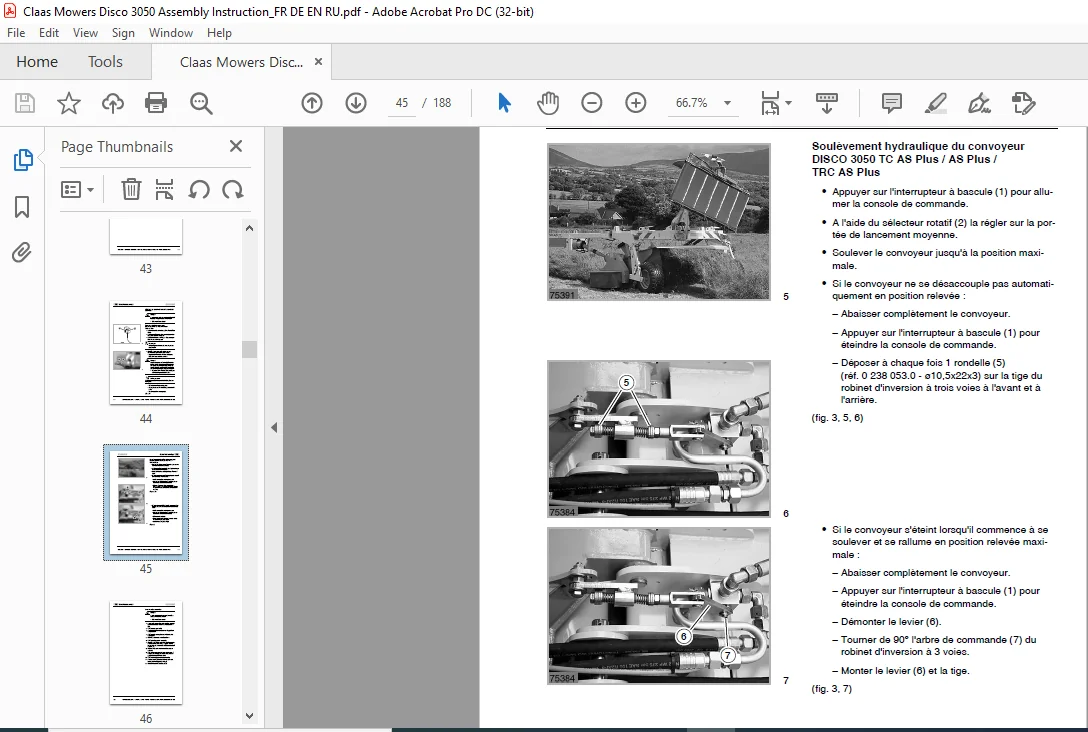

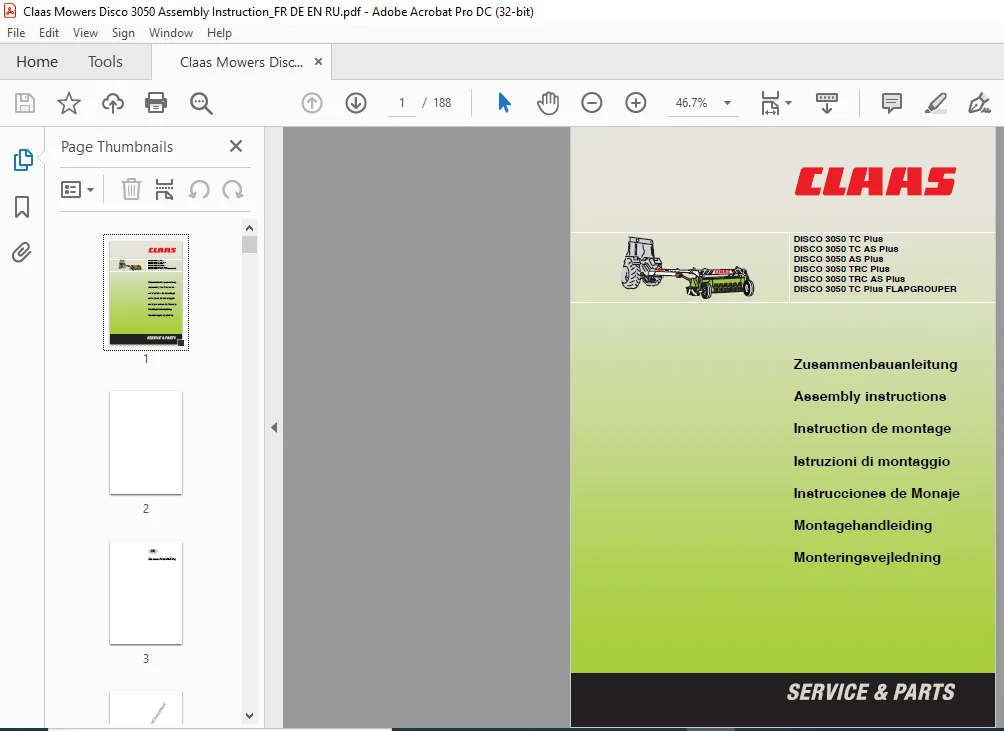

IMAGES PREVIEW OF THE MANUAL:
