CLAAS DISCO 3450 PLUS 3050 3050 PLUS 3050 C PLUS 2650 2650 PLUS 2650 C PLUS Operator’s Manual

Description

CLAAS DISCO 3450 PLUS 3050 3050 PLUS 3050 C PLUS 2650 2650 PLUS 2650 C PLUS Operator’s Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS DISCO 3450 PLUS 3050 3050 PLUS 3050 C PLUS 2650 2650 PLUS 2650 C PLUS Operator’s Manual – PDF DOWNLOAD

INTRODUCTION:

This manual provides information on the use, setting and servicing of the CLAAS Disc Mower. The advice on the care and servicing should be followed in order to obtain maximum performance and long service.

• The assembly and the regular inspection of your machine should be performed by your specialist workshop. Neglect in maintenance and service and incorrect use will result in poor machine efficiency and loss of valuable time.
• By correct operation and servicing you can make full use of the technical knowledge and experience with which your machine has been designed.

VALIDITY
These operating instructions apply for all
disc mowers:
DISCO 3450
Typ 636
from serial no. 636 0 1201
DISCO 3050
Typ 638
from serial no. 638 0 1048
DISCO 3050 C
Typ 621
from serial no. 621 0 1001
DISCO 2650
Typ 637
from serial no. 637 0 1001
DISCO 2650 C
Typ 620
from serial no. 620 0 1001

Please also note that the CLAAS disc mower may also be referred to as the machine or just the mower unit in the following chapters. The instructions set forth in this manual must be read carefully and followed by all persons concerned with operation, maintenance, repair or inspection of this machine in order to prevent accidents.

• Some safety guards and covers have been removed for illustration in this manual. All protective equipment and covers must be attached before the machine is started up! Please particularly read the sections »Safety Instructions« and »Before Operation«.
• The use of spare parts, accessories and additional equipment which is not originally manufactured, checked and released by CLAAS can have a negative effect on specific design features of the CLAAS machine or on its operability, thereby impairing active and/or passive operating safety, as well as safety at work (accident prevention).
• CLAAS will in no way be liable for damage or personal injury caused by the use of other than original CLAAS parts, accessories and additional equipment.

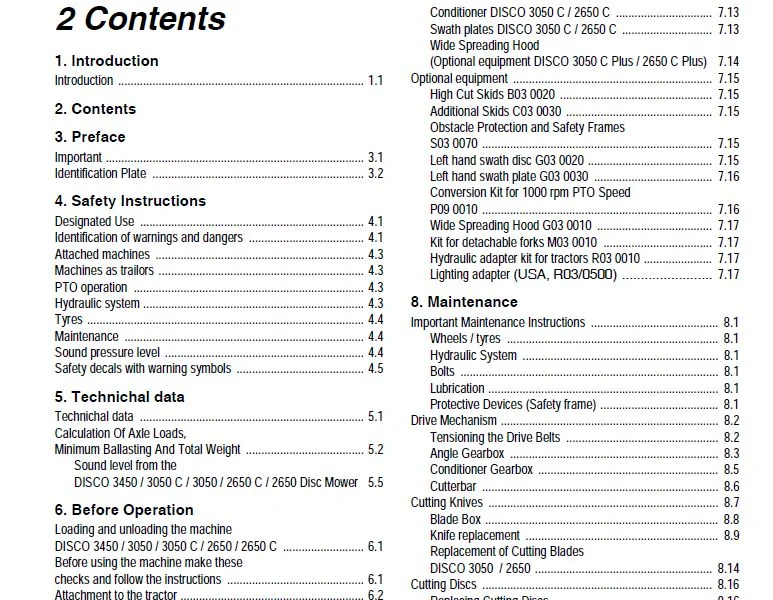

TABLE OF CONTENTS:

CLAAS DISCO 3450 PLUS 3050 3050 PLUS 3050 C PLUS 2650 2650 PLUS 2650 C PLUS Operator’s Manual – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
3 Preface
Important 31
Identification Plate 32
4 Safety Instructions
Designated Use 41
Identification of warnings and dangers 41
Attached machines 43
Machines as trailors 43
PTO operation 43
Hydraulic system 43
Tyres 44
Maintenance 44
Sound pressure level 44
Safety decals with warning symbols 45
5 Technichal data
Technichal data 51
Calculation Of Axle Loads,
Minimum Ballasting And Total Weight 52
Sound level from the
DISCO 3450 / 3050 C / 3050 / 2650 C / 2650 Disc Mower 55
6 Before Operation
Loading and unloading the machine
DISCO 3450 / 3050 / 3050 C / 2650 / 2650 C 61
Before using the machine make these
checks and follow the instructions 61
Attachment to the tractor 62
Hitch Pins 62
Checking the PTO Shaft for Correct Length 63
Fitting the PTO Drive Shaft 64
Hydraulic Connection 65
Prob Stand 67
Detaching the machine 67
Prior to Transport 68
Transport on Public Roads 610
7 Operation
Operation 71
Working Position 71
Safety Frame 72
Transport Position 72
Adjusting the Cutting Height 73
Overload Safeguard 74
Mowing 75
Flotation Springs 79
Left hand swath disc
(option for DISCO 2650 Plus / 2650) 712
Left hand swath plate
(option for DISCO 3050 Plus / 3050) 713
Conditioner DISCO 3050 C / 2650 C 713
Swath plates DISCO 3050 C / 2650 C 713
Wide Spreading Hood
(Optional equipment DISCO 3050 C Plus / 2650 C Plus) 714
Optional equipment 715
High Cut Skids B03 0020 715
Additional Skids C03 0030 715
Obstacle Protection and Safety Frames
S03 0070 715
Left hand swath disc G03 0020 715
Left hand swath plate G03 0030 716
Conversion Kit for 1000 rpm PTO Speed
P09 0010 716
Wide Spreading Hood G03 0010 717
Kit for detachable forks M03 0010 717
Hydraulic adapter kit for tractors R03 0010 717
Lighting adapter (USA, R03/0500) 717
8 Maintenance
Important Maintenance Instructions 81
Wheels / tyres 81
Hydraulic System 81
Bolts 81
Lubrication 81
Protective Devices (Safety frame) 81
Drive Mechanism 82
Tensioning the Drive Belts 82
Angle Gearbox 83
Conditioner Gearbox 85
Cutterbar 86
Cutting Knives 87
Blade Box 88
Knife replacement 89
Replacement of Cutting Blades
DISCO 3050 / 2650 814
Cutting Discs 816
Replacing Cutting Discs 816
Cutterbar Flotation System 817
Conditioner Tines 818
Installation and Removal of the Tines 818
PTO Drive Shaft 818
Hydraulics 819
Hydraulic Hose Lines 819
Hydraulic cylinder 819
Fasteners 820
Bolts and Nuts 820
Winter Storage Instructions 820
Problems 821
9 Lubrication Chart
Safety Precaution 91
Lubricants 91
Lubrication 91

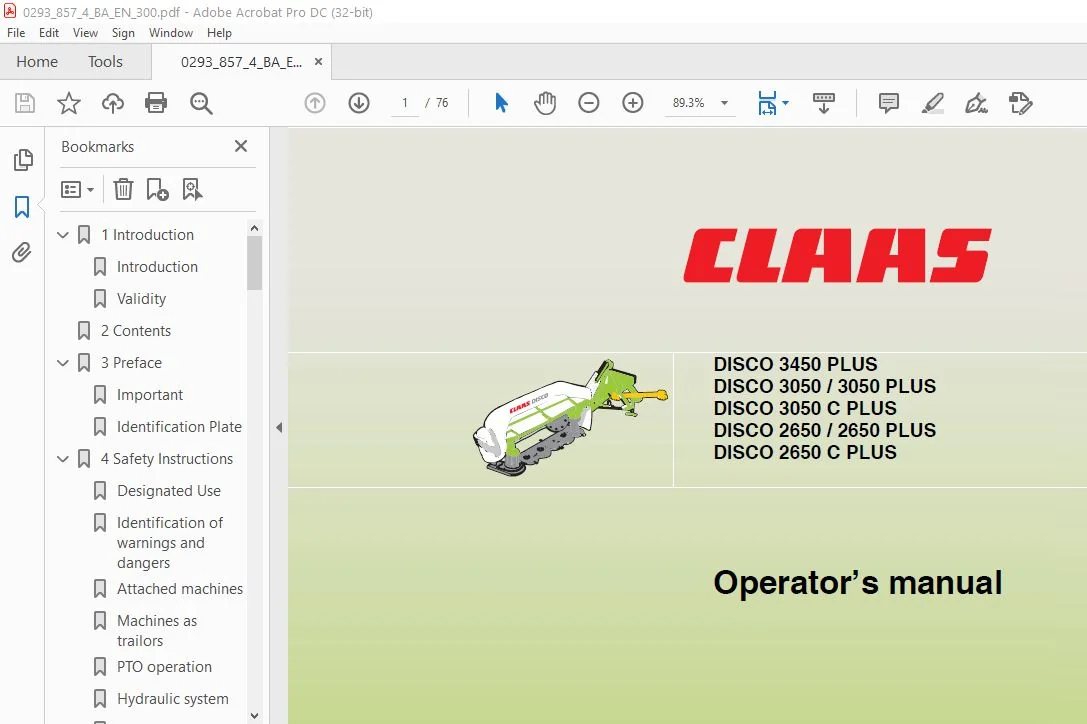

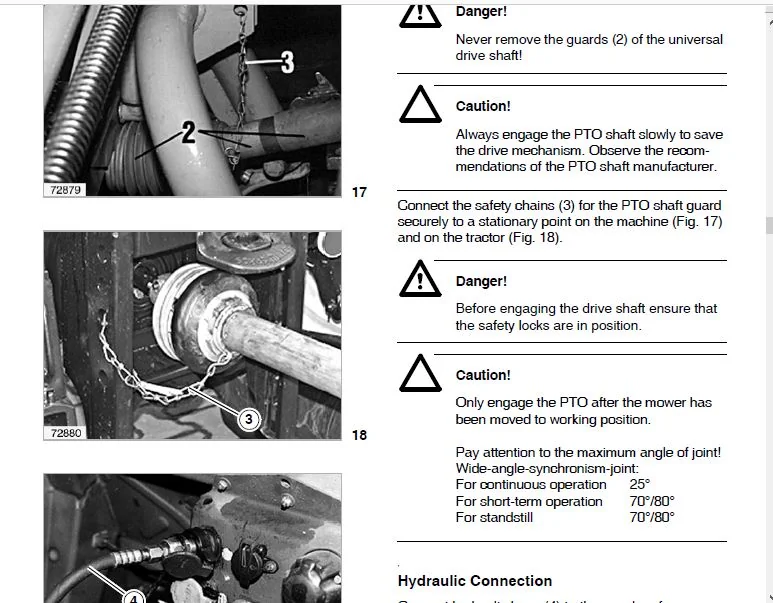

IMAGES PREVIEW OF THE MANUAL:
