CLAAS DISCO 3500 C Contour / RC Contour DISCO 3100 C Contour / RC Contour DISCO 2700 C Contour / RC Contour Assembly intructions Manual_DE_EN_FR_IT

Description

CLAAS DISCO 3500 C Contour / RC Contour DISCO 3100 C Contour / RC Contour DISCO 2700 C Contour / RC Contour Assembly intructions Manual_DE_EN_FR_IT

DESCRIPTION:

CLAAS DISCO 3500 C Contour / RC Contour DISCO 3100 C Contour / RC Contour DISCO 2700 C Contour / RC Contour Assembly intructions Manual_DE_EN_FR_IT

INTRODUCTION

This manual describes the safe and time-saving work procedure for assembly of the machine. Please read this manual thoroughly before starting work! Pay particular attention to the section “General Information” and the information on dangers in the operator’s manual. The following machines can be assembled:

Disc mower:
DISCO 3500 C Contour
Type 998
from serial no. 99801001
DISCO 3500 RC Contour
Type 998
from serial no. 99801001
DISCO 3100 C Contour
Type 997
from serial no. 99701001
DISCO 3100 RC Contour
Type 997
from serial no. 99701001
DISCO 2700 C Contour
Type 996
from serial no. 99601001
DISCO 2700 RC Contour
Type 996
from serial no. 99601001

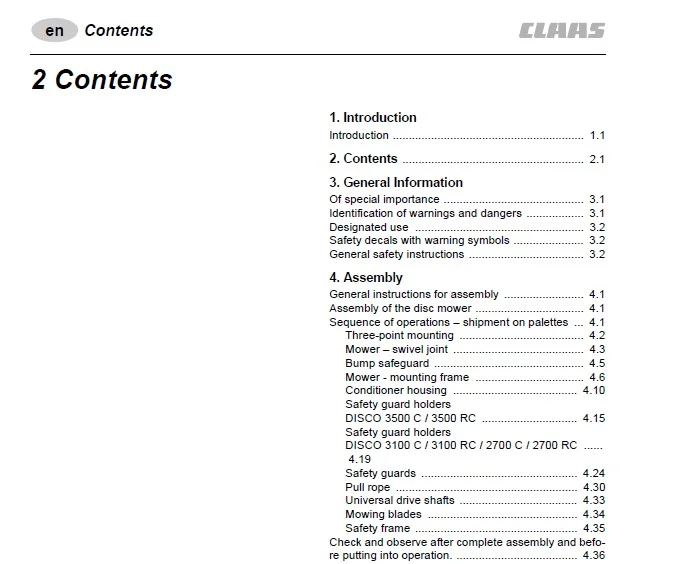

TABLE OF CONTENTS:

CLAAS DISCO 3500 C Contour / RC Contour DISCO 3100 C Contour / RC Contour DISCO 2700 C Contour / RC Contour Assembly intructions Manual_DE_EN_FR_IT

1 Introduction
Introduction 11
2 Contents 21
3 General Information
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Assembly
General instructions for assembly 41
Assembly of the disc mower 41
Sequence of operations – shipment on palettes 41
Three-point mounting 42
Mower – swivel joint 43
Bump safeguard 45
Mower – mounting frame 46
Conditioner housing 410

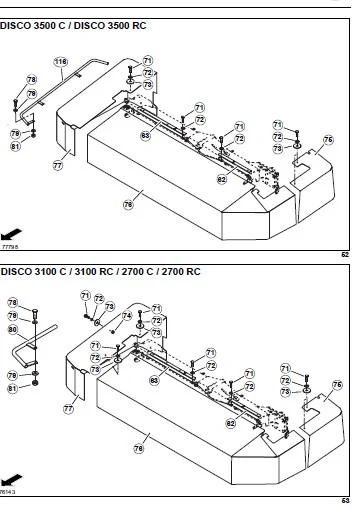

Safety guard holders
DISCO 3500 C / 3500 RC 415
Safety guard holders
DISCO 3100 C / 3100 RC / 2700 C / 2700 RC
419
Safety guards 424
Pull rope 430
Universal drive shafts 433
Mowing blades 434
Safety frame 435
Check and observe after complete assembly and before
putting into operation 436

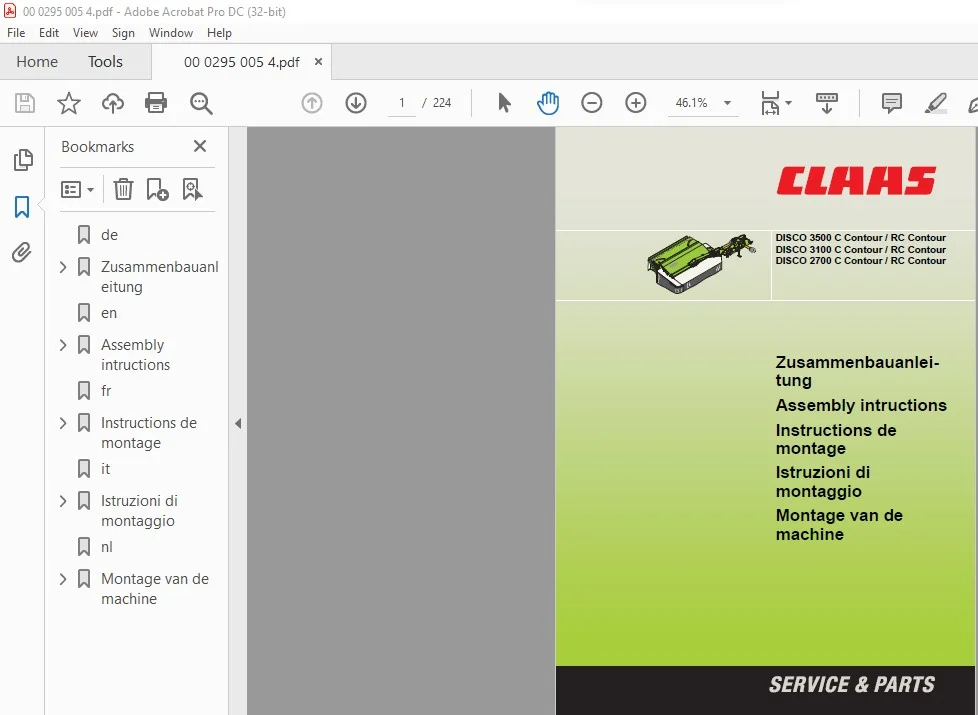

IMAGES PREVIEW OF THE MANUAL:
