CLAAS DISCO 3900 Contour DISCO 3500 Contour DISCO 3100 Contour DISCO 2700 Contour Assembly intructions Manual

Description

CLAAS DISCO 3900 Contour DISCO 3500 Contour DISCO 3100 Contour DISCO 2700 Contour Assembly intructions Manual

DESCRIPTION:

CLAAS DISCO 3900 Contour DISCO 3500 Contour DISCO 3100 Contour DISCO 2700 Contour Assembly Intructions Manual

INTRODUCTION

This manual describes the safe and time-saving work procedure for assembly of the machine. Please read this manual thoroughly before starting work! Pay particular attention to the section “General Information” and the information on dangers in the operator’s manual.

Disc mower:
DISCO 3900 Contour
Type 999
from serial no. 99901733
DISCO 3500 Contour
Type 619
from serial no. 61901001
DISCO 3100 Contour
Type 618
from serial no. 61801001
DISCO 2700 Contour
Type 617
from serial no. 61701001
TABLE OF CONTENTS:

CLAAS DISCO 3900 Contour DISCO 3500 Contour DISCO 3100 Contour DISCO 2700 Contour Assembly Intructions Manual

1 Introduction
Introduction 11
2 Contents 21
3 General Information
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Assembly
General instructions for assembly 41
Assembly of the disc mower 41
Sequence of operations – shipment on palettes 42
Three point mounting 42
Mower – mounting frame 45
Protective cover holders / protective covers
DISCO 3500 Contour / 3100 Contour /
2700 Contour 411
Protective cover holders / protective covers
DISCO 3900 Contour 419
Pull ropes 429
Drive shafts 431
Mowing blades 432
Sequence of operation – delivery in crates 433
Three point mounting 433
Mower – swivel joint 434
Break-back device 436
Mower – mounting frame 437
After complete assembly, and before
commissioning, check and observe! 438

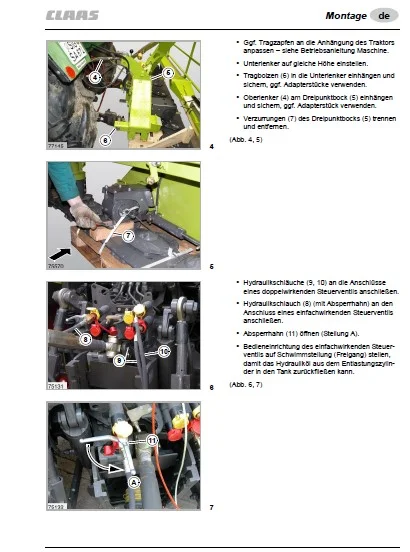

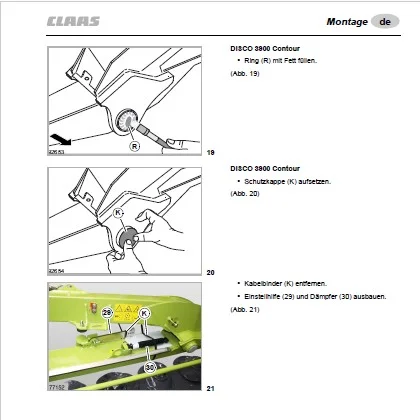

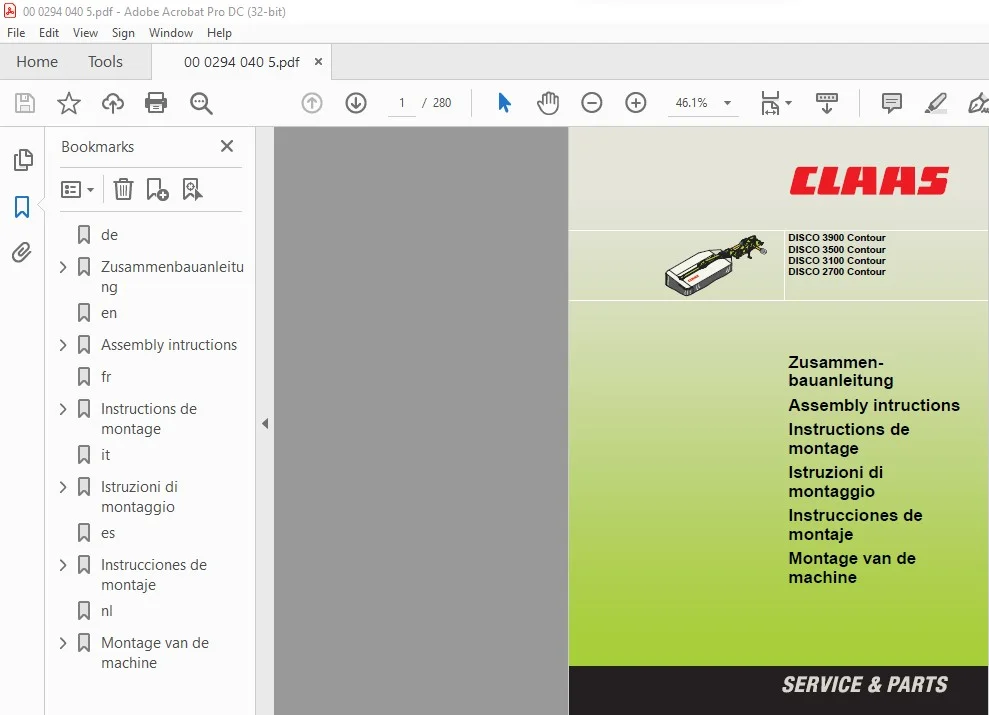

IMAGES PREVIEW OF THE MANUAL:
