CLAAS DOMINATOR 108 VX – 88 VX Air Conditioner Fitting Instructions Manual DE_EN_FR

Description

CLAAS DOMINATOR 108 VX – 88 VX Air Conditioner Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS DOMINATOR 108 VX – 88 VX Air Conditioner Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION:

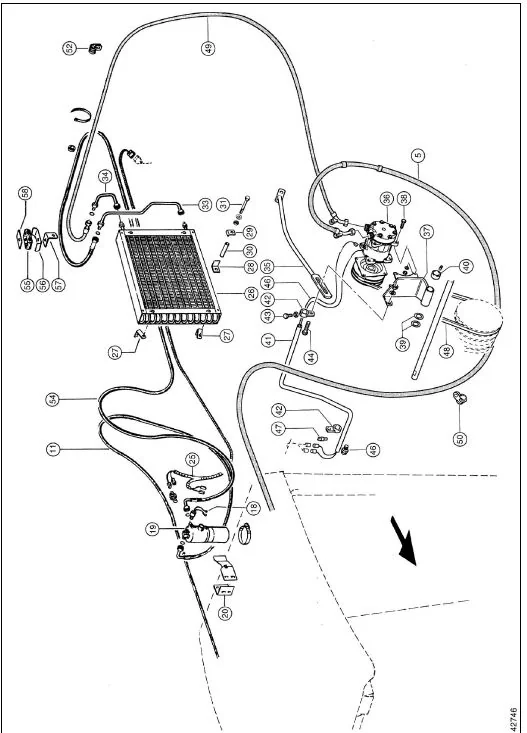

The present manual provides instructions for fitting the air conditioner to CLAAS DOMINATOR 108 VX – 88 VX combine-harvesters. The shipping package is shown on page 6. Each part has a number.

• The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers.
• Text and pictures apply in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

TABLE OF CONTENTS:

CLAAS DOMINATOR 108 VX – 88 VX Air Conditioner Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Air conditioner/heating box 1
2 Hose 12 x 18 x 3000 2
3 Cable ring C 21 – 28 x 38 x 1 5 2
4 Edge protection 0 4 mm 1
5 Suction line DN 16 1
6 Pipe clamp Rsgu 1 24/20 1
7 Spacer ring 10 x 20 x 10 1
8 Hexagon bolt M 8 x 25 DIN 933 1
Contact washer A 8 1
9 Cable ring C 10 – 18 x 30 x 1 5 2
10 Edge protection 0 4 mm 1
11 Pressure line DN 8 1
12 Pipe clamp Rsgu 1 15/20 1
13 Spacer ring 10 x 20 x 10 1
14 Hexagon bolt M 6 x 25 Din 933 1
Contact washer B 6 1
15 Strip profile 40 x 2 x 500 mm long 1
16 Insulating strip SW 50 x 3 x 950 long 1
17 Turn switch 1
Turn switch insert 1
18 High-pressure switch 1
19 Tank 1
20 Mounting bracket 2 5 x 75 x 65 1
21 Hexagon bolt M 6 x 20 – 8 8 2
Contact washer B 6 2
Hexagon nut M 6 2
22 Mushroom head bolt M 6 x 16 2
Contact washer B 6 2
Hexagon nut M 6 2
23 Cable band 3 5 x 142 1
24 Cable ring C 10 – 18 x 30 x 1 5 1
25 Air conditioner wiring loom 1
26 Condenser 1
27 Bracket 25 x 5 x 10 4
28 Mounting bracket 3 x 35 x 15 1
29 Clamp 2 x 20 x 29 1
30 Spacer sleeve D 14 x 1 5 x 89 1
31 Hexagon bolt M 6 x 100 1
Contact washer B 6 1
Hexagon nut M 6 1
32 Hexagon bolt M 8 x 16 – 8 8 4
Contact washer B 8 4
Hexagon nut M 8 4
33 Pipe 1
34 Pipe 1
35 Brace 1
36 Compressor 1
37 Compressor bracket 1
38 Hexagon bolt M 8 x 30 – 8 8 4
Contact washer A 8 4
Hexagon nut M 8 4
39 Washers 30 x 42 x 1 12
40 Adjusting ring A 30 E 8 x 45 x 15 / M 10 2
Set screw M 10 x 8 2
41 Protective tube R 18 x 1 5 1130 1
42 Bracket 2
Anzahl
43 Hexagon bolt M 8 x 25 RS 2
Hexagon nut M 8 2
44 Hexagon bolt M 10 x 40 1
Contact washer A 8 1
Hexagon nut M 8 1
45 Wiring loom 2 5 mm² x 1630 mm long 1
46 Twist joint nipple, open, PG 9 2
47 Plug housing, single-pole 2
48 V-belt XPA 1060 LW 1
49 Hose 1
50 Pipe clamp Rsgu 1 30/25 2
51 Hexagon bolt M 8 x 20 2
Contact washer A 8 2
Hexagon nut M 8 2
52 Pipe clamp Rsgu 1 15/25 2
53 Hexagon bolt M 6 x 20 2
Contact washer B 6 2
54 Hose 1
55 Rubber bearing 15/10 1
56 Mounting clamp BSS 2 x 22 x 25 x 3 1
57 Mounting bracket 30 x 3 x 62 1
58 Mating plate 3 x 25 x 46 1
59 Hexagon bolt M 8 x 40 1
Contact washer B 8 1
Hexagon nut VM 8 1
60 Remote control relay, 12 V 1

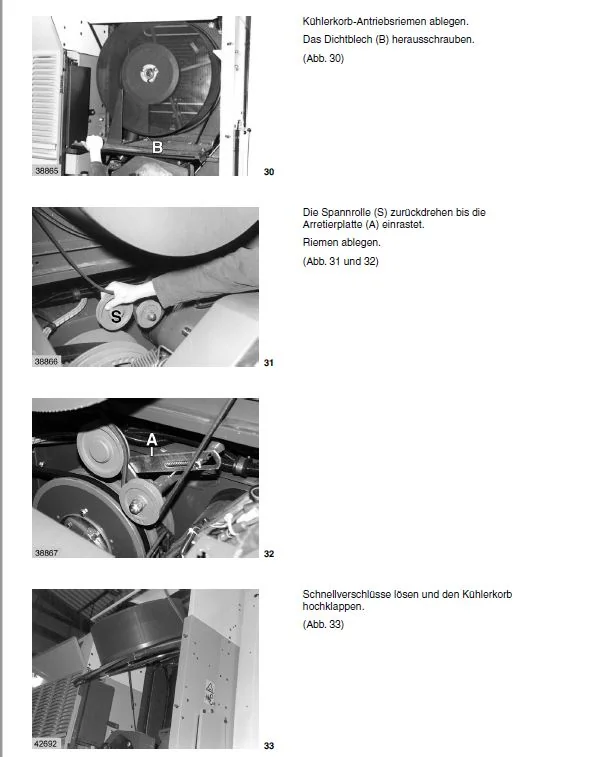

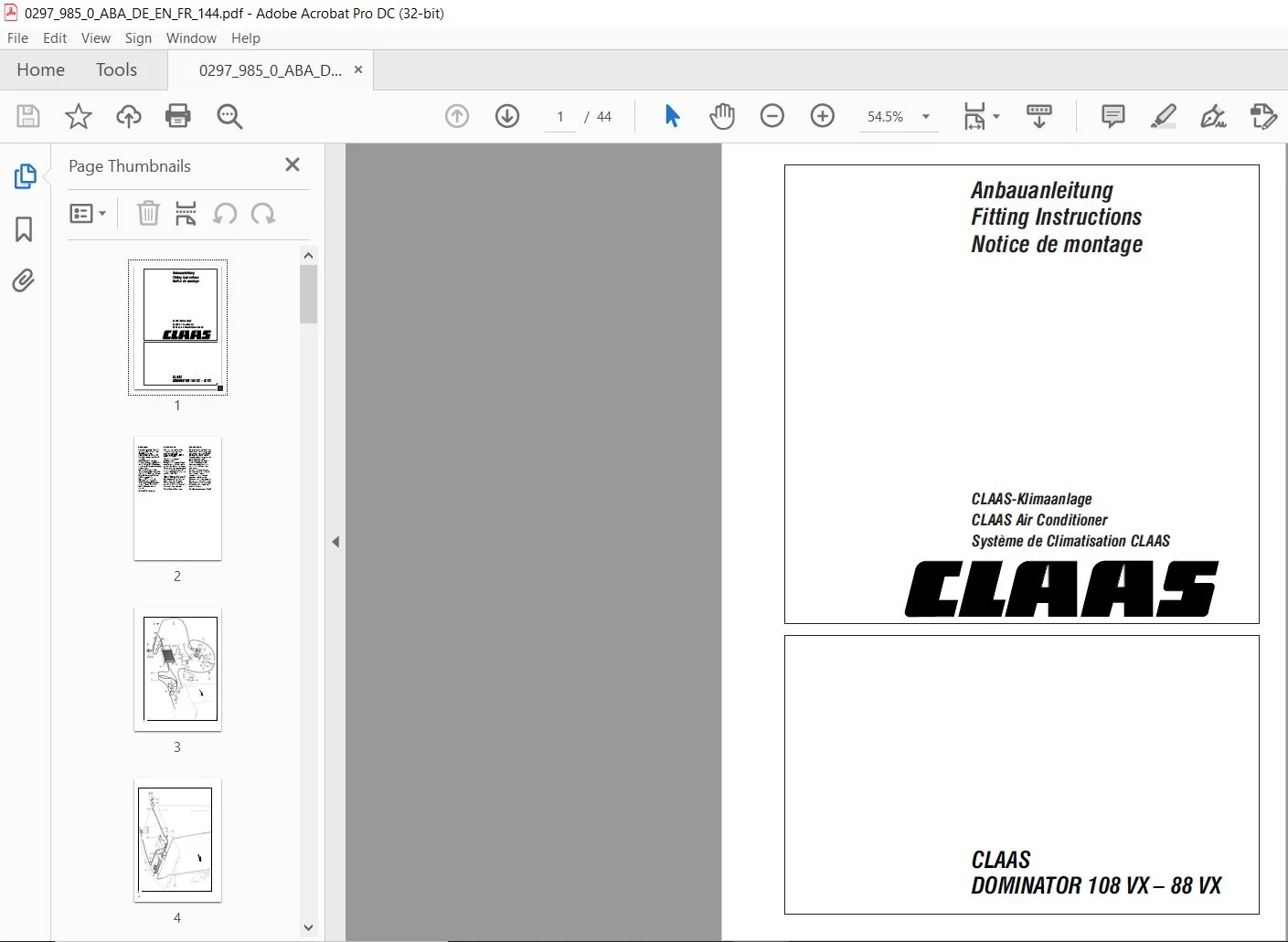

IMAGES PREVIEW OF THE MANUAL:
