Introduction

This manual contains instructions regarding installation and operation of the compressor-type air conditioner for the combine series DOMINATOR 218 MEGA – 78 CLASSIC and for the forager series JAGUAR 695 MEGA – 685 SL. Texts and pictures apply equally to all models. Where differences between the various models exist this is specifically referred to in the text. The complete shipping package is shown on page 1, the items are listed in the order in which they are to be assembled. The illustrations (1 and 2) are also very useful for reference when fitting the unit to the machine.

TABLE OF CONTENT:

CLAAS DOMINATOR 218 MEGA- 78 Classic JAGUAR 695 MEGA – 685 SL Air Conditioning Fitting instructions Manual – PDF DOWNLOAD

1 Screen 1
2 Filter mat 1
3 Blind rivet 4 x 762 13
4 Washer 43 x 9 x 05 13
5 Grill 1
6 A/C switch 1
7 Knob 1
8 Drain pan 1
9 Silicone sealant, grey 1
10 Flexible conduit 1
11 Dust cap 2
12 Pipe clamp 15/20 2
13 Hex screw M 8 x 25 DIN 931 – 88 2
Hex nut M 8 2
Contact washer B 8 2
14 Evaporator 1
15 Bracket 1
16 Hex bolt M 6 x 12 DIN 933 – 88 2
Hex nut M 6 2
Contact washer B 6 2
17 Foam rubber strip 1
18 Rubber grommet 18/21 2
19 Rubber grommet 10/20 4
20 High pressure hose 1
21 Pipe clamp 10/15 ** 4
22 Mushroom head screw M 6 x 35 ** 1
Hex nut M 6 1
Contact washer A 6 1
23 Mushroom head screw M 6 x 25 ** 1
Hex nut M 6 1
Contact washer A 6 1
24 Hex hd self-tapping screw 48 x 16 ** 2
25 Low pressure hose 1
26 Mushroom head screw M 8 x 20 ** 2
Hex nut M 8 2
Contact washer S 8 2
27 PVC spacer tube * 2
28 Pipe clamp 30/25 * 1
29 Insulating tape 1
30 Beading
Forage Harvesters approx 100 mm 2
Combines approx 800 mm 1
31 Cable strap 14
* Combines
** Forage harvesters
Parts to be mounted to base machine
Combines
Quantity
32 V-belt pulley (not all machines) 1
33 Socket head cap screw M10 x 70 DIN 912 – 88 3
Contact washer A 10 3
34 Shaft 550 mm DO 218 MEGA – 88 CLASSIC 1
Shaft 490 mm DO 78 CLASSIC 1
35 Compressor assembly 1
36 Set collar 2
37 Shim 30 X 42 X 1 12
38 Tensioner arm 1
39 Holder 2
40 Hex bolt M 8 x 20 DIN 933 – 88 7
Hex nut M 8 7
Contact washer B 8 7
41 Spacer, Perkins V 8540 1
42 Conduit 1
43 Plastic screw cap 2
44 Hex bolt M 6 x 30 1
Hex nut M 6 1
Contact washer A 6 2
45 Single-pin round connector 2
46 Hex bolt M 8 x 25 RS 2
Hex nut M 8
47 Bracket, Perkins in-line engine 1
48 Bracket 6
49 Hex bolt M 8 x 16 DIN 933- 88 5
Hex nut M 8 5
Contact washer B 8 5
50 Condenser 1
51 Hex bolt M 6 x 12 DIN 933- 88 8
Hex nut M 6 8
Contact washer B 6 8
52 Line 1
53 Line 1
54 Bracket 3 x 35 x 15 * 1
55 Clamping piece 2 x 20 x 29 * 1
56 Spacer tube 14 x 15 x 89 * 1
57 Hex bolt M 6 x 100 DIN 931 – 88 * 1
Hex nut M 6 1
Contact washer B 6 1
58 Bracket 30 x 3 x 62 1
59 Clamp 1
60 Rubber buffer 15/10 1
61 Mating plate 1
62 Hex bolt M 8 x 40 DIN 931 – 88 1
Hex nut M 8 1
Contact washer B 8 1
63 Rubber grommet 18 x 30 x 15 2
64 High pressure hose 1
65 Bracket 1
66 Filter receiver drier 1
67 High pressure switch 1
68 Wiring loom 1
69 Pipe clamp 1
70 High pressure hose 1
71 Pipe clamp 15/20 6
72 Hose support 3
73 Mushroom head screw M 6 x 12 1
Hex nut M 6 1
Contact washer S 6 1
74 Hex bolt M 6 x 30 DIN 931 – 88 2
Hex nut M 6 2
Contact washer S 6 2
75 Spacer 4
76 Hex bolt M 6 x 35 DIN 931 – 88 4
Hex nut M 6 4
Contact washer A 6 4
77 Relay 2
2

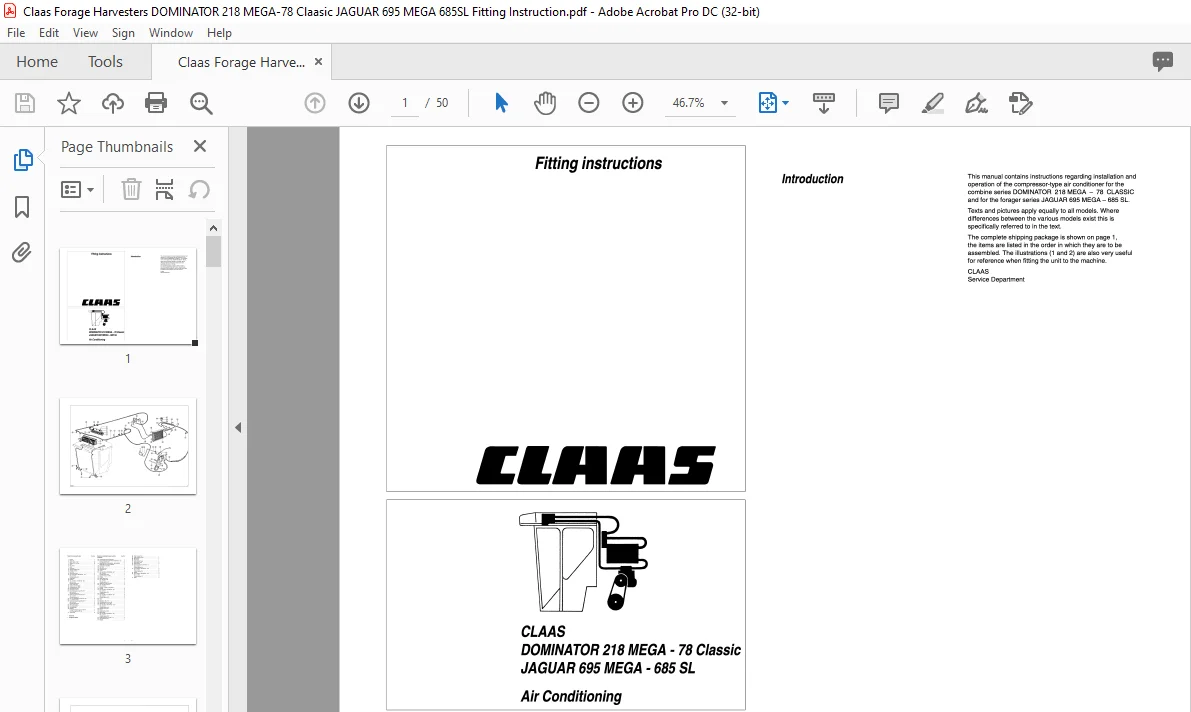

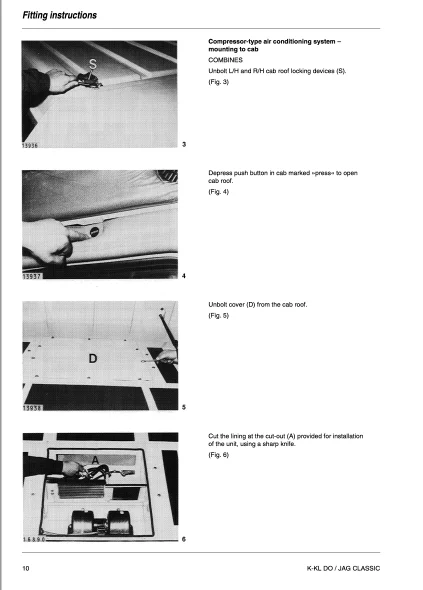

IMAGES PREVIEW OF THE MANUAL:
