CLAAS DOMINATOR 48 – 68 Technical Systems Electric System Manual – PDF DOWNLOAD

Description

CLAAS DOMINATOR 48 – 68 Technical Systems Electric System Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS DOMINATOR 48 – 68 Technical Systems Electric System Manual – PDF DOWNLOAD

Description of function:

Operational readiness of diesel injection After switching on the ignition, the electronic engine control module A15 receives a plus signal at pin 70. After the signal is received, the electronic engine control module A15 performs a self-test of the engine electronics. If this self-test is successful, the electronic engine control module A15 actuates relay K43 – the diesel injection is ready for operation.

Cold start

When starting the diesel engine, the cold start device (R15) is actuated automatically by the electronic engine control module A15. This actuation depends on external parameters (e.g. outside temperature). The associated sensors are included in the engine wiring loom (see Caterpillar) Operation of the cold start device is indicated by indicator light H22 (see diagram 3b).

Engine speed adjustment

By actuating switch S35, the diesel engine speed is changed from idle speed to operating speed.

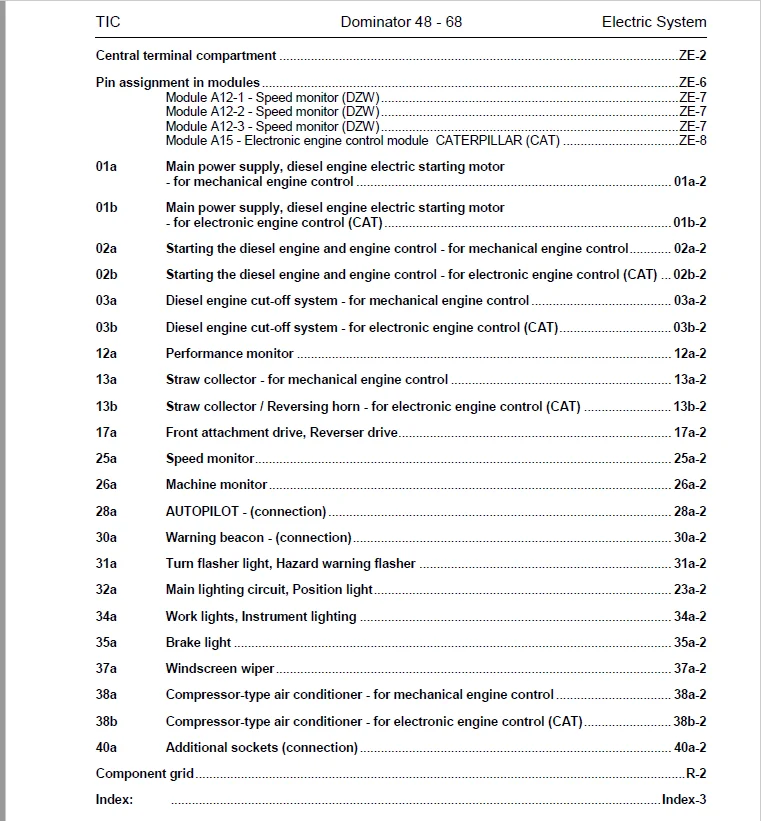

TABLE OF CONTENTS:

CLAAS DOMINATOR 48 – 68 Technical Systems Electric System Manual – PDF DOWNLOAD

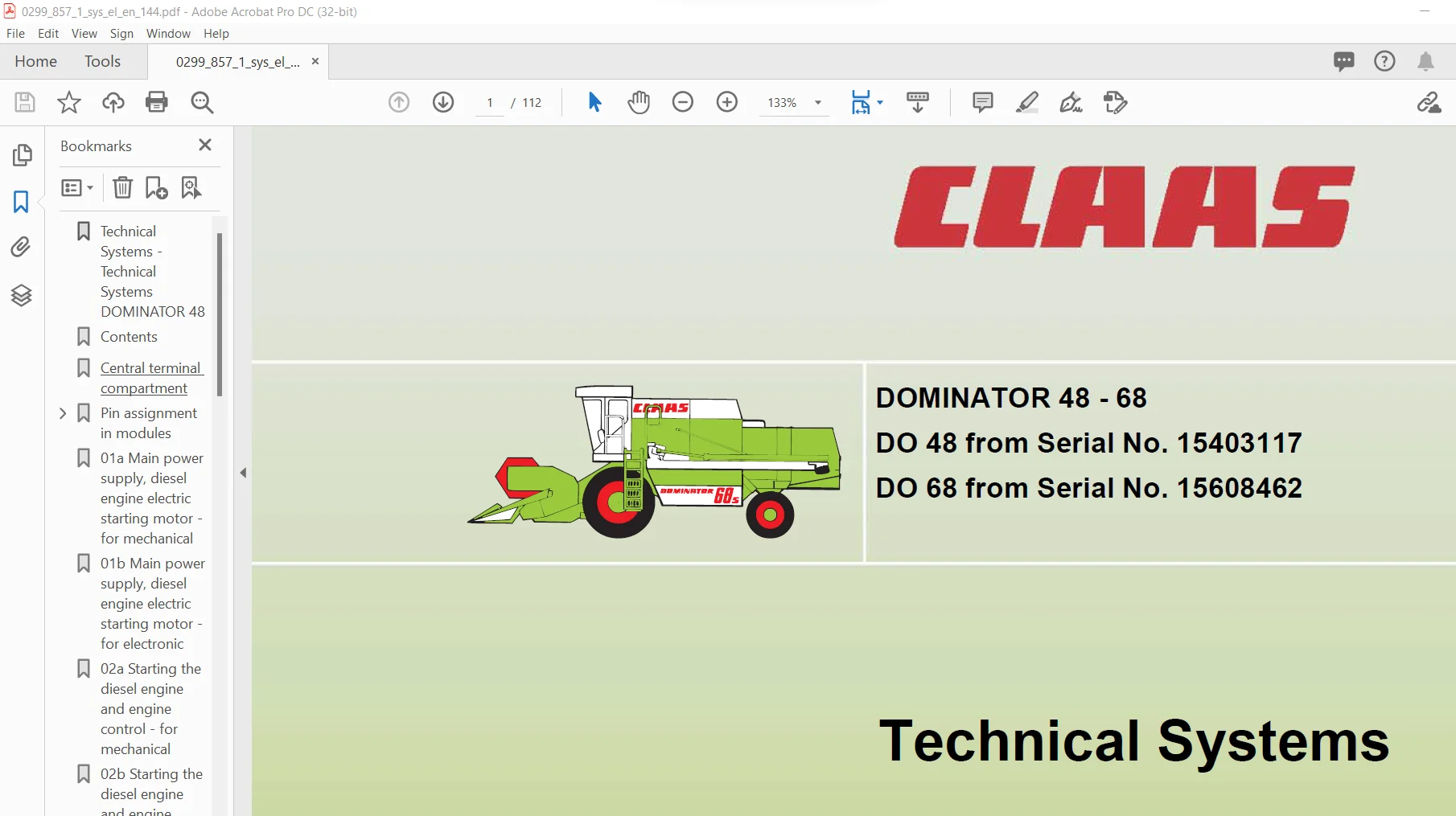

Technical Systems – Technical Systems DOMINATOR 48 – 68, DO 48 from Serial No 15403117, DO 68 from Serial No 15608462 1
Contents 5
Central terminal compartment 8
Pin assignment in modules 12
Module A12-1 – Speed monitor (DZW) 13
Module A12-2 – Speed monitor (DZW) 13
Module A12-3 – Speed monitor (DZW) 13
Module A15 – Electronic engine control module CATERPILLAR (CAT) 14
01a Main power supply, diesel engine electric starting motor – for mechanical engine control 16
01b Main power supply, diesel engine electric starting motor – for electronic engine control (CAT) 20
02a Starting the diesel engine and engine control – for mechanical engine control 24
02b Starting the diesel engine and engine control – for electronic engine control (CAT) 28
03a Diesel engine cut-off system – for mechanical engine control 32
03b Diesel engine cut-off system – for electronic engine control (CAT) 36
12a Performance monitor 40
13a Straw collector – for mechanical engine control 44
13b Straw collector / Reversing horn – for electronic engine control (CAT) 48
17a Front attachment drive, Reverser drive 52
25a Speed monitor 56
26a Machine monitor 60
28a AUTOPILOT – (connection) 64
30a Warning beacon – (connection) 68
31a Turn flasher light, Hazard warning flasher 72
32a Main lighting circuit, Position light 76

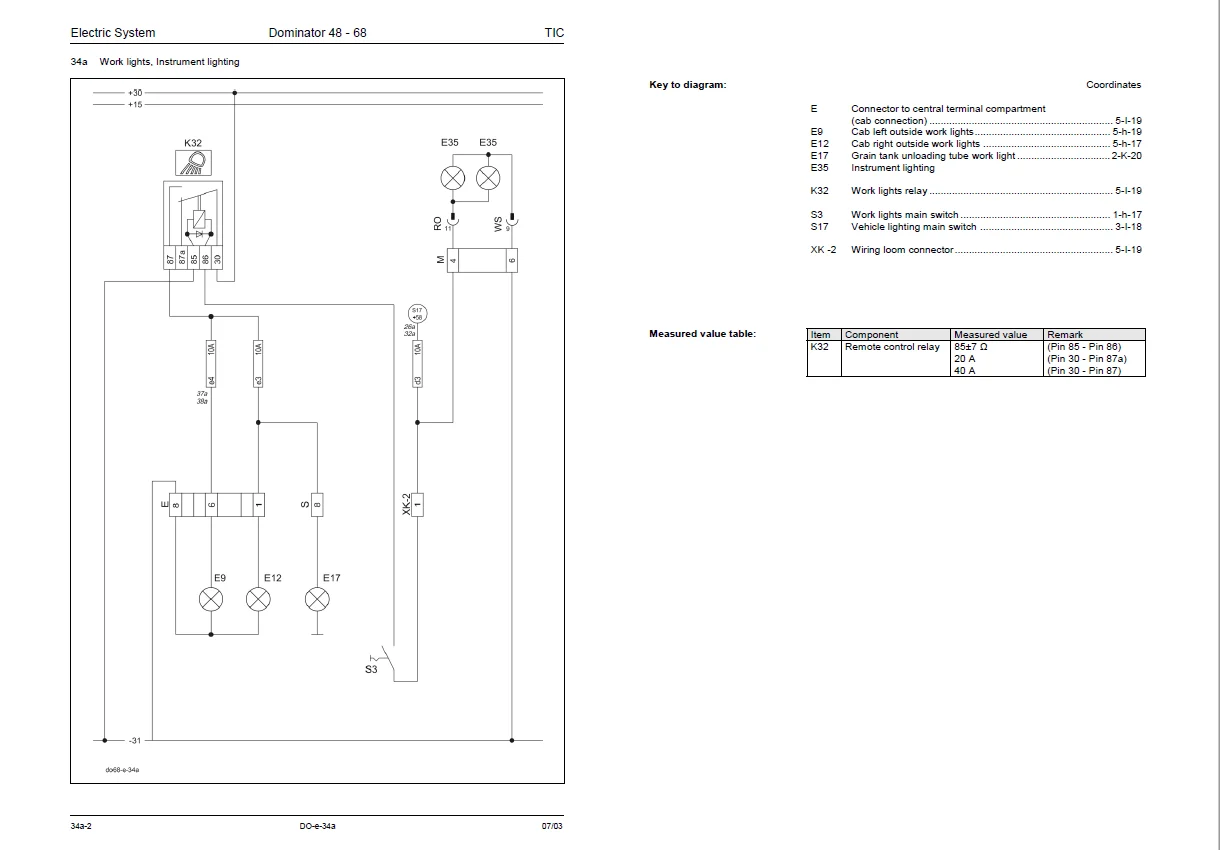

34a Work lights, Instrument lighting 80
35a Brake light 84
37a Windscreen wiper 88
38a Compressor-type air conditioner – for mechanical engine control 92
38b Compressor-type air conditioner – for electronic engine control (CAT) 96
40a Additional sockets (connection)100
Component grid105
Index109
0299 8571 112

IMAGES PREVIEW OF THE MANUAL:

Questions? Email us: [email protected]

https://vimeo.com/676537785

CLAAS DOMINATOR 48 – 68 TECHNICAL SYSTEMS ELECTRIC SYSTEM MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
