CLAAS DOMINATOR 68 5 -R – RICE AND EQUIPMENT Fitting and Operating Instructions Manual_DE_EN_FR

Description

CLAAS DOMINATOR 68 5 -R – RICE AND EQUIPMENT Fitting and Operating Instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS DOMINATOR 68 5 -R – RICE AND EQUIPMENT Fitting and Operating Instructions Manual_DE_EN_FR

INTRODUCTION

These fitting instructions show the attachment of the track roller units as well as the conversion of the combine from rice threshing to grain threshing and from grain threshing to rice threshing. These fitting instructions are valid only in conjunction with the operating manual for the DOMINATOR 68 S. The parts of the track roller units are listed on page 6 according to the sequence of installation. The illustration is intended at the same time as an aid to installation.
TABLE OF CONTENTS:

CLAAS DOMINATOR 68 5 -R – RICE AND EQUIPMENT Fitting and Operating Instructions Manual_DE_EN_FR

Shipping package — tracks Quantity
1Heightextension 1
2 BushDSOx33 4
3 Washer 4
4 Hexbolt
M18x70DIN931-88 4
Self-IockingnutVM1BDlN980 4
6 Hexbolt
M16x4SDIN933-88 1
ContactwasherA16 1
7 Steeringstop,L/H 1
Steeringstop,Fi/H 1
8 Hexbolt
M14x1SODIN931-88- 4
ContactwasherA14 8
HexnutM14DlN934 4
9 Hexbolt
M12x25DIN933-88 4
ContactwasherA12 8
HexnutM12DlN934-88 4
10 Coverplate 2
11 Hexbolt
M10x40DIN933—88 6
ContactwasherA1O 6
12 Support,L/H 1
Support,R/H 1
13 Hexbolt
M16x45DIN933-88 4
ContactwasherA16 4
14 Axle 1
15 Hexbolt
15 Hexbolt
M20x14ODIN931-88 2
Hexnut
M20DIN934-88 2
Lockwasher20 2
16 Hexbolt
M18x2x650lN960-88 12
Lockwasher18 12
Washer185x37x4 12
17 Hexbolt
M16x35DlN933-88 4
ContactwasherA16 24
18 Stabilizer,L/H 1
Stabilizer,R/H 1
19 Hexbolt
M16x3SDIN933-88 12
Hexnut
M1SD|N934 12
ContactwasherA16 24
20 Hexbolt
M12x350IN933-88 2
Washer13x26x6 2
Self-IockingnutVM12DIN980 2
21 Hose 1
22 Drivesprocket 2
23 Locatingring 4
24 Stubaxle 2
25 Hexbolt
M20x800lN931-88 4
Washer 4
Self-IockingnutVM 20 DIN980-88 4
26 Hexbolt
M12xeoDlN933-88 4
Self-locking nut
VM12DIN980-88 4
27 Trackrollerunit,UH 1
Trackrollerunit,R/H1
28 Washer 20
29 0-Ring114x534-N 4
30 RingD1524x35 2
31 PInD18x184 2
32 Splitpin63x28 4
33 Chain 2
34 Endtrackshoe 2
35 Endlinkbolt 8
Quick mounting kit
(optional equipment)
36 Threadedcone 4
37 Support 2
38 Turn buckle 2
39 Hexbolt
M16x650IN931-88 4
Hexnut
M1GDIN934-88 4
40 HexboltM20x9ODlN933-88 4

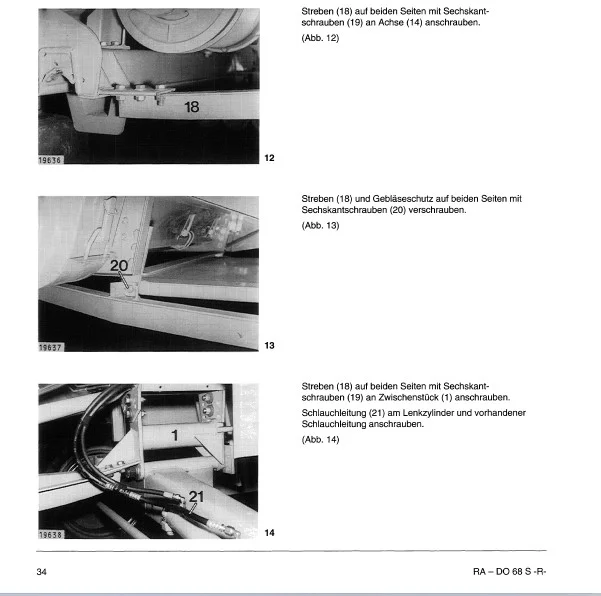

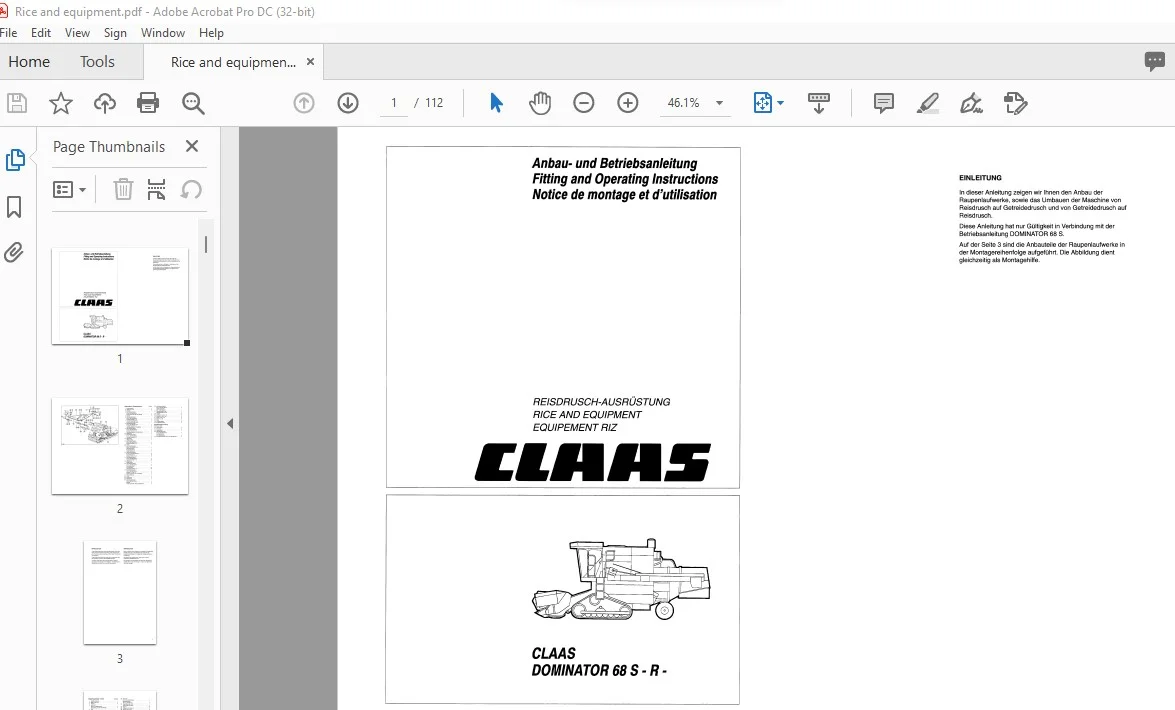

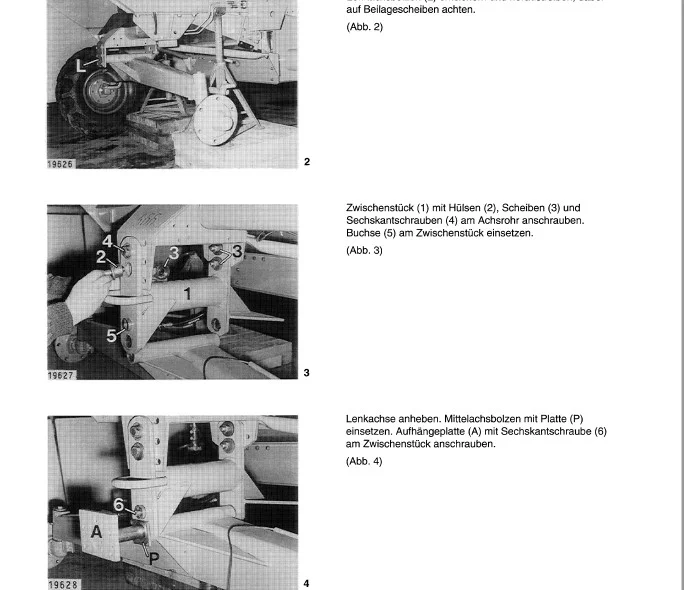

IMAGES PREVIEW OF THE MANUAL:

CLAAS DOMINATOR 68 5 -R – RICE AND EQUIPMENT FITTING AND OPERATING INSTRUCTIONS MANUAL_DE_EN_FR:

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.M
