Claas Dominator 68 S-R Fitting & Operating Instructions Manual FR_GR_EN – PDF DOWNLOAD

Description

Claas Dominator 68 S-R Fitting & Operating Instructions Manual FR_GR_EN – PDF DOWNLOAD

DESCRIPTION:

Claas Dominator 68 S-R Fitting & Operating Instructions Manual FR_GR_EN – PDF DOWNLOAD

INTRODUCTION:

• These fitting instructions show the attachment of the track roller units as well as the conversion of the combine from rice threshing to grain threshing and from grain threshing to rice threshing.
• These fitting instructions are valid only in conjunction with the operating manual for the DOMINATOR 68 S. The parts of the track roller units are listed on page 6 according to the sequence of installation. The illustration is intended at the same time as an aid to installation.

TABLE OF CONTENTS:

Claas Dominator 68 S-R Fitting & Operating Instructions Manual FR_GR_EN – PDF DOWNLOAD

1 Height extension
2 Bush D 50 x 33
Washer
Hex bolt
M 18 x 70 DIN 931-8 8
Self-locking nut VM 18 DIN 980
5 Bush
6 Hex bolt
M 16 x 45 DIN 933-8 8
Contact washer A 16
7 Steering stop, UH
Steering stop, R/H
8 Hex bolt
M 14 x 150 DIN 931-8 8 · 4
Contact washer A 14
Hex nut M 14 DIN 934
9 Hex bolt
M 12 x 25 DIN 933-8 8 4
Contact washer A 12 8
Hex nut M 12 DIN 934-8 8 4
1 0 Cover plate 2
11 Hex bolt
M 10 x 40 DIN 933-8 8
Contact washer A 10
12 Support, UH
Support, R/H 1
13 Hex bolt
M 16 x 45 DIN 933-8 8 4
Contact washer A 16 4
14 Axle 1
15 Hex bolt
M 20 x 140 DIN 931-8 8 2
Hex nut
M 20 DIN 934-8 8 2
Lock washer 20 2
16 Hex bolt
M 18 x 2 x 65 DIN 960-8 8 12
Lock washer 18 12
Washer 18 5 x 37 x 4 12
17 Hex bolt
M 16 x 35 DIN 933-8 8 4
Contact washer A 16 24
18 Stabilizer, UH 1
Stabilizer, R/H 1
19 Hex bolt
M 16 x 35 DIN 933-8 8 12
Hex nut
M16DIN934 12
Contact washer A 16 24
20 Hex bolt
M 12 x 35 DIN 933-8 8 2
Washer 13 x 26 x 6 2
Self-locking nut VM 12 DIN 980 2
21 Hose 1
22 Drive sprocket 2
23 Locating ring 4
24 Stub axle 2
25 Hex bolt
M 20 x 80 DIN 931-8 8 4
Washer 4
Self-locking nut VM 20 DIN 980-8 8 : 4
26 Hex bolt
M 12 x 60 DIN 933-8 8 4
Self-locking nut
VM 12 DIN 980-8 8 4
27 Track roller unit, UH 1
Track roller unit, R/H 1
28 Washer 20
29 O-Ring 114 x 5 34 – N 4
30 Ring D 152 4 x 35 2
31 Pin D 18 x 184 2
32 Split pin 6 3 x 28 4
33 Chain 2
34 End track shoe 2
35 End link bolt 8
Quick mounting kit
(optional equipment)
36 Threaded cone 4
37 Support 2
38 Turn buckle 2
39 Hex bolt
M 16 x 65 DIN 931-8 8 4
Hex nut
M 16 DIN 934-8 8 4
40 Hex bolt M 20 x 90 DIN 933-8 8 4

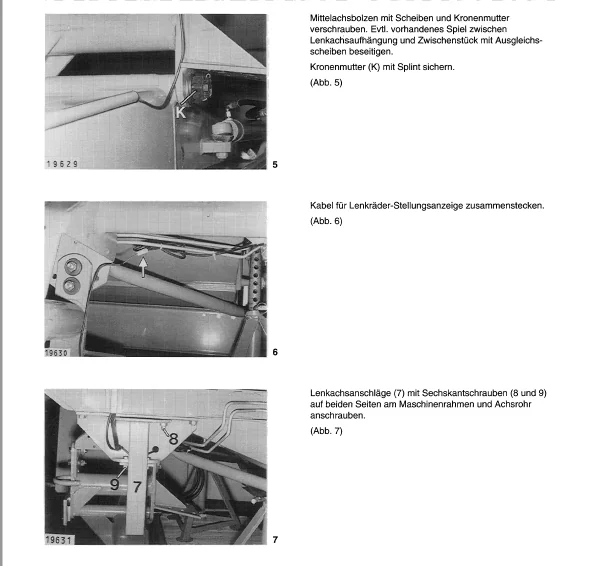

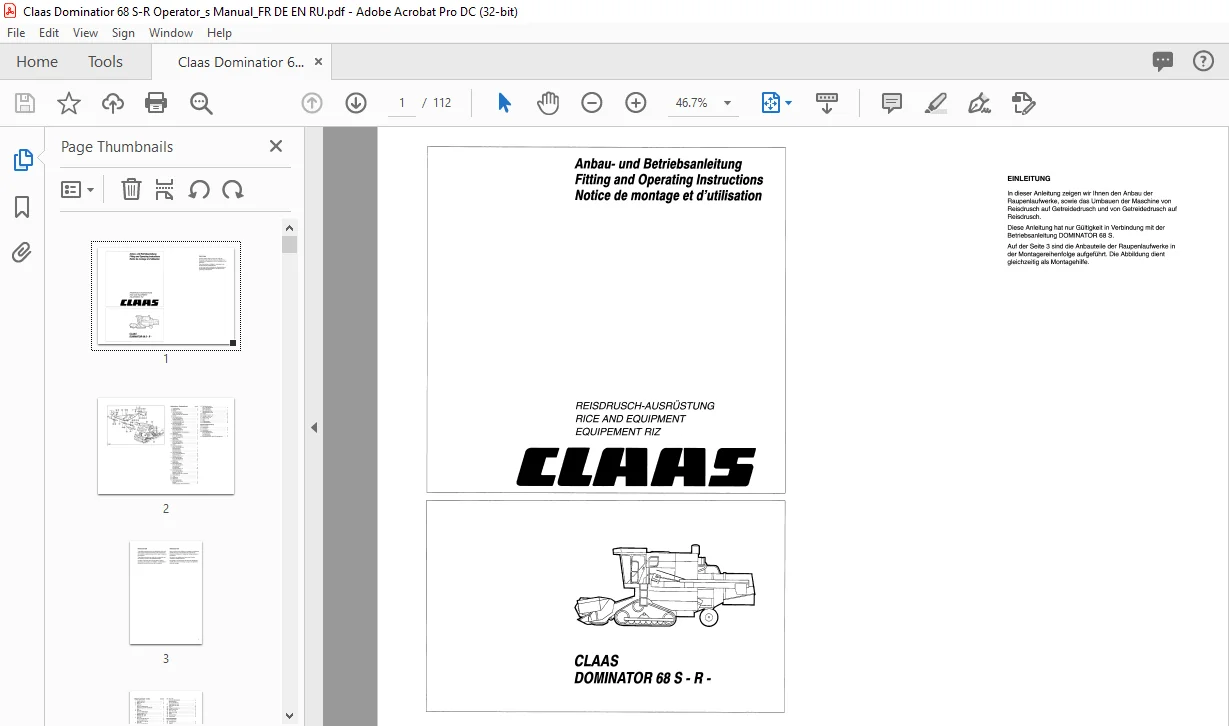

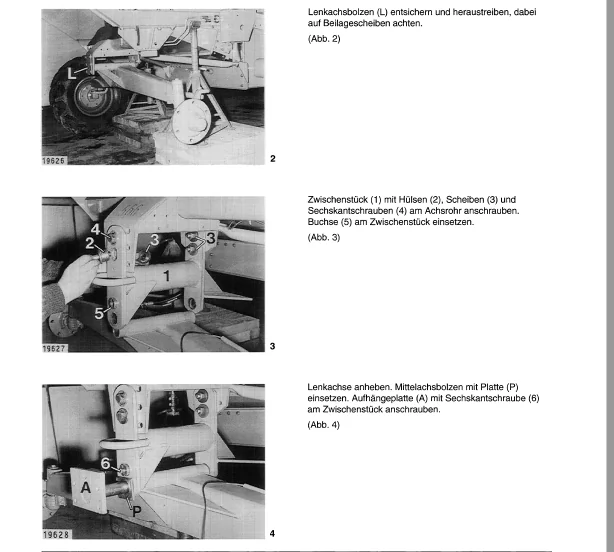

IMAGES PREVIEW OF THE MANUAL:
