INTRODUCTION

These instructions show the conversion to the universal intake auger on the cereal cutterbar 3.90 m – 9.00 m and on the soybean cutterbar 4.50 m – 9.00 m for the combine harvesters CLAAS DOMINATOR VX and CLAAS MEGA. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.

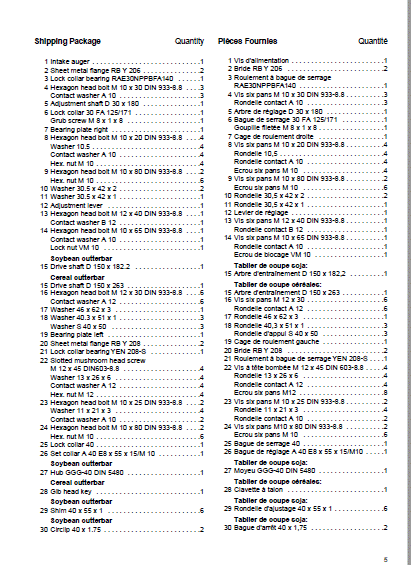

TABLE OF CONTENTS:

CLAAS DOMINATOR CLAAS Universal Intake Auger Conversion Instructions Manual_DE_FR_EN – PDF DOWNLOAD

1 Intake auger 1
2 Sheet metal flange RB Y 206 2
3 Lock collar bearing RAE30NPPBFA140 1
4 Hexagon head bolt M 10 x 30 DIN 933-88 3
Contact washer A 10 3
5 Adjustment shaft D 30 x 180 1
6 Lock collar 30 FA 125/171 1
Grub screw M 8 x 1 x 8 1
7 Bearing plate right 1
8 Hexagon head bolt M 10 x 20 DIN 933-88 4
Washer 105 4
Contact washer A 10 4
Hex nut M 10 4
9 Hexagon head bolt M 10 x 80 DIN 933-88 2
Hex nut M 10 6
10 Washer 305 x 42 x 2 2
11 Washer 305 x 42 x 1 1
12 Adjustment lever 1
13 Hexagon head bolt M 12 x 40 DIN 933-88 1
Contact washer B 12 1
14 Hexagon head bolt M 10 x 65 DIN 933-88 1
Contact washer A 10 1
Lock nut VM 10 1
Soybean cutterbar
15 Drive shaft D 150 x 1822 1
Cereal cutterbar
15 Drive shaft D 150 x 263 1
16 Hexagon head bolt M 12 x 30 DIN 933-88 6
Contact washer A 12 6
17 Washer 46 x 62 x 3 1
18 Washer 403 x 51 x 1 3
Washer S 40 x 50 3
19 Bearing plate left 1
20 Sheet metal flange RB Y 208 2
21 Lock collar bearing YEN 208-S 1
22 Slotted mushroom head screw
M 12 x 45 DIN603-88 4
Washer 13 x 26 x 6 4
Contact washer A 12 4
Hex nut M 12 4
23 Hexagon head bolt M 10 x 25 DIN 933-88 2
Washer 11 x 21 x 3 4
Contact washer A 10 2
24 Hexagon head bolt M 10 x 80 DIN 933-88 2
Hex nut M 10 6
25 Lock collar 40 1
26 Set collar A 40 E8 x 55 x 15/M 10 1
Soybean cutterbar
27 Hub GGG-40 DIN 5480 1
Cereal cutterbar
28 Gib head key 1
Soybean cutterbar
29 Shim 40 x 55 x 1 6
Soybean cutterbar
30 Circlip 40 x 175 2

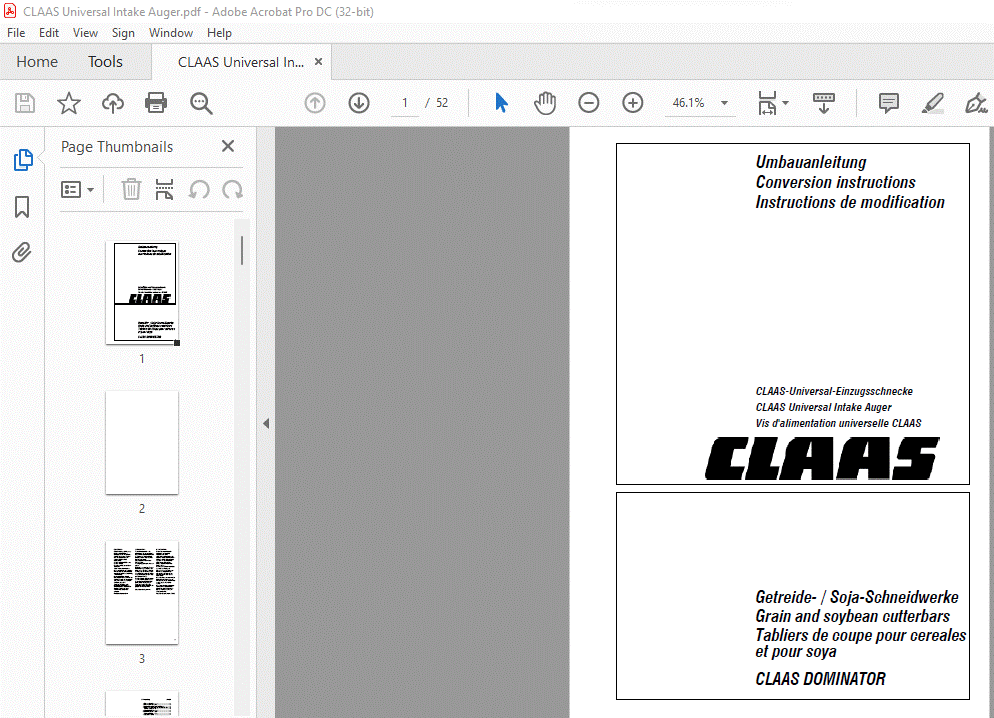

IMAGES PREVIEW OF THE MANUAL:
