CLAAS DOMINATOR MEDION FITTING INSTRUCTIONS MANUAL_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS DOMINATOR MEDION FITTING INSTRUCTIONS MANUAL_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS DOMINATOR MEDION FITTING INSTRUCTIONS MANUAL_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These fitting instructions show the installation of the chaff spreader to the CLAAS combines DOMINATOR 128 VX, 108 VX, 98 VX and DOMINATOR 218 MEGA, 208 MEGA and 204 MEGA. The shipping package is shown n on page 5. The items shown are numbered in the order they are to be assembled.
TABLE OF CONTENTS:

CLAAS DOMINATOR MEDION FITTING INSTRUCTIONS MANUAL_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 V-belt pulley 1
2 Gib head key 1
3 Intermediate drive plate 1
4 (Slotted) mushroom head screw M 8 x 20 8
Hex nut M 8 8
Contact washer A 8 8
5 Bracket 1
6 Mushroom head screw M 6 x 16 2
Hex nut M 6 2
Contact washer A 6 2
7 V-belt 1
8 V-belt pulley 1
9 Gib head key 1
10 Stay 2
11 Hex bolt M 10 x 25 DIN 933-88 2
Hex nut M 10 2
Contact washer A 10 2
12 Chaff spreader 1
13 Threaded bolt 2
Hex nut 12 2
Contact washer B 12 2
14 Spring clip 2
15 Protective tube 1
16 Protective tube (with straw chopper) 1
16 * Protective tube (without straw chopper) 1
17 Hex bolt M 8 x 30 DIN 933-88 2
Hex nut M 8 2
Contact washer B 8 2
18 Tab washer 2
19 Hex bolt M 8 x 20 DIN 933-88 4
Hex nut M 8 4
Contact washer A 8 4
20 End piece 1
21 Protective tube 1
22 End piece 1
23 Linch pin 1
24 Protective tube (with straw chopper) 1
24 * Protective tube (without straw chopper) 1
25 Coverguard 1
26 Hex bolt M 8 x 55 DIN 931-88 2
Hex nut M 8 2
Contact washer A 8 2
27 Spacer element 2
28 V-belt 1
29 V-belt pulley 1
30 Gib head key 1
31 Guard 1
32 Hex bolt M 6 x 16 DIN 933-88 4
Hex nut M 6 4
Contact washer A 6 4
33 Strengthening angle 1
34 Mushroom head screws M 8 x 16 6
Hex nut M 8 6
Special lock washer 8 6
35 Decals 514 8250 2
36 Decals5148150 2
37 Lubricating instruction 538 6401 1
38 Decals 514 8390 2
(Fig 1, 2

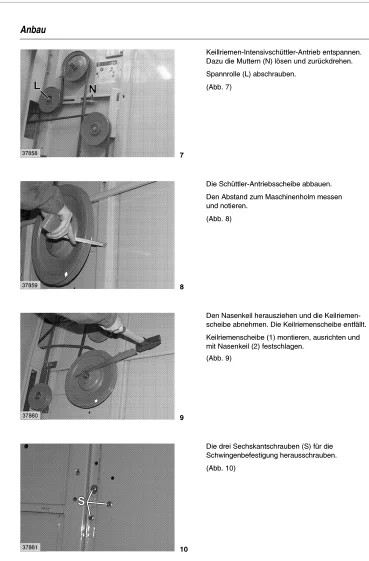

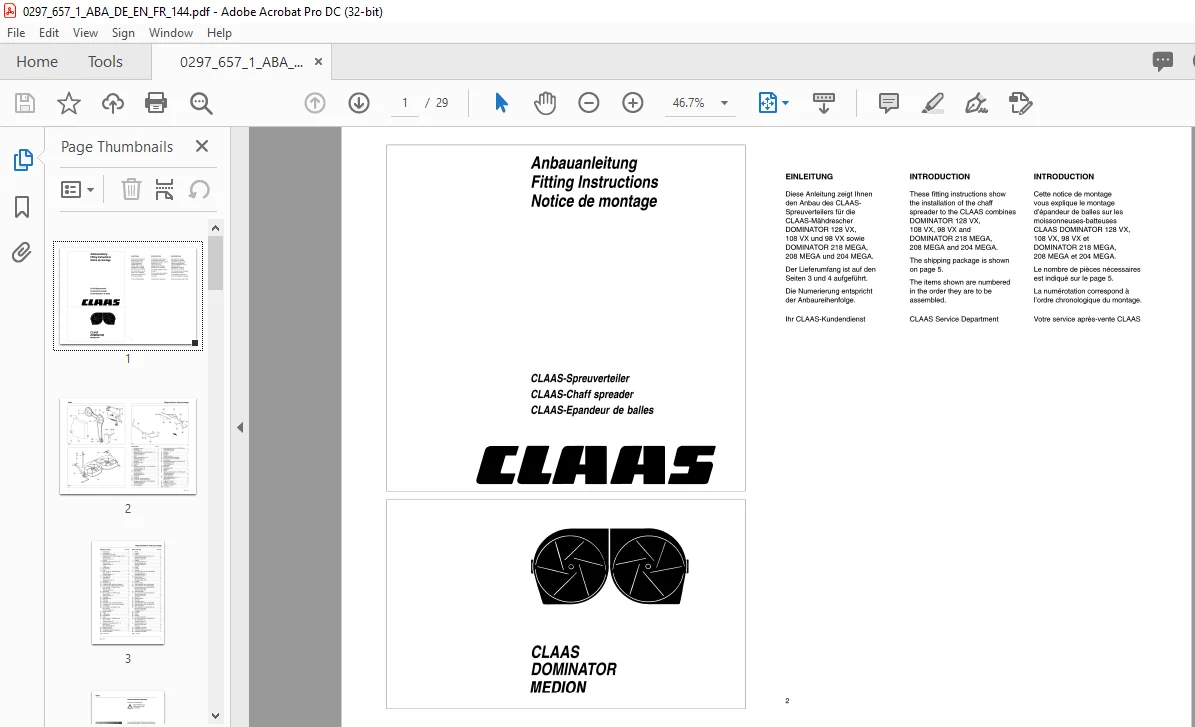

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:\

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
