CLAAS DOMINATOR VX 108 (Linde) DOMINATOR VX 98 (Sauer) DOMINATOR VX 88 (Sauer) CLAAS 4 -Trac – System Fitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS DOMINATOR VX 108 (Linde) DOMINATOR VX 98 (Sauer) DOMINATOR VX 88 (Sauer) CLAAS 4 -Trac – System Fitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS DOMINATOR VX 108 (Linde) DOMINATOR VX 98 (Sauer) DOMINATOR VX 88 (Sauer) CLAAS 4 -Trac – System Fitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These fitting instructions show the installation of the CLAAS 4-TRAC SYSTEM for the CLAAS DOMINATOR VX 108, DOMINATOR VX 98 and DOMINATOR VX 88 combines. The shipping package is shown on page 8. Each part has a number. The part specification e.g. for bolts is also stated in the shipping package. The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS DOMINATOR VX 108 (Linde) DOMINATOR VX 98 (Sauer) DOMINATOR VX 88 (Sauer) CLAAS 4 -Trac – System Fitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

1 Hydrostatic driven rear axle, fitted 1
2 Pivot pin welded 1
3 Washer 41 x 62 x 1.5 2
4 Spacer ring 50 x 40 x 15 1
washer 30.5 x 52 x 5 1
5 Castellated nut M30 x 2 1
6 Split pin 6.3 x 50 1
7 Hexagon bolt M 16 x 50 DIN 933-8.8 2
Contact washer A 16 2
Hexagon nut M 16 DIN 934-8 2
8 Support plate 3 x 165 x 235 1
9 Hexagon bolt M 8 x 20 DIN 933-8.8 2
Contact washer A 8 2
Hexagon nut M 8 DIN 934-8 2
10 Support bracket 80 x 5 x 400 1
11 Hexagon bolt M 8 x 20 DIN 933-8.8 2
Contact washer A 8 2
Hexagon nut M 8 DIN 934-8 2
12 Male connector L10 B-M 1
13 13 Adjustable L-connector L-10 1
Reducing adapter XGR 15/10-L 1
14 14 Mini DKO test connector L-10 1
15 15 Intermediate flange SAE 1Z 3-6000 PSI 2
O-ring 32.9 x 3.5-N 2
16 Linde unit
Hexagon bolt M12 x 90 DIN 931-8.8 8
Spring washer 12 8
16 Sauer unit
Hexagon bolt 7/16 x 3 3/4 DIN B1821 8
Spring washer 11.3 x 19.3 x 2.1 DIN 128 8
17 17 Male connector S25E/WD-M 2
18 Adjustable elbow union S25 Linde unit 1
18 Adjustable elbow union S25 Sauer unit 2
19 Adjustable L-connector L18 1
20 Linde unit
Hose line 1SN 12NN 5000 long 1
20 Sauer unit
Hose line 1SN 12NN 5350 long 1
21 Hose line 4SH20 P45P 4800 long 1
22 Hose line 1SN16NN 5200 long 1
23 Linde unit
Hose line SH20 P45P 5350 long 1
23 Sauer unit
Hose line SH20 P45P 5000 long 1
24 Pipe clamp RSGU 1.24/20 2
25 Hexagon bolt M 8 x 30 DIN 933-8.8 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934-8 1
26 Cable band min. 12.7 x 510 10
27 Double clamp with cover plate 6
28 Hexagon bolt M 8 x 55 DIN 931-8.8 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934-8 1
29 Double clamp with cover plate 32/32 6
30 Hexagon bolt M 8 x 75 DIN 931-8.8 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934-8 1
31 Hexagon bolt M 8 x 115 DIN 931-8.8 1
Contact washer A 8 1
Hexagon nut M 8 DIN 934-8 1
32 Adjustable elbow union L 15 1
33 Protective strip, light grey 1
34 Wiring loom 4-Trac 1
35 Pipe clamps RS 1.12/20 6
36 Pipe clamps RSGU 1.10/15 6
37 Hexagon bolt M 8 x 115 DIN 931-8.8 1
Contact washer A 6 1
Hexagon nut M 6 DIN 934-8 1
38 Rocker switch 1
Insert Four-wheel drive

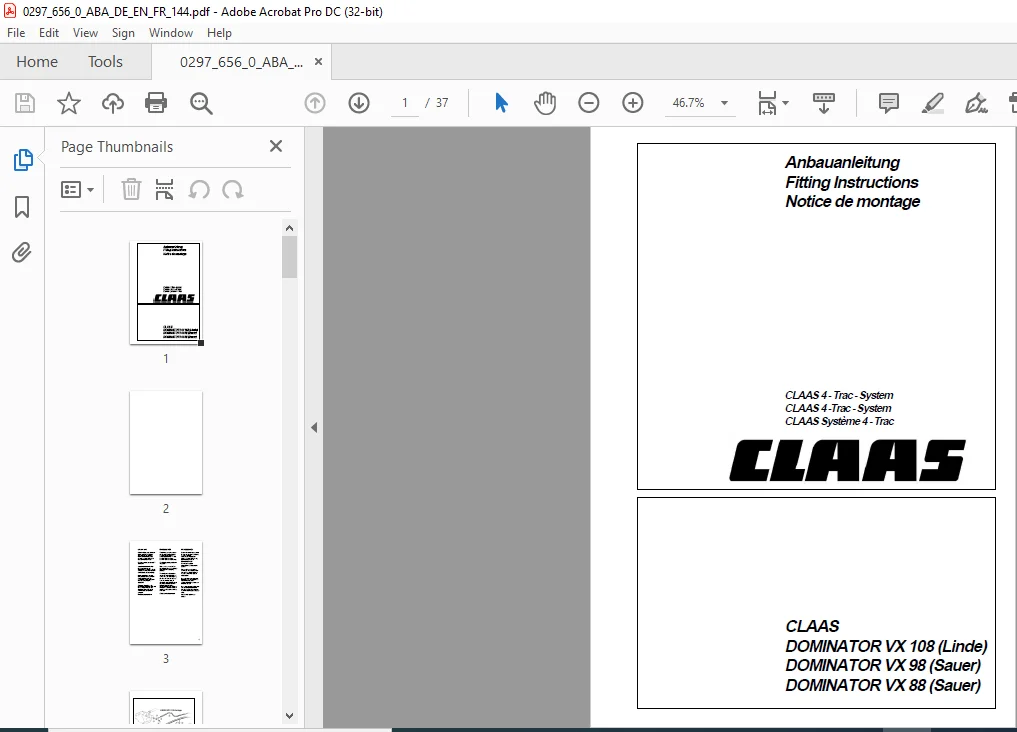

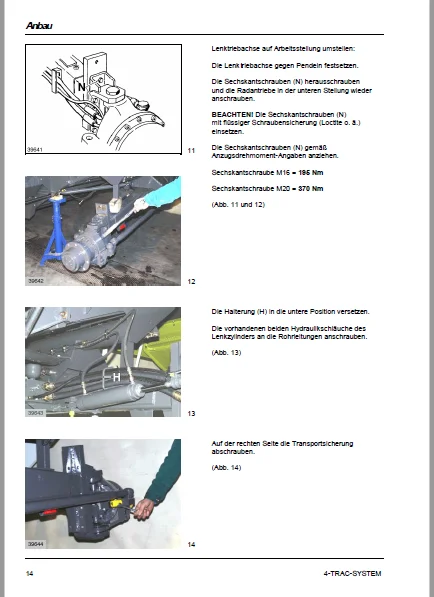

IMAGES PREVIEW OF THE MANUAL:

CLAAS DOMINATOR VX 108 (LINDE) DOMINATOR VX 98 (SAUER) DOMINATOR VX 88 (SAUER) CLAAS 4 -TRAC – SYSTEM FITTING INSTRUCTION MANUAL_DE_EN_FR – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
