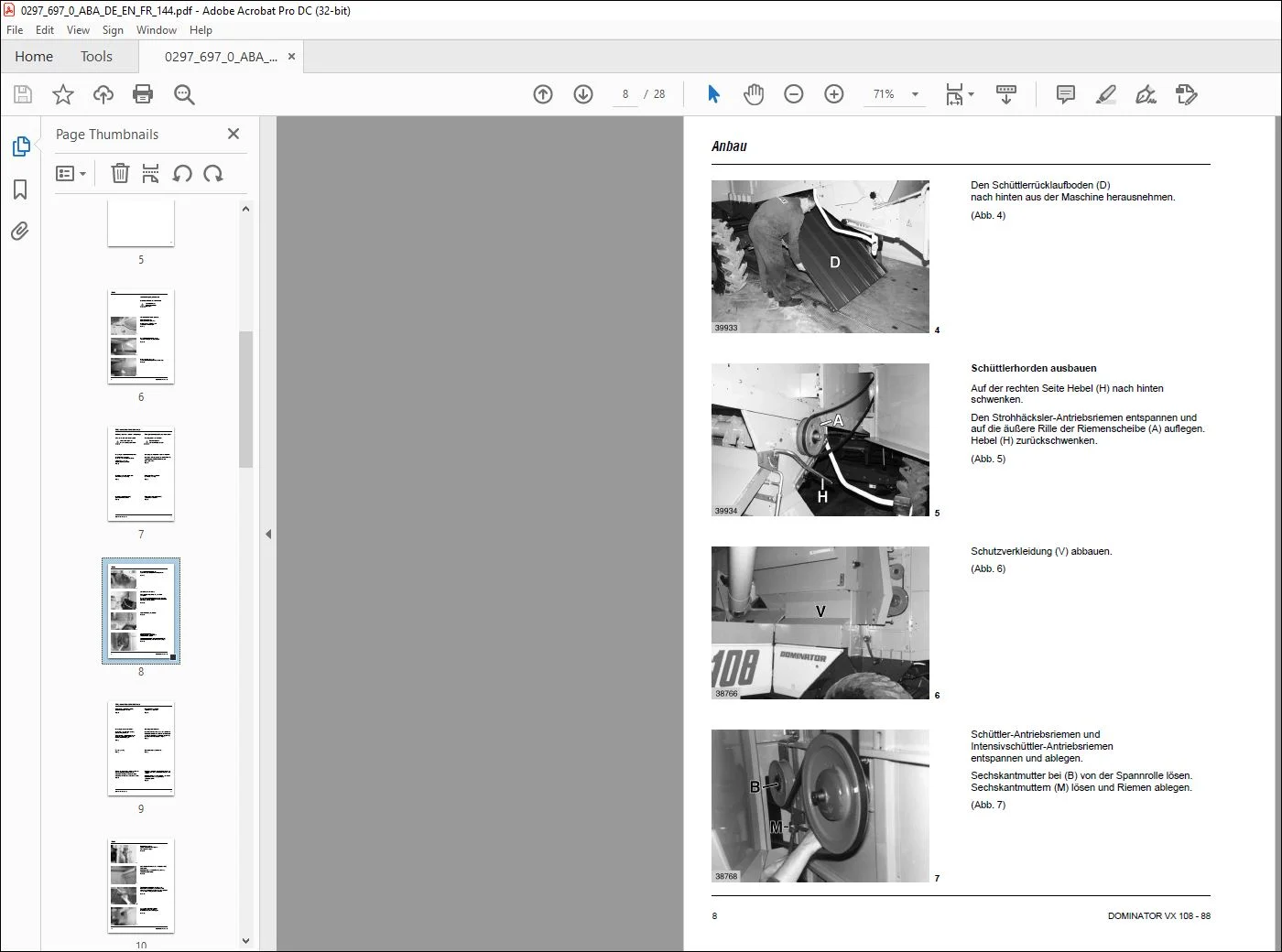

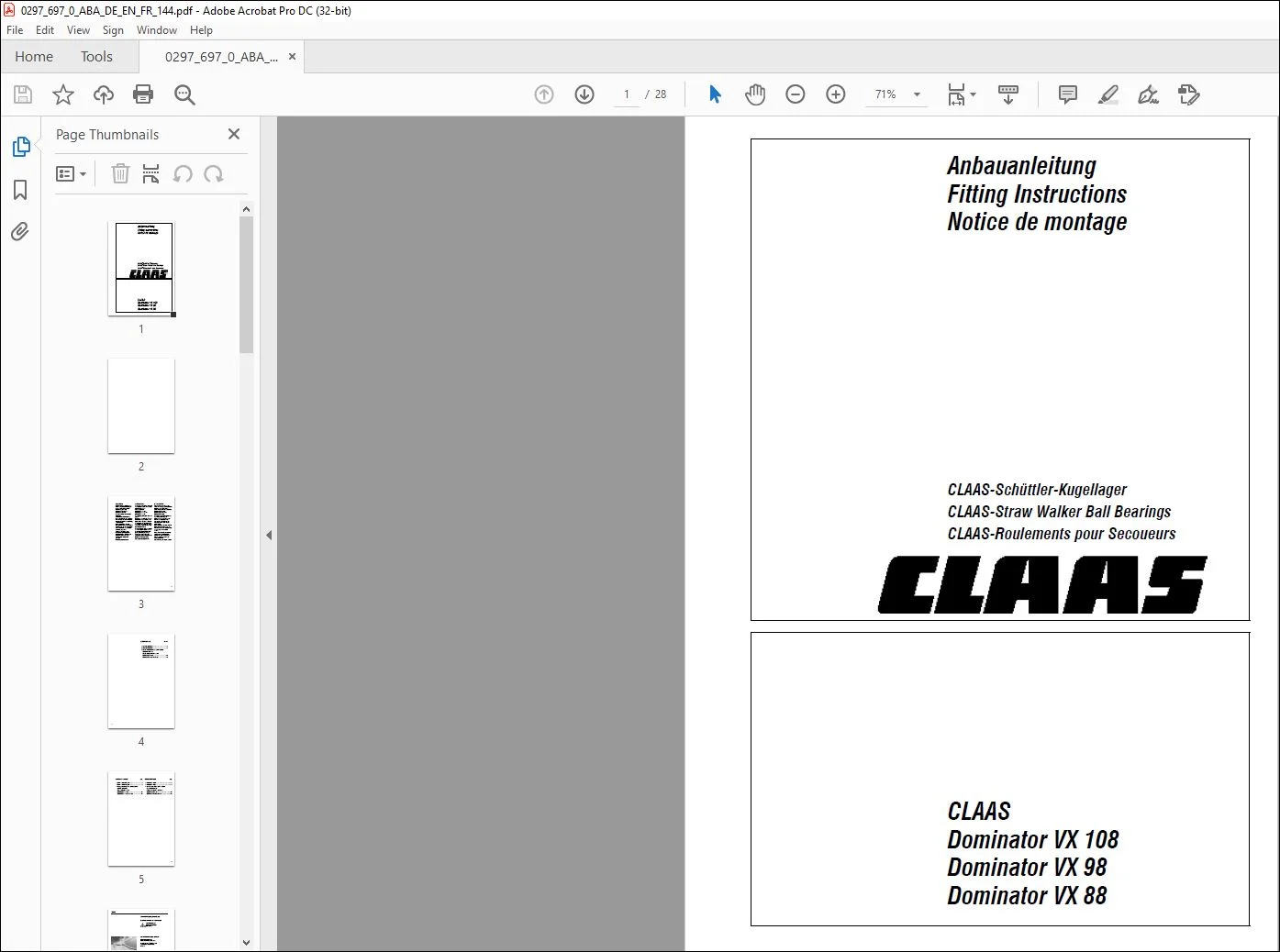

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Dominator VX 108 VX 98 VX 88 CLAAS-Straw Walker Ball Bearings Fitting instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION
These fitting instructions show you
the installation of the straw walker
ball bearings on the
CLAAS combines
DOMINATOR VX 108
DOMINATOR VX 98 and
DOMINATOR VX 88.
The shipping package is shown on
page 5.
Each part has a number. The part
specification e.g. for bolts is also
stated in the «shipping package».
The list gives the dimensions and
the quantity of the bolts as well as
the parts belonging to it, like nuts
and Contact washers.
Text and pictures apply, in general
to all the machine types covered
by this book and the information
given applies equally, except
where reference is made to a
particular model in captions to the
pictures or in the main text

TABLE OF CONTENTS:

CLAAS Dominator VX 108 VX 98 VX 88 CLAAS-Straw Walker Ball Bearings Fitting instructions Manual_DE_EN_FR – PDF DOWNLOAD

SHIPPING PACKAGE mg
1 Straw walker shaft, front 1
2 Straw walker shaft, rear 1
3 Hexagon head bolt M 8 x 20 DIN 933-88
Contact washer A 8
Hex nut M 8 DIN 934-8
DOMINATOR VX 108 48
DOMINATOR VX 98 and VX 88 40
