CLAAS Forage Harvester JAGUAR 900 – 830 Yield meter with CLAAS CEBIS MOBILE Fitting and Operating Instructions Manual

Description

CLAAS Forage Harvester JAGUAR 900 – 830 Yield meter with CLAAS CEBIS MOBILE Fitting and Operating Instructions Manual

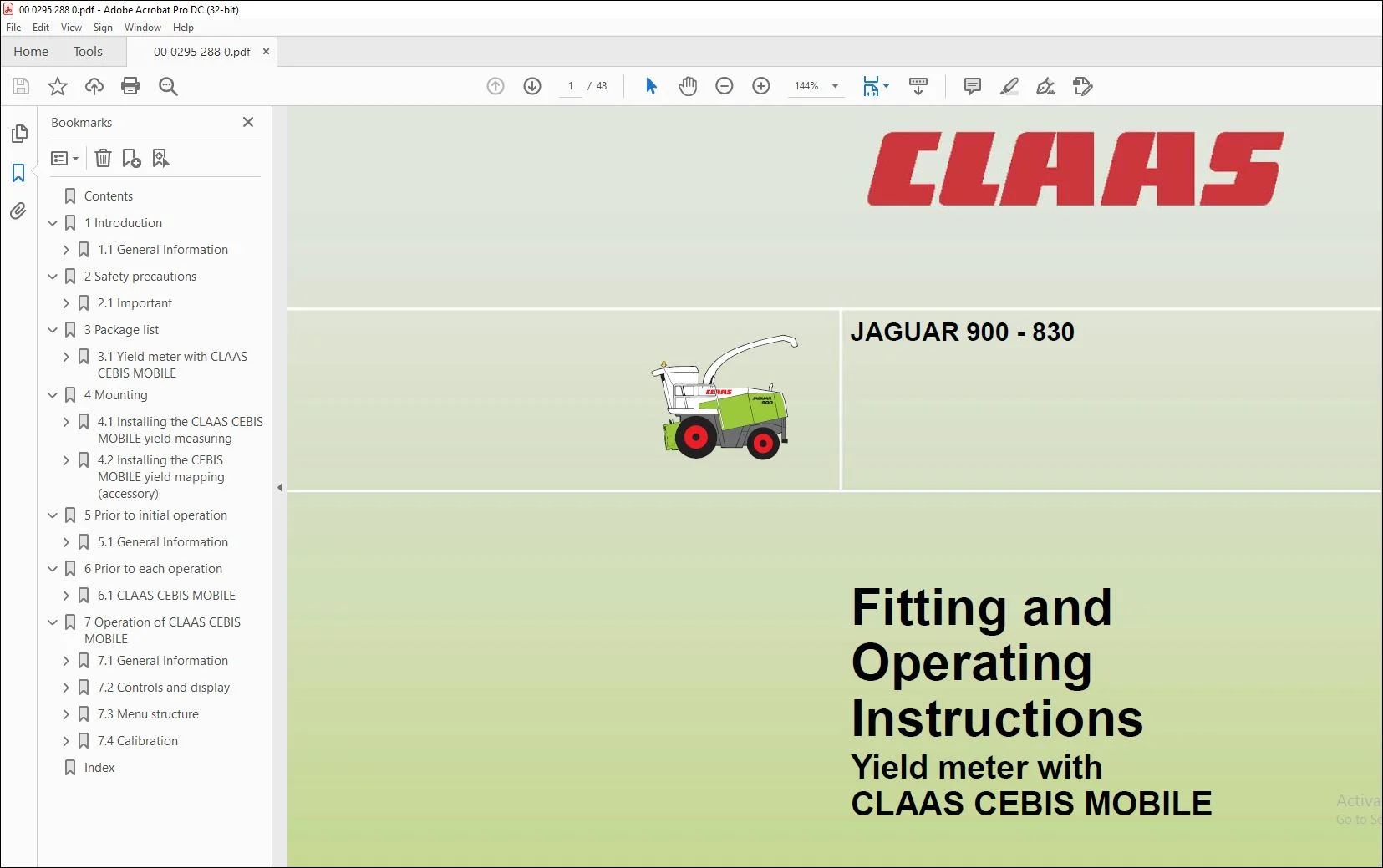

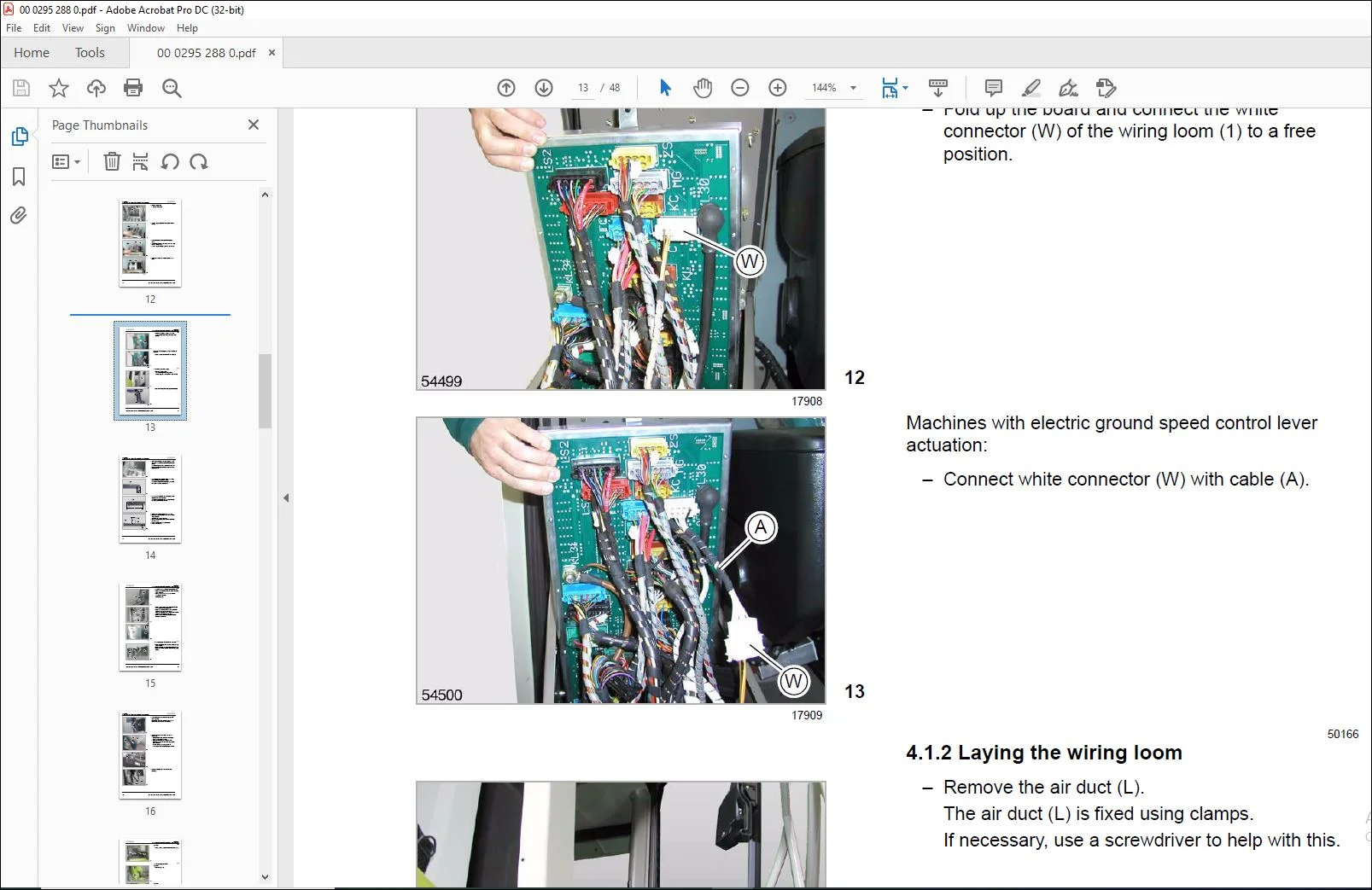

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvester JAGUAR 900 – 830 Yield meter with CLAAS CEBIS MOBILE Fitting and Operating Instructions Manual

1 Introduction
1.1 General Information

This manual shows you how to assembly the parts listed in the Package List section. In the following chapters, the cutterbar is referred to as a front attachment. The combine harvester / forage harvester is referred to as the machine. Text and pictures are kept neutral if possible. Differences are indicated using picture headings or text notes. In the assembly descriptions, for better clarification, existing parts are designated using letters and new parts are designated using numbers. Directions such as front, back, right and left are always relative to the direction of travel. Technical data, dimensions and weights are given as an indication only. We reserve the right to make changes in response to technical development and errors

TABLE OF CONTENTS:

CLAAS Forage Harvester JAGUAR 900 – 830 Yield meter with CLAAS CEBIS MOBILE Fitting and Operating Instructions Manual

Contents
1 Introduction
11 General Information 5
111 How to use this manual 5
112 Validity of instructions 5
2 Safety precautions
21 Important 6
211 Important information 6
212 Identification of warning and danger signs 7
3 Package list
31 Yield meter with CLAAS CEBIS MOBILE 8
311 Supplementary kit 009 101 592 7 / 009 101 592 8 8
4 Mounting
41 Installing the CLAAS CEBIS MOBILE yield measuring 10
411 Converting the central terminal compartment 10
412 Laying the wiring loom 13
413 Installing the CEBIS MOBILE control 15
414 Removing the feeder 17
415 Installing the angular sensor 19
416 Installing the feeder housing 21
417 Connecting the angular sensor 22
42 Installing the CEBIS MOBILE yield mapping (accessory) 24
421 Installing the GPS antenna (accessory) 24
5 Prior to initial operation
51 General Information 26
511 Initial operation check list 26
6 Prior to each operation
61 CLAAS CEBIS MOBILE 27
611 Inserting the chip card 27
7 Operation of CLAAS CEBIS MOBILE
71 General Information 28
711 CLAAS CEBIS MOBILE 28
72 Controls and display 29
721 Controls 29
722 Forage harvester menu with vehicle information display 30
723 Forage harvester menu with harvest display 31
724 Work records menu 32
73 Menu structure 33
731 Menu selection 33
732 Forage harvester menu overview 33
733 Vehicle information display / Harvest display menu 33
734 Test-weighing menu 34
735 Calibration menu 35
736 Counter menu 36
4 000 295 288 0 – ABA/BA QCM JAGUAR 900-830 – 06/07
16907
737 Work records overview menu 37
738 Work records menu 37
739 GPS menu 39
7310 Settings menu 40
74 Calibration 42
741 Determining and setting the calibration dimension 42
742 Setting the response threshold 42
743 Learning the zero gap 43
