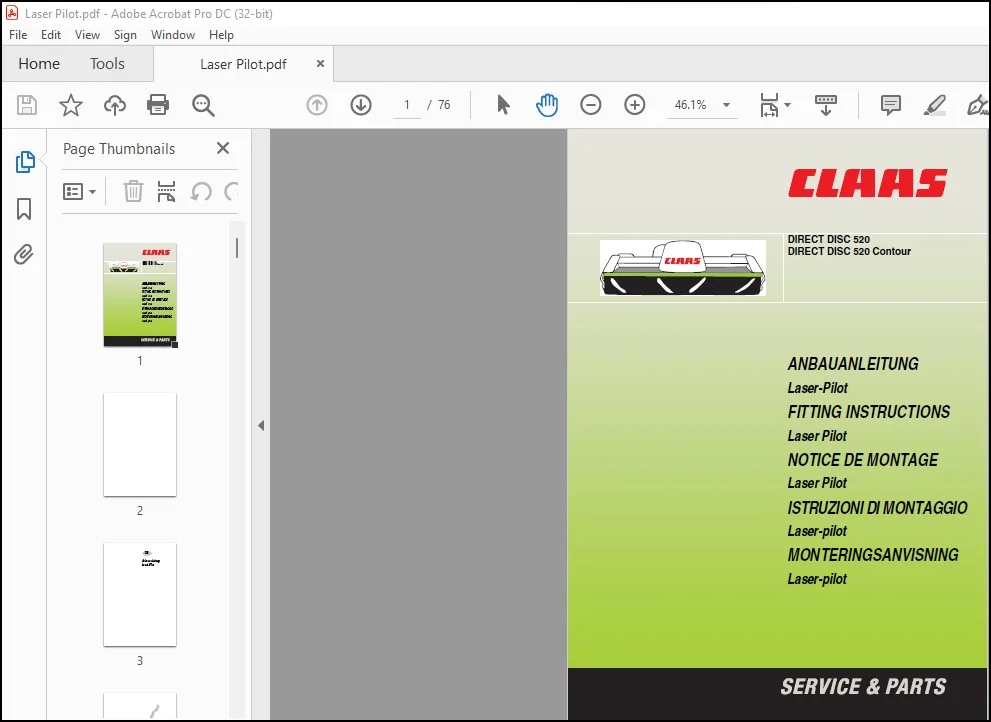

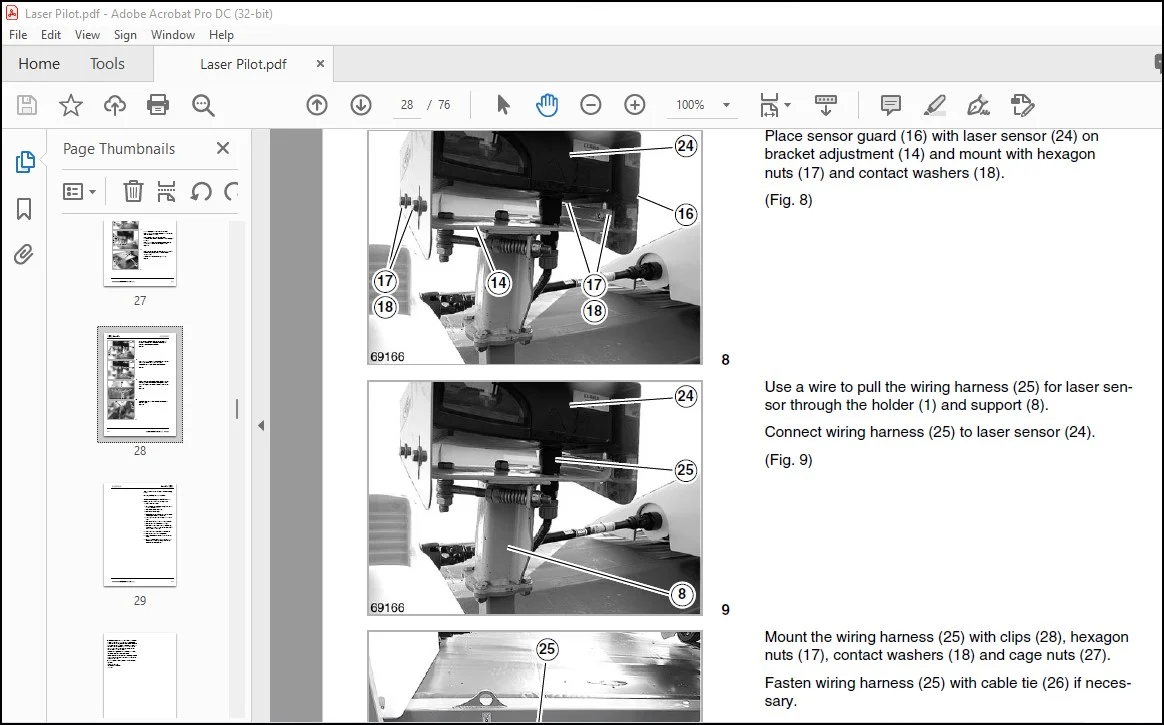

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvesters DIRECT DISC 520 DIRECT DISC 520 Contour Fitting Instructions Manual_DE_EN_FR_ES_IT_RU – PDF DOWNLOAD

INTRODUCTION

This manual describes the safe and timesaving procedure for installing the Autopilot with the installation kit part No. 0495 424.0. Please read this manual carefully before starting work. Pay particular attention to the section »General Information «. The following machines can be modified: DIRECT DISC 520 DIRECT DISC 520 Contour The Shipping package is listed on page 4.1. Before starting work make sure that the installation kit is complete. Also consider the Shipping package list as an addition to the spare parts list.

General Information
PAY PARTICULAR ATTENTION TO THIS
INFORMATION

• To prevent accidents, these instructions must be read by everyone who uses the machine/ front attachment and who deals with the maintenance, servicing or inspection. It is advisable to pay particular attention to the chapter headed »General Information« in your operator’s manual as well as to comply with the regulations for the prevention of accidents that are in
• force in your country. Before starting work, make sure that all the necessary tools and attachments are ready for use. Make a comparison between the type of machine/front attachment on hand, the list which appears in the section headed »Lieferumfang « and the ready-to-assemble parts supplied. Specifications of the parts, for example the screws, appears in
• the list headed »Lieferumfang «. In this list, each assembly component is identified by an item number. Other information stated on these components are the spare part number, the quantity, the dimensions, the DIN standard and the application. In the assembly descriptions, the parts on hand are identified by letters and new parts by numbers (item numbers) for the
• purpose of improving orientation. Texts and diagrams are neutral as far as possible. Annotations in the text draw attention to differences in the various types. Technical details, dimensions and weights are to be considered with the relevant tolerances. Forwards, backwards, right and left are to be always understood as facing the direction of the machine
