CLAAS Forage Harvesters DOMINATOR 218 MEGA- 78 Classic JAGUAR 695 MEGA – 685 SL Air Conditioning Fitting Instructions Manual – PDF DOWNLOAD

Description

CLAAS Forage Harvesters DOMINATOR 218 MEGA- 78 Classic JAGUAR 695 MEGA – 685 SL Air Conditioning Fitting Instructions Manual – PDF DOWNLOAD

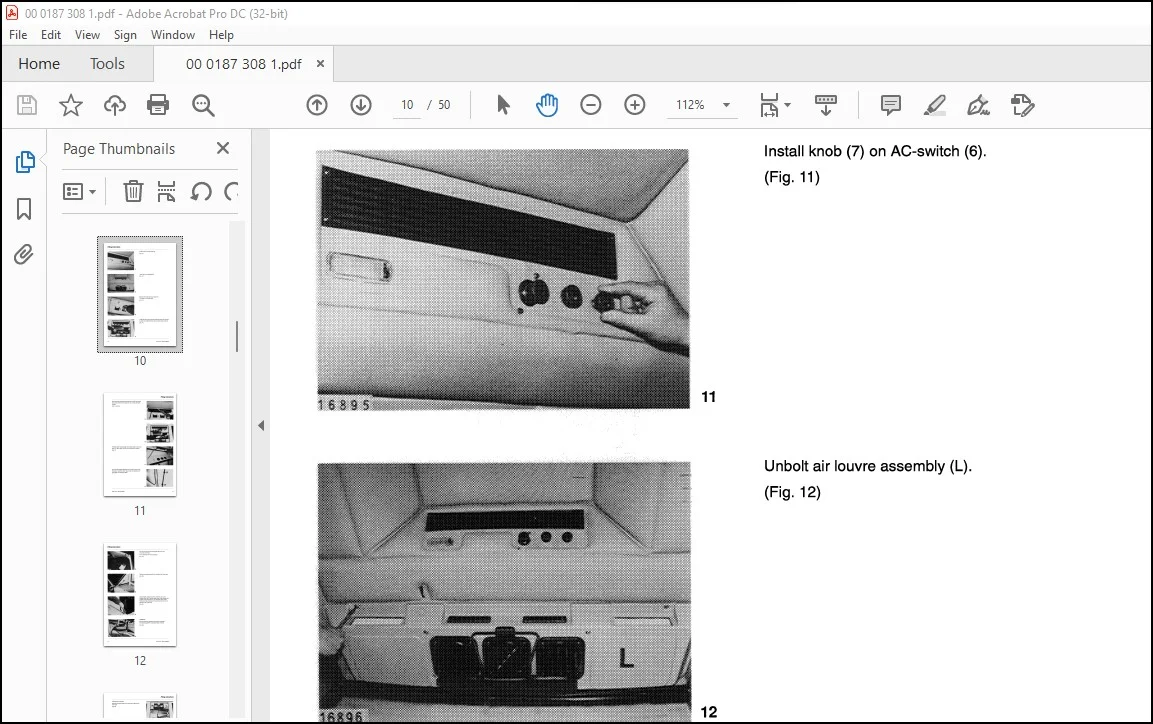

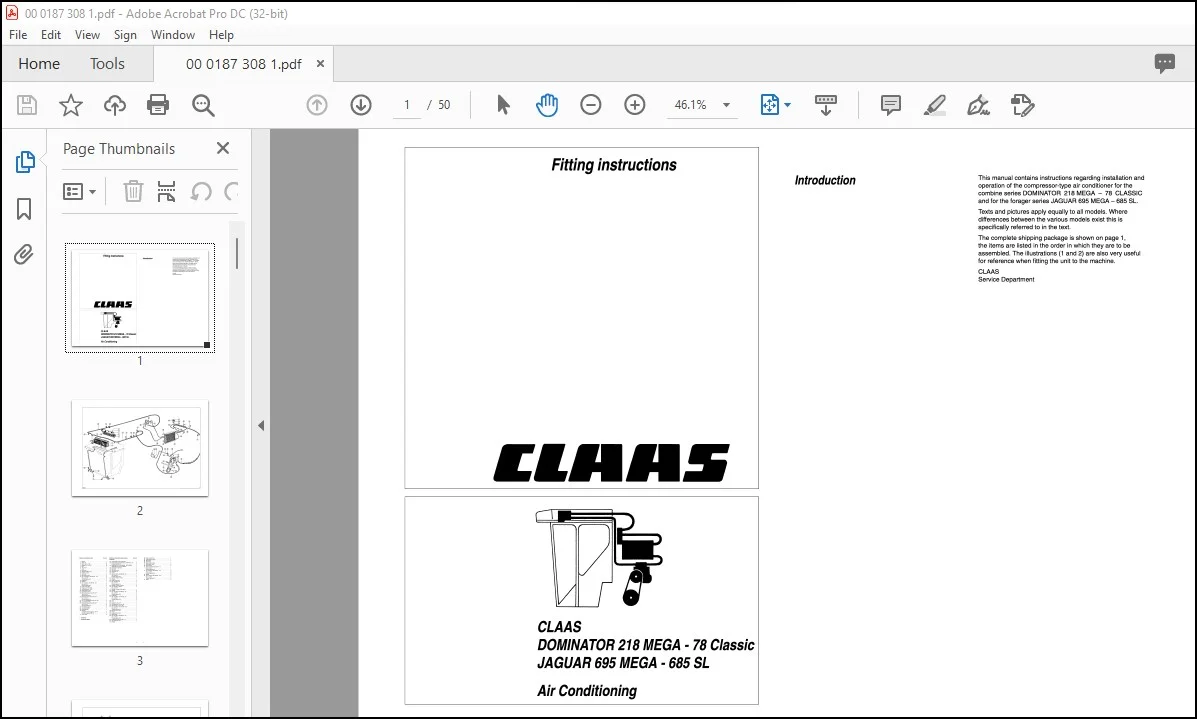

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvesters DOMINATOR 218 MEGA- 78 Classic JAGUAR 695 MEGA – 685 SL Air Conditioning Fitting Instructions Manual – PDF DOWNLOAD

lntroduction

This manual contains instructions regarding installation and operation of the compressor-type air conditioner for the comЬine series DOMINATOR 218 MEGA – 78 CLASSIC and for the forager series JAGUAR 695 MEGA – 685 SL. Texts and pictures apply equally to all models. Where differences between the various models exist this is specifically referred to in the text. The complete shipping package is shown on page 1, the items are listed in the order in which they are to Ье assemЫed. The illustrations (1 and 2) are also very useful for reference when fitting the unit to the machine.

TABLE OF CONTENTS:

CLAAS Forage Harvesters DOMINATOR 218 MEGA- 78 Classic JAGUAR 695 MEGA – 685 SL Air Conditioning Fitting Instructions Manual – PDF DOWNLOAD

Safety rules 9
Compressor-type air conditioning system –
mounting to саЬ 1 О
Compressor-type air conditioning system –
mounting to base machine 18
lnstalling the compressor 20
lnstalling the condenser 23
Compressor-type air conditioning system –
mounting to machine 27
lmportant instructions 34
Charging the air conditioning system 34
Liquid charge 34
Gaseous charge 34
Checking the compressor oil level 34
Service valve 37
СаЬ 38
Putting the conditioner into operation 39
Electrical functions of compressor-type
air conditioner – ComЬines 41
Electrical functions of the compressor-type
air conditioning system – Forage harvesters 43
How а compressor-type air conditioning
system works 45
ProЫem, cause or remedy 46
Reference chart 4 7
Fault diagnostics for pressure variations 48
Parts to Ье mounted to саЬ Quantity
1 Screen 1
2 Filter mat 1
3 Blind rivet 4 х 762 13
4 Washer 43 х 9 х 08 13
5 Grill 1
6 А/С switch 1
7 Knob 1
8 Drain рап 1
9 Silicone sealant, grey 1
1 О FlexiЫe conduit 1
11 Dust сар 2
12 Pipe clamp 15/20 2
13 Нех screw М 8 х 25 DIN 931 – 88 2
Нех nut М 8 2
Contact washer В 8 2
14 Evaporator 1
15 Bracket 1
16 Нех bolt М 6 х 12 DIN 933 – 88 2
Нех nut М 6 2
Contact washer В 6 2
17 Foam rubber strip 1
18 Rubber grommet 18/21 2
19 Rubber grommet 10/20 4
20 High pressure hose 1
21 Pipe clamp 10/15 ** 4
22 Mushroom head screw М 6 х 35 ** 1
Нех nut М 6 1
Contact washer А 6 1
23 Mushroom head screw М 6 х 25 ** 1
Нех nut М 6 1
Contact washer А 6 1
24 Нех hd self-tapping screw 48 х 16 ** 2
25 Low pressure hose 1
26 Mushroom head screw М 8 х 20 ** 2
Нех nut М 8 2
Contact washer S 8 2
27 PVC spacer tube * 2
28 Pipe clamp 30/25 * 1
29 lnsulating tape 1
30 Beading
Forage Harvesters approx 100 mm 2
ComЬines approx 800 mm 1
31 СаЫе strap 14
* Comblnes
** Forage harvesters
Parts to Ье mounted to base machine
Comblnes
Quantity
32 V-belt pulley (not all machines) 1
33 Socket head сар screw М10 х 70 DIN 912 – 88 3
Contact washer А 1 О 3
34 Shaft 550 mm DO 218 MEGA – 88 CLASSIC 1
Shaft 490 mm DO 78 CLASSIC 1
35 Compressor assemЫy 1
36 Set collar 2
37 Shim 30 х 42 х 1 12
38 Tensioner arm 1
39 Holder 2
40 Нех bolt М 8 х 20 DIN 933 – 88 7
Нех nut М 8 7
Contact washer В 8 7
41 Spacer, Perkins V 8540 1
42 Conduit 1
43 Plastic screw сар 2
44 Нех bolt М 6 х 30 1
Нех nut М 6 1
Contact washer А 6 2
45 Single-pin round connector 2
46 Нех bolt М 8 х 25 RS 2
Нех nut М 8
47 Bracket, Perkins in-line engine 1
~в~~ 6
49 Нех bolt М 8 х 16 DIN 933- 88 5
Нех nut М 8 5
Contact washer В 8 5
50 Condenser 1
51 Нех bolt М 6 х 12 DIN 933- 88 8
Нех nut М 6 8
Contact washer В 6 8
52 Line 1
53 Line 1
54 Bracket 3 х 35 х 15 * 1
55 Clamping piece 2 х 20 х 29 * 1
56 Spacer tube 14 х 15 х 89 * 1
57 Нех bolt М 6 х 100 DIN 931 – 88 * 1
Нех nut М 6 1
Contact washer В 6 1
58 Bracket 30 х 3 х 62 1
59 Clamp 1
60 Rubber buffer 15/1 О 1
61 Mating plate 1
62 Нех bolt М 8 х 40 DIN 931 – 88 1
Нех nut М 8 1
Contact washer В 8 1
63 Rubber grommet 18 х 30 х 15 2
64 High pressure hose 1
65 Bracket 1
66 Filter receiver drier 1
67 High pressure switch 1
68 Wiring loom 1
69 Pipe clamp 1
70 High pressure hose 1
71 Pipe clamp 15/20 6
72 Hose support 3
73 Mushroom head screw М 6 х 12 1
Нех nut М 6 1
Contact washer S 6 1
74 Нех bolt М 6 х 30 DIN 931 – 88 2
Нех nut М 6 2
Contact washer S 6 2
75 Spacer 4
76 Нех bolt М 6 х 35 DIN 931 – 88 4
Нех nut М 6 4
Contact washer А 6 4
77 Relay 2
Parts to Ье mounted to base machine
Forage harvesters
Quantity
32 V-belt pulley 1
33 Compressor assemЫy 1
34 Нех bolt М 12 х 120 DIN 931 – 88 1
Нех nut М 12 1
Contact washer S 12 1
35 Shim 13 х 26 х 1 1
36 Shim 13 х 26 х 2 5
37 Shim 13 х 26 х 3 2
38 Adjusting screw 1
39 Split pin 5 х 22 1
40 Нех nut М 12 3
41 Corrugated conduit 1
42 Single pin round connector 35 mm-dia 2
43 Rubber-metal mount 4
Нех nut М 8 4
Contact washer А 8 8
44 Condenser 1
45 Bracket 1
~в~~ 1
47 Filter receiver drier 1
48 Нех bolt М 6 х 16 DIN 933 – 88 4
Нех nut М 6 4
Contact washer А 6 4
49 High pressure switch 1
50 Wiring loom 2
51 Pipe clamp 12/20 2
52 High pressure hose 1
53 High pressure line 1
54 High pressure line 1
55 Retainer 2
56 Rubber buffer 1 0/1 О 2
57 Clamp 2
58 Нех bolt М 8 х 40 DIN 931 – 88 2
Нех nut М 8 2
Contact washer А 8 2
59 High pressure line 1
60 High pressure line 1
61 Low pressure line 1
62 Bracket 2
63 Нех bolt М 6 х 20 4
Нех nut М 6 4
Contact washer А 6 4
64 Rubber butfer 15/1 О 2
65 Clamp 2
66 Нех bolt М 8 х 45 DIN 931 – 88 2
Нех nut М 8 2
Contact washer А 8 2
67 Relay 1

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
