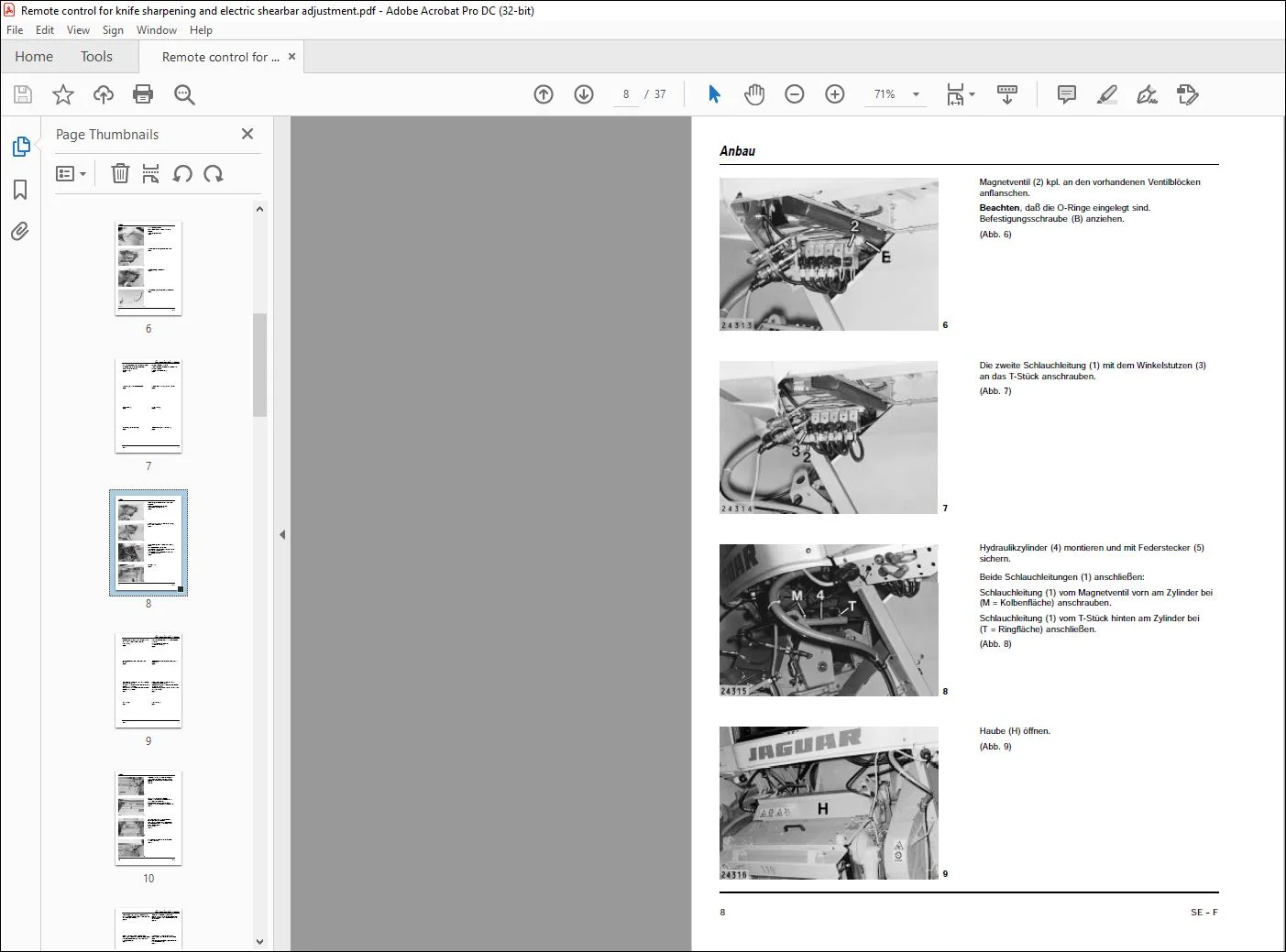

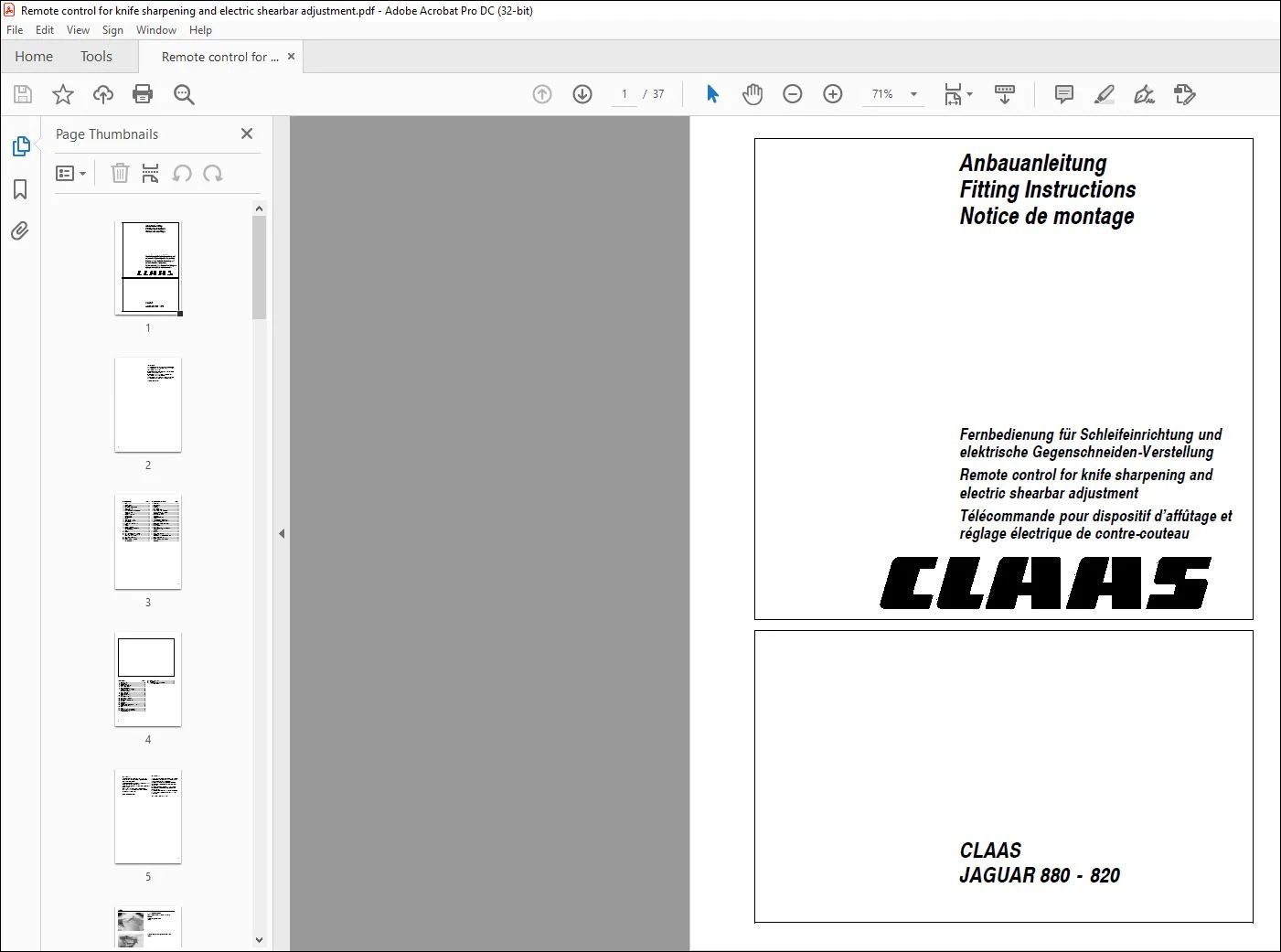

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

claas Forage Harvesters JAGUAR 880 – 820 Remote control for knife sharpening and electric shearbar adjustment Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

This manual provides information for installation of the remote control kit for the automatic knife sharpener and electric shearbar adjustment. The complete shipping package for the remote control kit for the sharpener is illustrated on page 4. The shipping package for the electric shearbar adjustment is shown on page 21. Figures 1 and 29 should be used for reference when installing the kit. The parts are numbered in the order in which they are to be installed

TABLE OF CONTENTS:

claas Forage Harvesters JAGUAR 880 – 820 Remote control for knife sharpening and electric shearbar adjustment Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Hose 2
2 Solenoid valve 1
3 Elbow union L 8 1
4 Hydraulic cylinder assembly 1
5 Spring clip 3 x 48 1
6 Reed switch 1
7 Cheese head bolt M 4 x 20 DIN 84 2
Hex nut M 4 DIN 934 2
Washer 53 DIN 9021 2
8 Bracket 4 x 45 x 995 1
9 Screw M 8 x 20 2
Contact washer 2
10 Magnet 1
11 Wiring loom with plug 1
12 Wiring loom with socket 1
13 Rocker switch 1
14 Grinding cycle potentiometer 1
15 Decal 1
16 Beading 1
17 Bracket for module 1
18 Hex bolt M 6 x 16 DIN 933-88 2
Contact washer A 6 2
19 Module 1
20 Bracket 1
21 Cheese head bolt M 6 x 12 DIN 84 2
22 Self-tapping screw B 35 x 95 N 3 C 1
Serrated lock washer A 53 1
23 Relay 12 V, remote control 1
24 Cover 1
25 Hex bolt M 8 x 25 DIN 933 4
Contact washer B 8 4
