CLAAS Forage Harvesters JAGUAR 900-830 Profistar (Type 493) 900-830 Speedstar (Type 493)Electric Technical Systems Manual – PDF DOWNLOAD

Description

CLAAS Forage Harvesters JAGUAR 900-830 Profistar (Type 493) 900-830 Speedstar (Type 493)Electric Technical Systems Manual – PDF DOWNLOAD

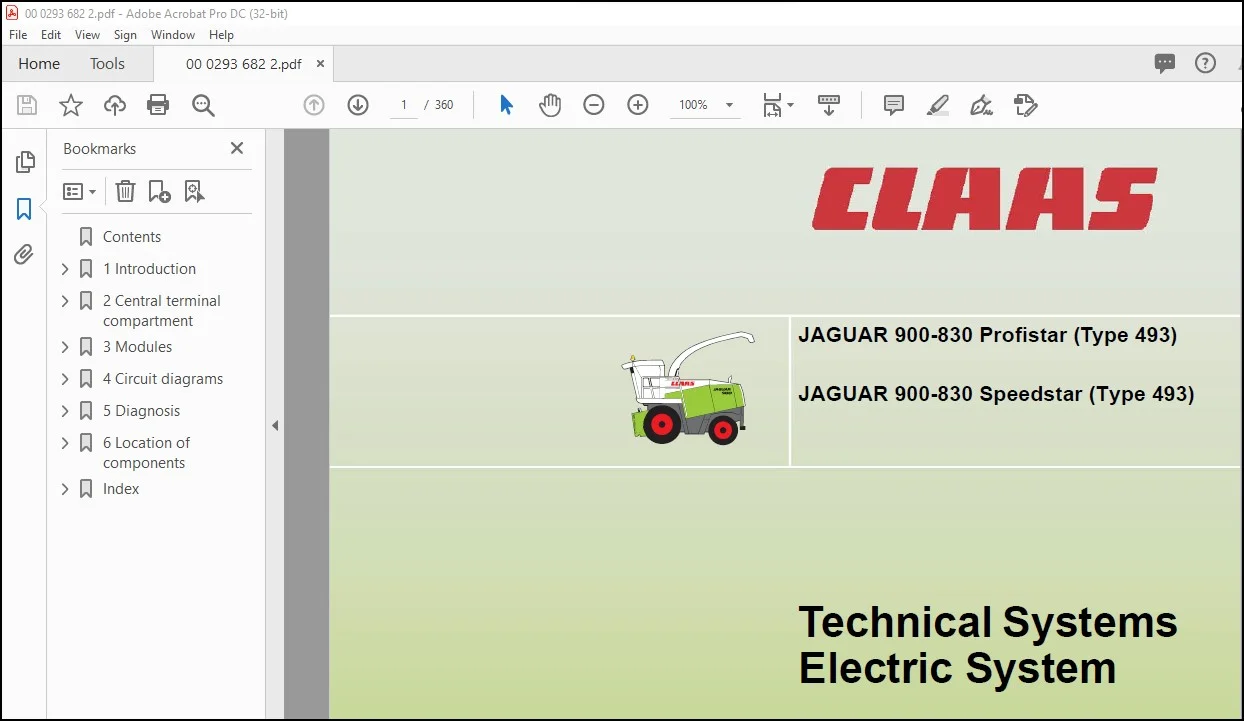

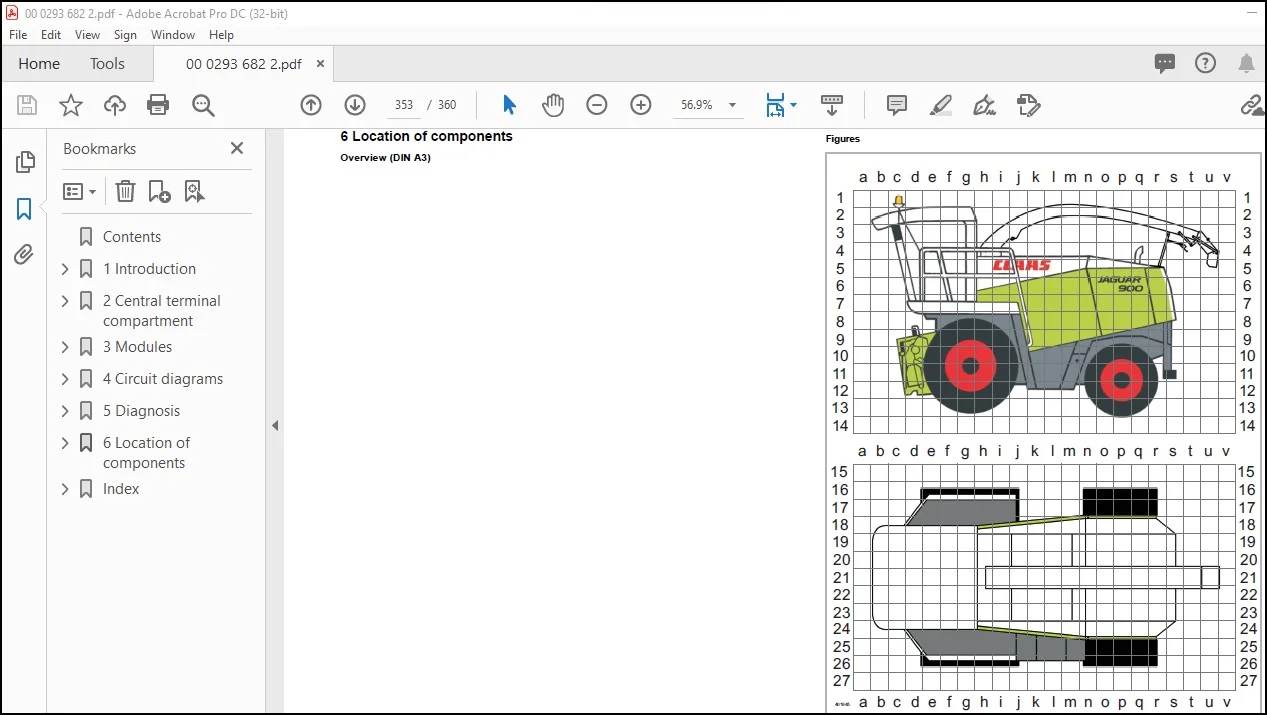

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvesters JAGUAR 900-830 Profistar (Type 493) 900-830 Speedstar (Type 493)Electric Technical Systems Manual – PDF DOWNLOAD

Contents
1 Introduction
Structure of electrical documentation 11
Circuit diagram 11
Grid co-ordinates 12
Interconnection list 12
CLAAS standard: 13
2 Central terminal compartment
Overview 15
Top view 16
Bottom view 17
Electronic components 18
Modules 18
Fuses 19
Relay 21
3 Modules
Module representation 23
Overview 1 24
Overview 2 25
Module representation 26
Module A6 – Automatic air conditioner 26
Cab fan speed controller module A7 29
Module A9 – Autopilot 30
Module A10 – Fieldwork computer (CAB) 32
Module A11 – Contour 35
Module A14 – Intake controller 38
Module A15 – Electronic engine control DC 40
Module A17 – Engine adaptation (ADM) 41
Module A24 – Sharpening / Shear bar adjustment (GGS) 42
Module A30 – CIS terminal 44
Module A49 – Ground drive module 45
Module A53 – Adaptation (FEM) ISO bus 49
Module A54 – Yield meter (FEM) 51
Module A73 – Discharge / additive control module 53
Module A76 – Metal detector 55
4 Circuit diagrams
01a Main power supply, Diesel engine electric starting motor,
Reversing horn 57
Circuit diagram (DIN A3) 58
Key to diagram 59
Measuring value table 59
Discription of function 60
Connector pin assignment 61
Interconnection list 61
4 000 293 682 2 – SYS-E JAGUAR 493 – 10/06
6368
02a Starting the diesel engine, diesel engine speed adjustment 63
Circuit diagram (DIN A3) 64
Key to diagram 65
Measuring value table 65
Discription of function 66
Connector pin assignment 67
Interconnection list 67
03a Diesel engine cut-off system 69
Circuit diagram (DIN A3) up to serial no 49300020 diesel engine
with exhaust gas standard TIER 2 70
Key to diagram 71
Measuring value table 71
Discription of function 72
Connector pin assignment 73
Interconnection list 73
03b Diesel engine monitoring 75
Circuit diagram (DIN A3) from serial no 49300021 diesel engine
with exhaust gas standard TIER 3 76
Key to diagram 77
Measuring value table 77
Discription of function 78
Connector pin assignment 79
Interconnection list 79
04a Road travel circuit, circulation lock valve 81
Circuit diagram (DIN A3) 82
Key to diagram 83
Measuring value table 83
Discription of function 84
Connector pin assignment 85
Interconnection list 85
05a Terminal, keyboard 87
Circuit diagram (DIN A3) 88
Key to diagram 89
Discription of function 89
Connector pin assignment 89
Interconnection list 89
06a CAN bus 91
Circuit diagram (DIN A3) 92
Key to diagram 93
Measuring value table 94
CAN bus network 94
Measured value table 50 kB CAN BUS vehicle (CLAAS CAN BUS) 95
Measured value table J1939 CAN bus 95
Measured value table ISO 11783 CAN bus 95
Description of function 96
Connector pin assignment 97
Interconnection list 98
000 293 682 2 – SYS-E JAGUAR 493 – 10/06 5
6368
07a Main drive 101
Circuit diagram (DIN A3) 102
Key to diagram 103
Measuring value table 103
Discription of function 104
Connector pin assignment 105
Interconnection list 105
09a Sharpening device without automatic shear bar adjustment 107
Circuit diagram (DIN A3) 108
Key to diagram 109
Measuring value table 110
Discription of function 110
Connector pin assignment 111
Interconnection list 111
09b Sharpening device with automatic shear bar adjustment 113
Circuit diagram (DIN A3) 114
Key to diagram 115
Measuring value table 115
Discription of function 116
Connector pin assignment 117
Interconnection list 117
10a Automatic shear bar adjustment 119
Circuit diagram (DIN A3) 120
Key to diagram 121
Measuring value table 121
Discription of function 122
Connector pin assignment 123
Interconnection list 124
11a Corn cracker adjustment 125
Circuit diagram (DIN A3) 126
Key to diagram 127
Measuring value table 127
Discription of function 128
Connector pin assignment 129
Interconnection list 129
13a Automatic upper discharge chute rotation 131
Circuit diagram (DIN A3) 132
Key to diagram 133
Measuring value table 133
Discription of function 134
Connector pin assignment 135
Interconnection list 135
14a Upper discharge chute rotation, upper discharge chute raise/lower 137
Circuit diagram (DIN A3) 138
Key to diagram 139
Measuring value table 139
Discription of function 140
Connector pin assignment 141
6 000 293 682 2 – SYS-E JAGUAR 493 – 10/06
6368
Interconnection list 141
15a Discharge flap close / far 143
Circuit diagram (DIN A3) 144
Key to diagram 145
Measuring value table 145
Discription of function 146
Connector pin assignment 147
Interconnection list 147
17a Front attachment drive metal detector 149
Circuit diagram (DIN A3) 150
Key to diagram 151
Measuring value table 152
Discription of function 153
Connector pin assignment 155
Interconnection list 155
17b Front attachment drive metal detector 157
Circuit diagram (DIN A3) 158
Key to diagram 159
Measuring value table 160
Discription of function 161
Connector pin assignment 163
Interconnection list 165
18a Stone detector 167
Circuit diagram (DIN A3) 168
Key to diagram 169
Measuring value table 169
Discription of function 170
Connector pin assignment 171
Interconnection list 171
19a Reel variable speed drive 173
Circuit diagram (DIN A3) 174
Key to diagram 175
Measuring value table 175
Discription of function 175
Connector pin assignment 176
Interconnection list 176
20a Raise / lower front attachment, with cross levelling 179
Circuit diagram (DIN A3) 180
Key to diagram 181
Measuring value table 181
Discription of function 182
Connector pin assignment 183
Interconnection list 183
21a Additional control unit 1 – Raise / lower roller crop press,
raise / lower reel 185
Circuit diagram (DIN A3) 186
Key to diagram 187
Measuring value table 187
000 293 682 2 – SYS-E JAGUAR 493 – 10/06 7
6368
Discription of function 188
Connector pin assignment 188
Interconnection list 189
21b Additional controller 2 – Hydraulic fore and aft reel adjustment,
additional hitch controller 191
Circuit diagram (DIN A3) 192
Key to diagram 193
Measuring value table 193
Discription of function 193
Connector pin assignment 194
Interconnection list 194
24a Contour / Autocontour, pitching dampening 195
Circuit diagram (DIN A3) 196
Key to diagram 197
Measuring value table 198
Discription of function 198
Connector pin assignment 200
Interconnection list 201
25a Direct Disc / speed monitoring 203
Circuit diagram (DIN A3) 204
Key to diagram 205
Measuring value table 205
Discription of function 205
Connector pin assignment 206
Interconnection list 207
26a Machine monitoring 209
Circuit diagram (DIN A3) 210
Key to diagram 211
Measuring value table 211
Discription of function 212
Connector pin assignment 213
Interconnection list 213
27a Yield meter (FEM) 215
Circuit diagram (DIN A3) 216
Key to diagram 217
Measuring value table 217
Discription of function 217
Connector pin assignment 218
Interconnection list 218
28a Autopilot – Touch sensor system 219
Circuit diagram (DIN A3) 220
Key to diagram 221
Measuring value table 222
Discription of function 223
Connector pin assignment 224
Interconnection list 225
8 000 293 682 2 – SYS-E JAGUAR 493 – 10/06
6368
28b Autopilot – Laser 227
Circuit diagram (DIN A3) 228
Key to diagram 229
Measuring value table 230
Discription of function 230
Connector pin assignment 230
Interconnection list 232
29a All-wheel drive, Central lubrication system, Servo gearshift 233
Circuit diagram (DIN A3) 234
Key to diagram 235
Measuring value table 235
Discription of function 235
Connector pin assignment 236
Interconnection list 237
31a Turn signal indicator system – Europe 239
Circuit diagram (DIN A3) 240
Key to diagram 241
Measuring value table 241
Discription of function 241
Connector pin assignment 242
Interconnection list 243
31b Turn signal indicator system – USA 247
Circuit diagram (DIN A3) 248
Key to diagram 249
Measuring value table 249
Discription of function 250
Connector pin assignment 250
Interconnection list 251
32a Main lighting circuit, taillight, position light 255
Circuit diagram (DIN A3) 256
Key to diagram 257
Measuring value table 257
Discription of function 258
Connector pin assignment 258
Interconnection list 259
33a Low beam, high beam, warning beacons 261
Circuit diagram (DIN A3) 262
Key to diagram 263
Measuring value table 263
Discription of function 264
Connector pin assignment 264
Interconnection list 264
34a Worklights 1 265
Circuit diagram (DIN A3) 266
Key to diagram 267
Measuring value table 267
Discription of function 267
Connector pin assignment 267
000 293 682 2 – SYS-E JAGUAR 493 – 10/06 9
6368
Interconnection list 268
34b Worklights 2 269
Circuit diagram (DIN A3) 270
Key to diagram 271
Measuring value table 271
Discription of function 271
Connector pin assignment 271
Interconnection list 272
35a Signal horn, brake light 273
Circuit diagram (DIN A3) 274
Key to diagram 275
Measuring value table 275
Discription of function 275
Connector pin assignment 276
Interconnection list 276
36a Instrument lighting, radio, mirror adjustment 277
Circuit diagram (DIN A3) 278
Key to diagram 279
Discription of function 279
Connector pin assignment 279
Interconnection list 280
37a Windscreen wiper, Windscreen washer 281
Circuit diagram (DIN A3) 282
Key to diagram 283
Discription of function 283
Connector pin assignment 283
Interconnection list 285
38a Compressor-type air conditioner 287
Circuit diagram (DIN A3) 288
Key to diagram 289
Measuring value table 289
Discription of function 289
Connector pin assignment 290
Interconnection list 290
38b Automatic air conditioner 291
Circuit diagram (DIN A3) 292
Key to diagram 293
Measuring value table 294
Discription of function 295
Connector pin assignment 301
Interconnection list 301
39a Silaging agent system 303
Circuit diagram (DIN A3) 304
Key to diagram 305
Measuring value table 305
Discription of function 306
Connector pin assignment 307
Interconnection list 307
10 000 293 682 2 – SYS-E JAGUAR 493 – 10/06
6368
40a Additional sockets, fuse tester 309
Circuit diagram (DIN A3) 310
Key to diagram 311
Discription of function 311
Connector pin assignment 311
Interconnection list 312
42a Trailer brake system 313
Circuit diagram (DIN A3) 314
Key to diagram 315
Discription of function 315
Connector pin assignment 316
Interconnection list 316
43a Electro-hydraulic ground drive (EFA) 317
Circuit diagram (DIN A3) 318
Key to diagram 319
Measuring value table 319
Discription of function 321
Connector pin assignment 322
Interconnection list 323
5 Diagnosis
Self-propelled forage harvester fault list, sorted by fault number 325
CIS fault code table for Jaguar Type 492 and 493 325
6 Location of components
Overview (DIN A3) 353
Figures 353

FILE DETAILS:

CLAAS Forage Harvesters JAGUAR 900-830 Profistar (Type 493) 900-830 Speedstar (Type 493)Electric Technical Systems Manual – PDF DOWNLOAD

Language : English
Pages :316
Downloadable : Yes
File Type : PDF
Size:15.3 MB

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
