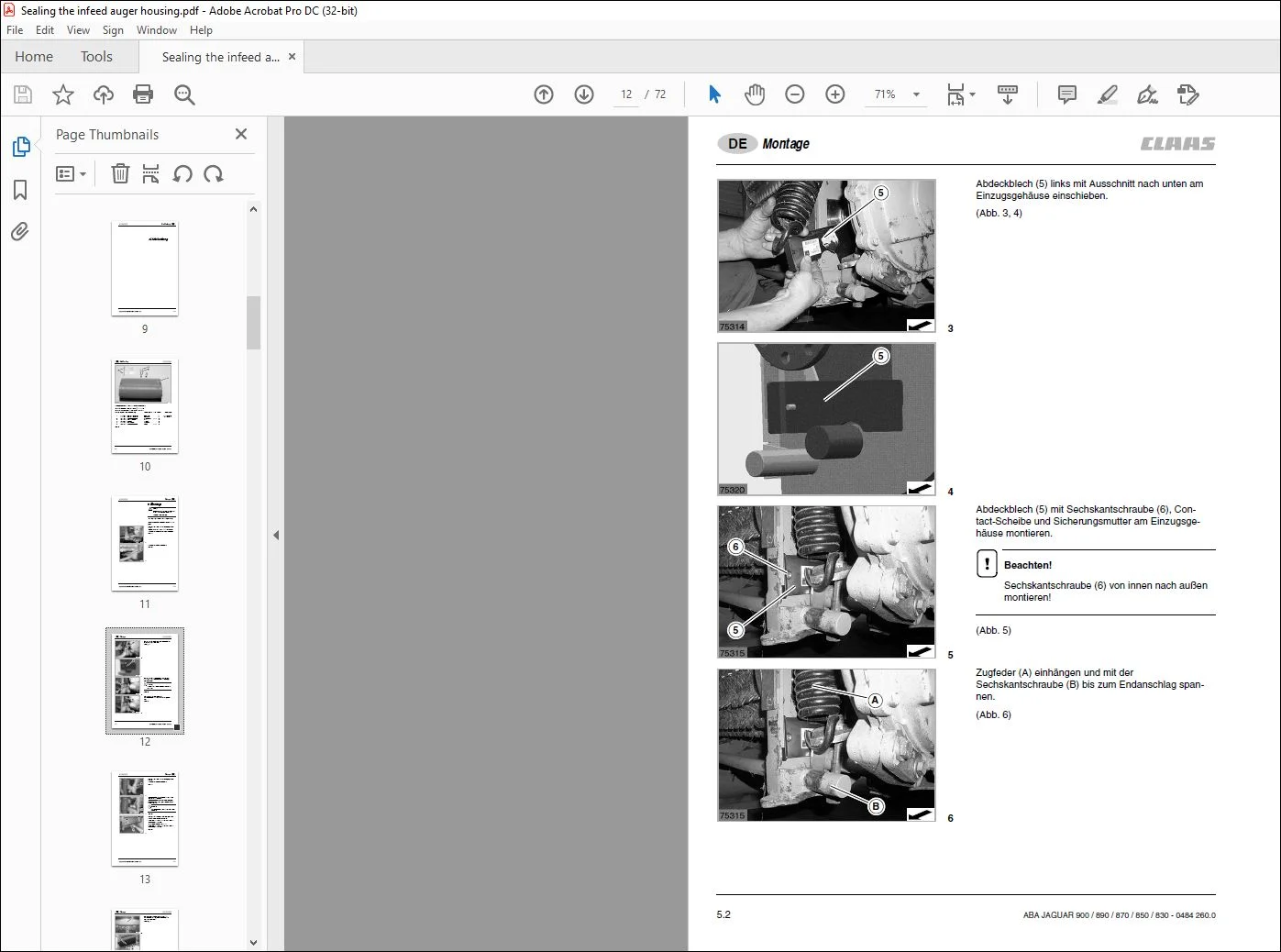

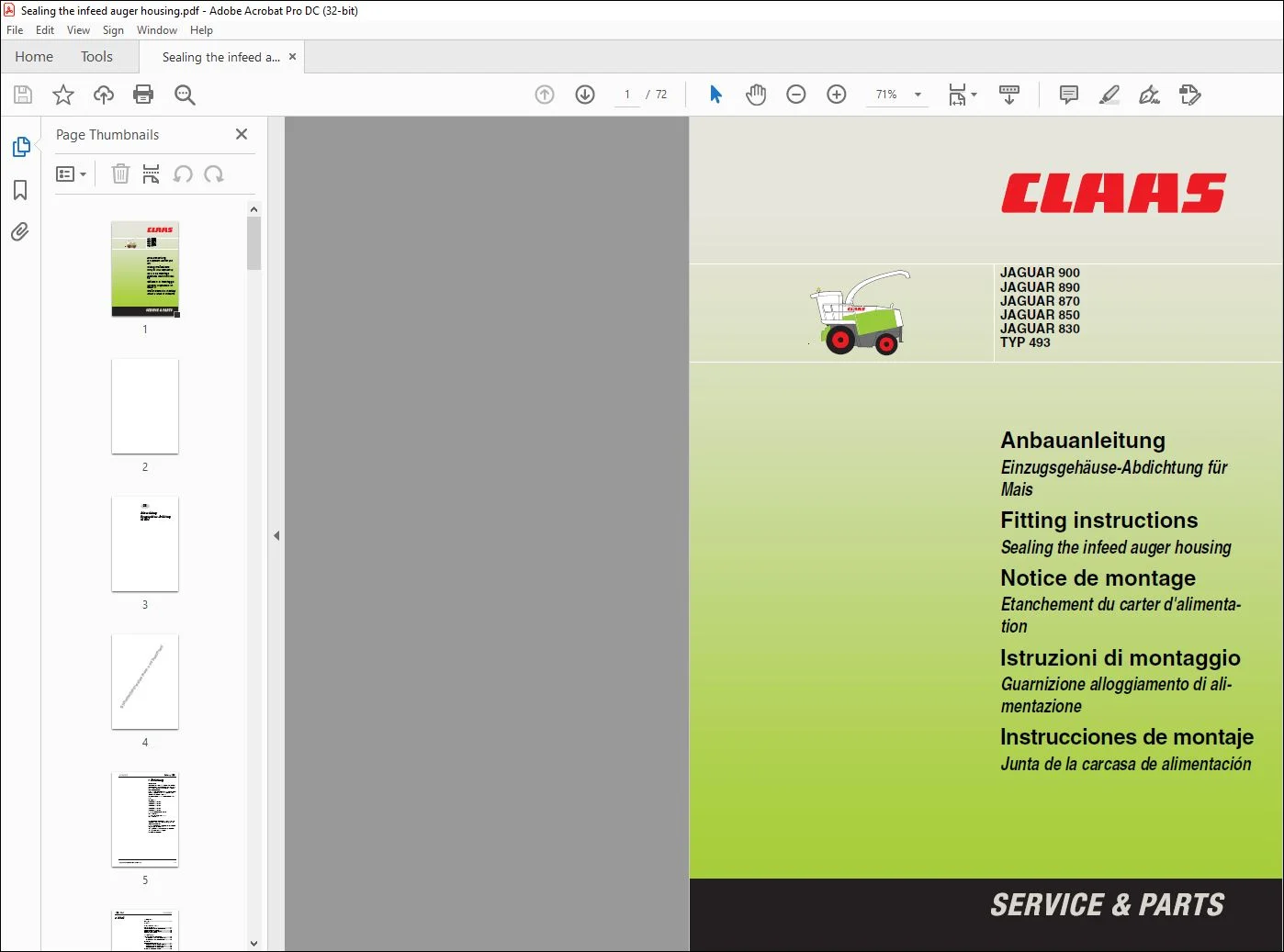

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvesters JAGUAR 900 890 870 850 830 TYP 493 Sealing the infeed auger housing Fitting instructions Manual_DE_EN_FR_IT_RU – PDF DOWNLOAD

INTRODUCTION
This instruction manual describes the safe and
time-saving sequence of operations for fitting using the
fitting kit Part No. 0495 352.0 or Part No. 0495 809.0
(sealing the infeed auger housing).
This instruction manual should therefore be read thoroughly
before starting work! Pay particular attention to
the section »General instructions«.
The following machines / equipment can be modified:
Forage harvester:
JAGUAR 900 (Type 493)
JAGUAR 890 (Type 493)
JAGUAR 870 (Type 493)
JAGUAR 850 (Type 493)
JAGUAR 830 (Type 493)
up to serial number 493 0 0010:
Kit No.: 0495 352.0
from serial number 493 0 0011:
Kit No.: 0495 809.0
The scope of supply is shown on page 4.2. Make sure
that the fitting kit is complete before starting work.
The list “Package list” should be considered as part of
the spare parts list.
The old components which are not needed for the
assembly work should be disposed of in an environmentally-
friendly way.

TABLE OF CONTENTS:

CLAAS Forage Harvesters JAGUAR 900 890 870 850 830 TYP 493 Sealing the infeed auger housing Fitting instructions Manual_DE_EN_FR_IT_RU – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Package list
Package list of sealing infeed auger housing 42
Kit: 0495 3520 up to serial number 493 0 0010 42
Kit: 0495 8090 from serial number 493 0 0011 42
5 Fitting
Fitting the infeed auger housing seal 51
Fitting the cover plate on the left of the infeed
auger housing 51
Fitting the cover plate on the right of the infeed
auger housing 53
Fitting the Ground Plate to the infeed auger housing 53
Prior to operation check and observe!
