CLAAS Forage Harvesters RU 600 Contour 600 Auto Contour 600 Xtra 3-Tip Skid Fitting instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

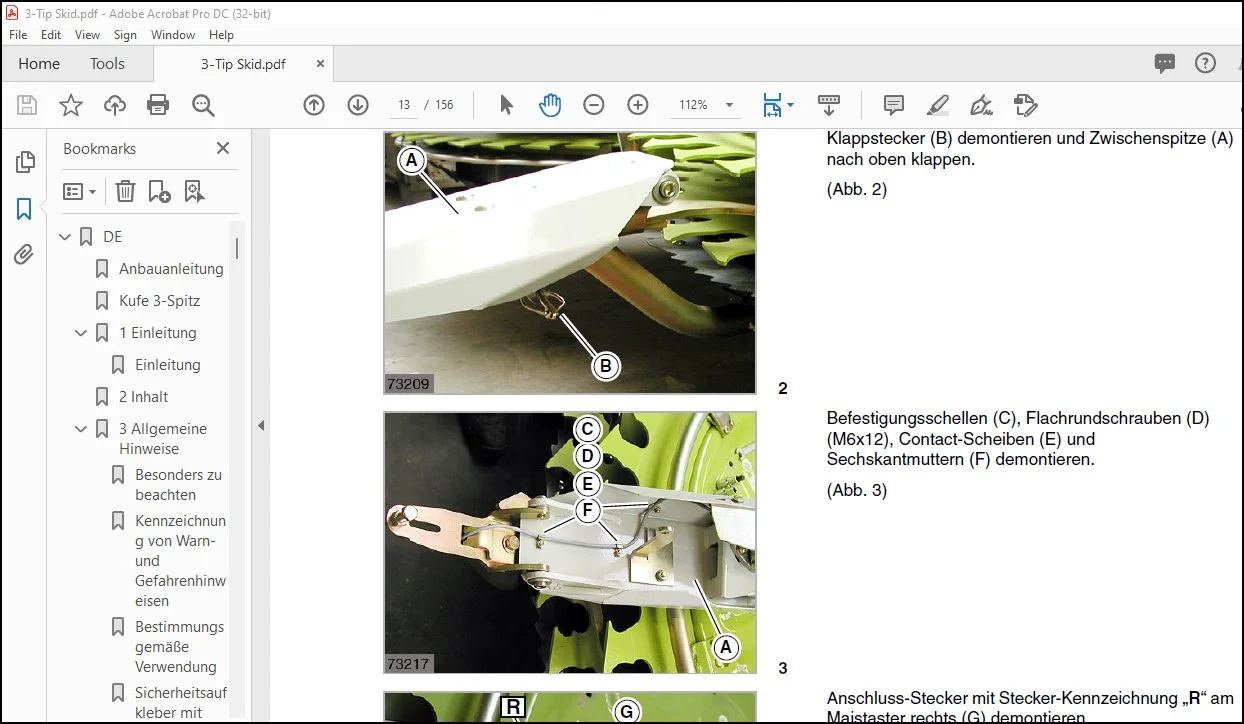

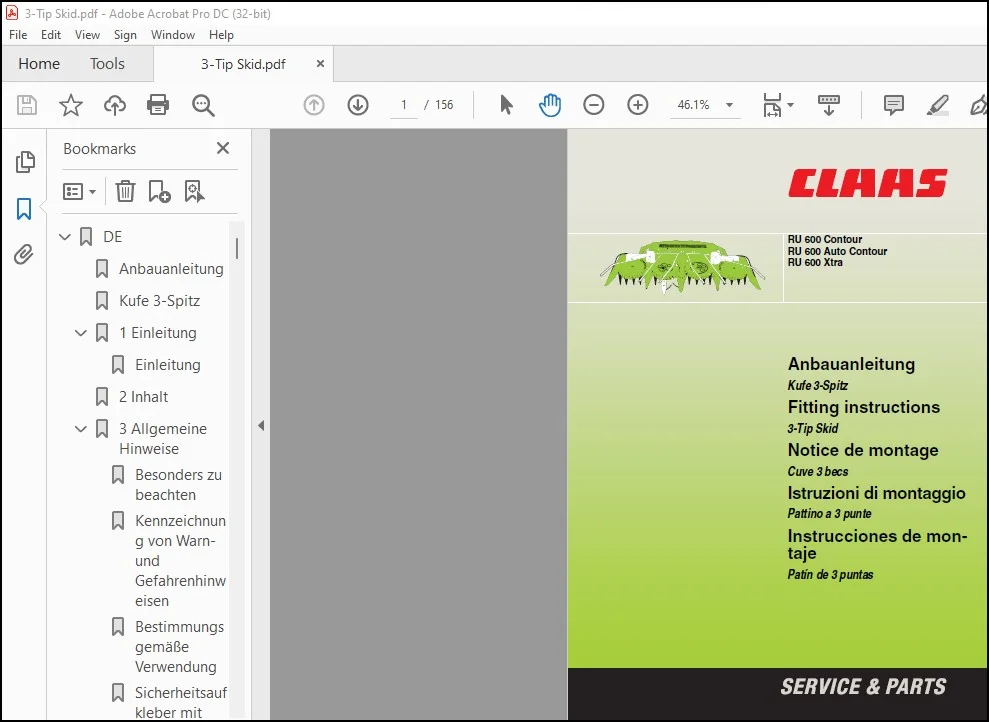

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CLAAS Forage Harvesters RU 600 Contour 600 Auto Contour 600 Xtra 3-Tip Skid Fitting instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD\

General instructions
Safety precautions

Work may be carried out only by specialist
workshops authorised by CLAAS and having
qualified personnel.
The general safety, accident prevention and environmental
protection regulation must be observed.
Read and observe the Safety chapter in the Operator’s
manual.
Carry out work under the raised machine/front attachment
or raised components only when a safe support
is provided.
Before carrying out work on the hydraulic system,
lower machine/front attachment and hydraulically
actuated components to the ground. Depressurise
the system.
All work must be carried out with the drive disengaged
and the engine stopped! – Remove the
ignition key!
Relieve the tension of pre-loaded energy accumulators
(springs, accumulators, hydraulic cylinders) and
of components which are pre-loaded by energy accumulators
properly prior to starting installation work!
Check the tight seat of all bolts after assembly.
Carry out a function test.

TABLE OF CONTENTS:

CLAAS Forage Harvesters RU 600 Contour 600 Auto Contour 600 Xtra 3-Tip Skid Fitting instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Einleitung
Einleitung 11
2 Inhalt
3 Allgemeine Hinweise
Besonders zu beachten 31
Kennzeichnung von Warn- und Gefahrenhinweisen 31
BestimmungsgemÀße Verwendung 32
Sicherheitsaufkleber mit Warnbildzeichen 32
Allgemeine Sicherheitshinweise 32
4 Lieferumfang
Lieferumfang fΓΌr RU 600 Contour / Auto Contour / Xtra 43
Anbausatz Kufe 3-Spitz 0498 7162 43
5 Demontage Kufe 4-Spitz
Demontage bei VorsatzgerΓ€ten mit Autopilot oder
Lagermaisspitzen 52
Spitzen demontieren 54
6 Montage Kufe 3-Spitz
Montage Halter 61
RU 600 Contour / Auto Contour / Xtra bis
Maschinen-Nr 661 0 2114 (Halter geschweißt) 61
RU 600 Contour / Auto Contour / Xtra
ab Maschinen-Nr 661 0 2115 (Halter geschraubt) 62
Montage TrΓ€ger 62
Montage Kufen 62
Montage bei VorsatzgerΓ€ten mit Autopilot und/oder
Lagermaisspitzen 63
Montage Rohr 63
Montage Halterung 63
Zwischenspitze montieren 64
Spitzen montieren 65
Vor Inbetriebnahme prΓΌfen und beachten! 67
Anbauvarianten – Spitzen 68
Variante 1 69
Variante 2 611
Variante 3 613
Variante 4 615
1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Shipping package
Shipping Package for RU 600 Contour /
Auto Contour / Xtra 43
Mounting Kit 3-Tip Skid 0498 7162 43
5 Dismantling 4-Tip Skid
Dismantling in the case of front attachments
with autopilot or down maize tips 52
Dismantling Tips 54
6 Fitting 3-Tip Skid
Fitting holder 61
RU 600 Contour / Auto Contour / Xtra up to
serial No 661 0 2114 (Holder soldered) 61
RU 600 Contour / Auto Contour / Xtra as
from serial No 661 0 2115 (Holder bolted) 62
Fitting support 62
Fitting skids 62
Assembly in the case of front attachments
with autopilot and / or down maize tips 63
Fitting tube 63
Fitting bracket 63
Assembling intermediate tip 64
Assembling tips 65
Check and observe the following before putting
nto operation 67
Variants to be fitted – Tips 68
Variant 1 69
Variant 2 611
Variant 3 613
Variant 4 615
1 Introduction
Introduction 11
2 Table des matières
3 Conseils gΓ©nΓ©raux
Important 31
Identification des prescriptions concernant
les avertissements et les dangers 31
Utilisation conforme Γ  l’usage prΓ©vu 32
Etiquette de sΓ©curitΓ© avec
pictogramme de danger 32
Consignes de sΓ©curitΓ© gΓ©nΓ©rales 32
4 Pièces fournies
Pièces fournies pour RU 600 Contour /
Auto Contour / Xtra 43
Charge portΓ©e cuve 3 becs 0498 7162 43
5 DΓ©montage cuve 4 becs
DΓ©montage sur des outils portΓ©s avec
pilote automatique ou becs maΓ―s Γ  stockage 52
DΓ©monter les becs 54
6 Montage cuve 3 becs
Montage du support 61
RU 600 Contour / Auto Contour / Xtra jusqu’Γ  l
a machine NΒ° 661 0 2114 (support soudΓ©) 61
RU 600 Contour / Auto Contour / Xtra Γ  partir
de la machine NΒ° 661 0 2115 (support vissΓ©) 62
Montage du porteur 62
Montage des becs 62
Montage sur les outils portΓ©s avec
pilote automatique et/ou becs maΓ―s Γ  stockage 63
Montage du tube 63
Montage de la fixation 63
Monter le bec intermΓ©diaire 64
Monter les becs 65
VΓ©rifier les points suivants avant la
mise en service de la machine ! 67
Variantes de montage – Pointes 68
Variante 1 69
Variante 2 611
Variante 3 613
Variante 4 615
1 Introduzione
Introduzione 11
2 Indice
3 Indicazioni generali
Avvertenze importanti 31
Simbologia concernente gli avvertimenti e gli
avvisi di pericolo 31
Norme per il corretto impiego 32
Decalcomanie con simboli di pericolo 32
Indicazioni generali per la sicurezza 32
4 Complessivo di fornitura
Complessivo di fornitura per
RU 600 Contour / Auto Contour / Xtra 43
Set di montaggio pattino a 3 punte 0498 7162 43
5 Smontaggio del pattino a 4 punte
Smontaggio con testate con pilota automatico
o punte da mais allettato 52
Smontaggio delle punte 54
6 Montaggio del pattino a 3 punte
Montaggio dei sostegni 61
RU 600 Contour / Auto Contour / Xtra
fino alla macchina Nr 661 0 2114
(sostegni saldati) 61
RU 600 Contour / Auto Contour / Xtra
dalla macchina Nr 661 0 2115
(sostegni avvitati) 62
Montaggio del supporto 62
Montaggio dei pattini 62
Montaggio con testate con pilota automatico
e/o punte da mais allettato 63
Montaggio del tubo 63
Montaggio dell’attacco 63
Montaggio delle punte intermedie 64
Montaggio delle punte 65
Prima della messa in campo, controllare
e osservare! 67
Varianti di montaggio – Punte 68
Variante 1 69
Variante 2 611
Variante 3 613
Variante 4 615
1 IntroducciΓ³n
IntroducciΓ³n 11
2 Contenido
3 Indicaciones generales
A observar en especial 31
IdentificaciΓ³n de indicaciones de advertencia y
de peligro 31
UtilizaciΓ³n conforme a las normas previstas 32
RΓ³tulo adhesivo de seguridad con sΓ­mbolo de advertencia 32
Indicaciones generales de seguridad 32
4 Conjunto de suministro
Ámbito de suministro para
RU 600 Contour / Auto Contour / Xtra 43
Juego de acoplamiento de patΓ­n de 3 puntas 0498 7162 43
5 Desmontaje PatΓ­n de 4 puntas
Desmontaje en cabezales con Autopilot
o puntas para maΓ­z de ensilaje 52
Desmontar puntas 54
6 Montaje PatΓ­n de 3 puntas
Montaje de soporte 61
RU 600 Contour / Auto Contour / Xtra hasta
el NΒΊ de mΓ‘quina 661 0 2114 (Soporte soldado) 61
RU 600 Contour / Auto Contour / Xtra a partir
del NΒΊ de mΓ‘quina 661 0 2115 (Soporte atornillado) 62
Montaje de soporte portador 62
Montaje de patines 62
Montaje en cabezales con Autopilot o puntas
para maΓ­z de ensilaje 63
Montaje del tubular 63
Montaje de soporte 63
Montar punta intermedia 64
Montar puntas 65
Antes de la puesta en marcha, compruebe
y observe el cabezal 67
Variantes de montaje – Puntas 68
Variante 1 69
Variante 2 611
Variante 3 613
Variante 4 615
