CLAAS GRAMMER MSG95EL Seat Suspension Service Manual PDF

Description

CLAAS GRAMMER seat suspension MSG95EL Repair Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS GRAMMER seat suspension MSG95EL Repair Manual – PDF DOWNLOAD

Notes on these instructions

This repair manual includes information and instructions on how to perform repair work on the seat suspension MSG95EL of GRAMMER seats. The repair of the upper seat part is described in the repair manual for the upper seat part S721 – S742, to which a reference is made, if required.

Example:

Remove the cable of the seat occupancy detection system at the upper seat part (see repair manual for upper seat part). The seat suspension MSG95EL forms the basis for illustrations in this repair manual.

• In the case of technical deviations in work procedures (due to different seat suspension designs), refer to the current text or individual chapters of the manual. Each chapter starts with a list of all preparatory work to be completed before starting repair.
• These preparations are described in separate chapters and shall be carried out without the preparatory steps described there.
• At the beginning of each description for repair you will find an overview diagram. All parts included in the overview diagrams within one chapter are consecutively numbered starting with “1”.
• Each component is referred to by the same number throughout the document. With the help of these overview diagrams, an experienced technician will gain a quick overview
• For spare part orders, please use the numbers stated in the latest issue of the relevant spare parts catalogue. The description of the work procedures refers to the removed seat suspension and the dismounted upper part of seat. Depending on the individual installation situation, some work may also be performed on the installed seat suspension and/or with
• upper seat part. For this reason, check the environment of the installed seat suspension for this possibility before starting work. The safety instructions of the specific vehicle manufacturer and those stated in Chapter 1 of this repair manual must be strictly observed. This repair manual also includes some information on delivery options, if these require further
• explanation. Since the scope of delivery depends on the specific customer order, the actual seat suspension design may deviate from the descriptions and illustrations in this manual. The illustrated repair steps refer to the seat suspension for left-hand drive. Different work steps are to be performed laterally reversed when repairing vehicle models with right-hand
• drive. If not stated otherwise, the directional indications “front, back” and “right, left” refer to the installed seat suspension regarded in the driving direction of the vehicle. The document layout is suitable for later use of this repair manual via CD-
• ROM / INTERNET / INTRANET. A navigation line was entered below the heading for this. This navigation line includes the Chapter titles and it allows the user to jump directly to these Chapters after the corresponding hyperlinks have been set.

TABLE OF CONTENTS:

CLAAS GRAMMER seat suspension MSG95EL Repair Manual – PDF DOWNLOAD

Preliminary remarks
1 Description
1.1 Safety instructions
1.2 Rating plate
2 Diagnosis
2.1 Overview of components
2.2 Functional test – Testing the specified status of functions
2.3 Overview of faults – Pointing out possible faults that might occur
2.4 Fault diagnosis – Locating the fault
3 Repair work
3.1 Seat suspension – removal and installation (replacement of seat suspension)
3.2 Front cover – removal and installation
3.3 Top cover – removal and installation
3.4 Bellows – removal and installation
3.5 Height adjustment module – removal and installation
3.6 Vertical shock absorber – removal and installation
3.7 Longitudinal horizontal shock absorber – removal and installation
3.8 Fore/aft isolator unit – removal and installation
3.9 Handle for fore/aft isolator unit – removal and installation
3.10 Locking mechanism for fore/aft isolator unit – removal and installation
3.11 Compressor – removal and installation
3.12 Level control – removal and installation
3.13 Secondary belt – removal and installation
3.14 Air hoses – removal and installation
3.15 Air spring – removal and installation
3.16 Additional air supply – removal and installation
3.17 Cable harness of vehicle connection – removal and installation
3.18 Entire cable harness (incl. U-profile) – removal and installation
3.19 Cable harness of height adjustment / seat occupancy detection system – removal and installation
3.20 Upper part of suspension – removal and installation
3.21 Lower part of suspension – removal and installation
3.22 Swinging structure – disassembly and assembly
3.23 Worn parts – replacement

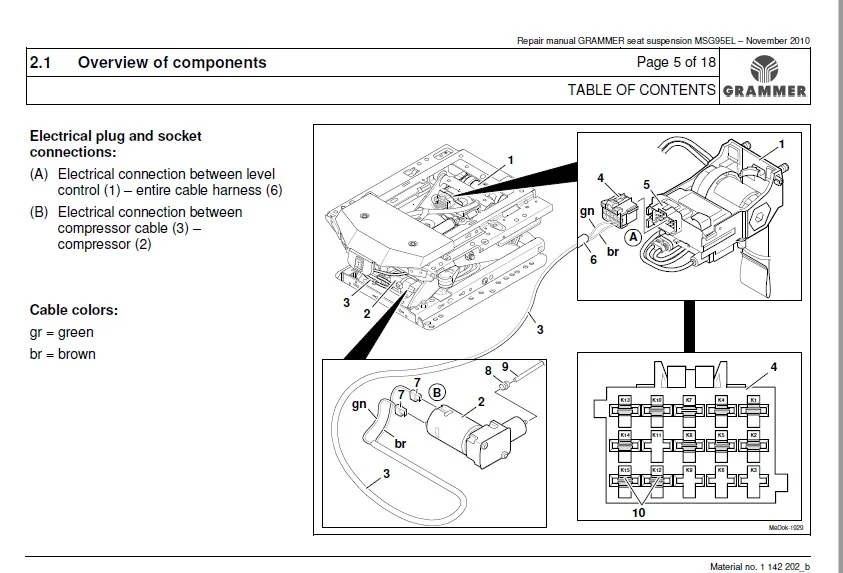

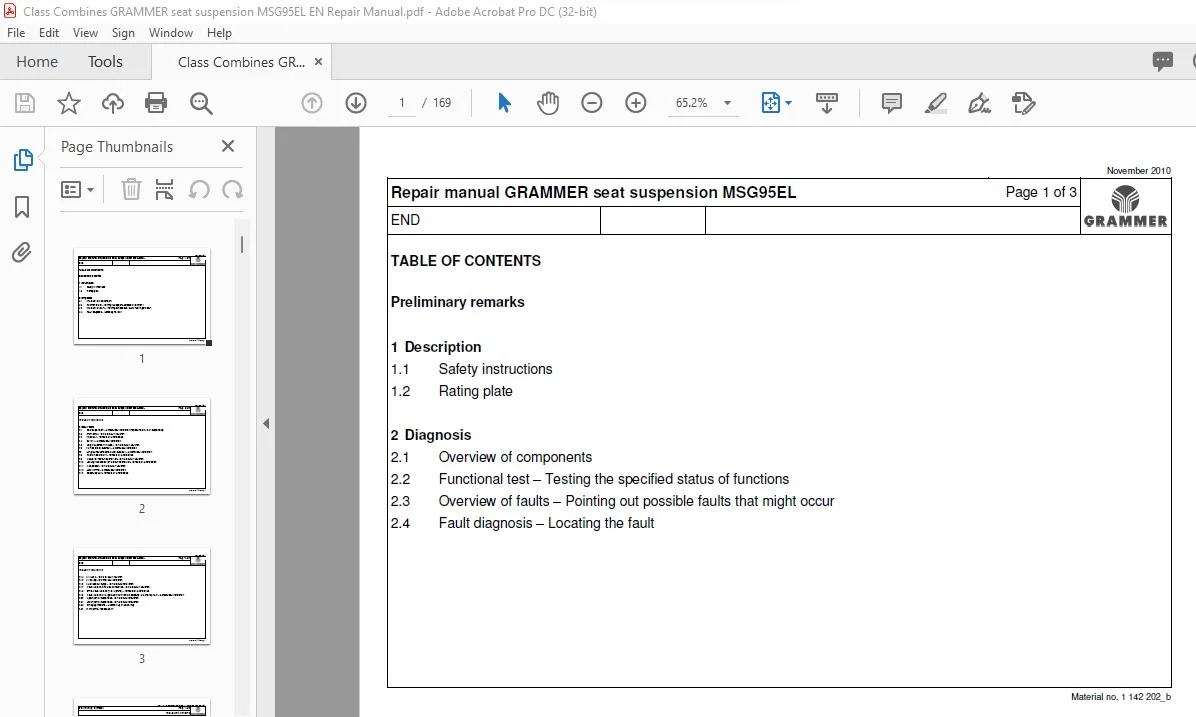

IMAGES PREVIEW OF THE MANUAL:

CLAAS GRAMMER SEAT SUSPENSION MSG95EL REPAIR MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
