CLAAS JAGUAR 880 – 820 Air ConditionerFitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

Description

DESCRIPTION:

CLAAS JAGUAR 880 – 820 Air ConditionerFitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These fitting instructions show how to fit the air conditioning system to the CLAAS JAGUAR 880 – 820 forage harvesters from machine number 49101036. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and contact washers. Text and pictures apply in general to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text
TABLE OF CONTENTS:

CLAAS JAGUAR 880 – 820 Air ConditionerFitting Instruction Manual_DE_EN_FR – PDF DOWNLOAD

1 Pipe 2
2 Air condition box 1
3 Rubber sleeve, large pipe / grommet C 21 2
4 Rubber sleeve, small pipe / grommet C 10 4
5 Suction line 2312 long 1
6 Tape (rubber) 40 x 2 x 500 long 1
7 Insulating strip (rubber sponge)
50 x 3 x 950 long 1
8 Pressure line 1772 long 1
9 Air conditioning rotary switch 1
Supplement 1
10 Pipe clamp (rubber bearing 18/10) 2
Fixing clamp 3 x 25 x 94 2
11 Bolt M 8 x 40 2
Contact washer A 8 2
12 Receiver drier 1
13 Hex bolt M 6 x 16 DIN 933-88 4
Hex nut M 6 2
Contact washer B 6 2
14 Condenser 650 x 570 x 45 1
15 Fixing bracket 30 x 5 x 107 4
16 Bolt M 8 x 20 DIN 933-88 4
Nut M 8 4
Contact washer B 8 8
17 Bolt M 8 x 20 DIN 933-88 4
Nut M 8 4
Contact washer A 8 4
18 Tension bolt RD 117 x 1265 1
Nut M 12 2
Washer 13 x 26 x 2 2
Split pin 5 x 22 1
19 Sanden oil compressor complete 1
20 Pipe clamp RS 112/2 1
21 Bolt M 12 x 120 DIN 933-88 1
Washer 13 x 26 x 3 2
Washer 13 x 22 x 1 1
Washer 13 x 26 x 2 3
Contact washer A 12 1
Nut M 12 1
22 Fork 1
23 Mushroom headed bolt DIN 603 M 8 x 25 2
Contact washer A 8 2
Hex nut M 8 2
24 Belt 13 x 8 x 1500 1
25 Pressure line cab / receiver drier 1
26 Suction line cab / compressor 1
27 Pressure line receiver drier / condenser 1
28 Pressure line condenser / compressor 1
29 Pipe clamp RSGU 124 4
30 Pipe clamp RSGU 117 2
31 Bolt M 8 x 30 DIN 933-88 2
Nut M 8 2
Contact washer A 8 2
32 Cable tie 5
33 Sticker 2

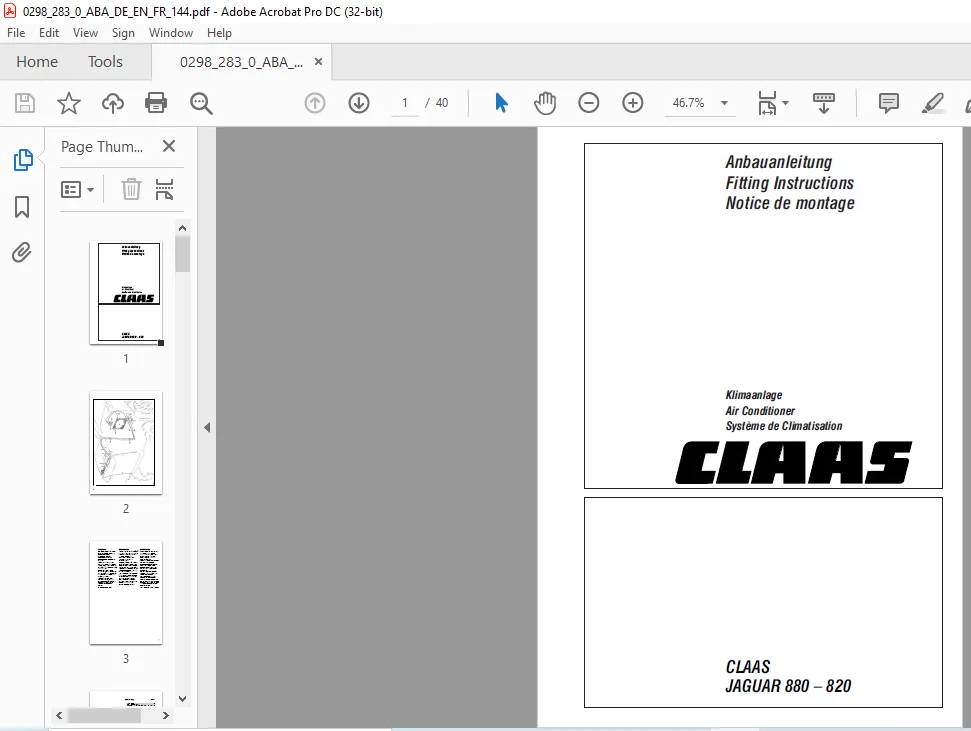

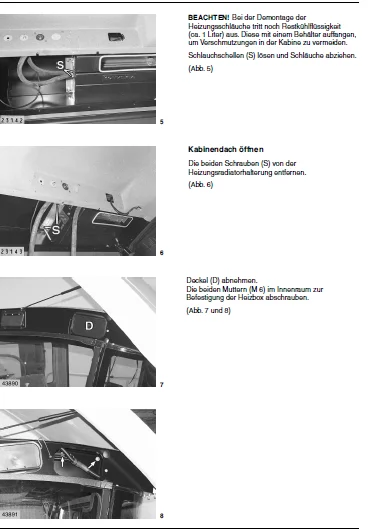

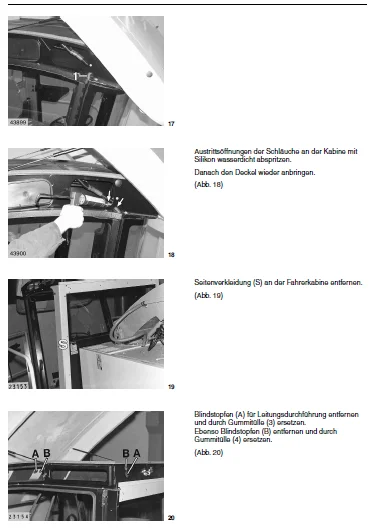

IMAGES PREVIEW OF THE MANUAL:
