CLAAS JAGUAR 880 – 820 CORN – CRACKER Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Description

CLAAS JAGUAR 880 – 820 CORN – CRACKER Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS JAGUAR 880 – 820 CORN – CRACKER Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

This manual hows the installation of the CLAAS Corn Cracker to the self-propelled forage harvester range CLAAS JAGUAR 880 — 820.
TABLE OF CONTENTS:

CLAAS JAGUAR 880 – 820 CORN – CRACKER Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
1 Corn Cracker 1
2 V-belt pulley 1
3 Back-up washer 35 x 45 mm DIN 988 3
4 Hex bolt M 16 x 45 mm DIN 933-88 1
Contact washer A 16 1
5 Cover 1
6 Tightener pulley 1
7 Washer 125 x 30,15 x 8 mm 1
8 Hex bolt M 12 x 110 DIN 931-88 1
Hex nut M 12 1
Contact washer S 12 1
9 Idler pulley arm 1
10 Washer 26 x 34 x 2 1
11 Split pin 63 x 40 mm 1
12 Bracket 1
13 Washer 23 x 34 x 2 1
14 Split pin 5 x 36 mm 1
15 Spring guide 1
16 Pressure spring 1
17 Threadek fork 1
18 Washer 13 x 40 x 6 1
19 Hex nut M 12 1
20 Pin 1
21 Washer 105 mm 1
22 Split pin 4 x 22 mm 1
23 V-belt pulley 1
24 Gib-head key 1
25 Power band belt

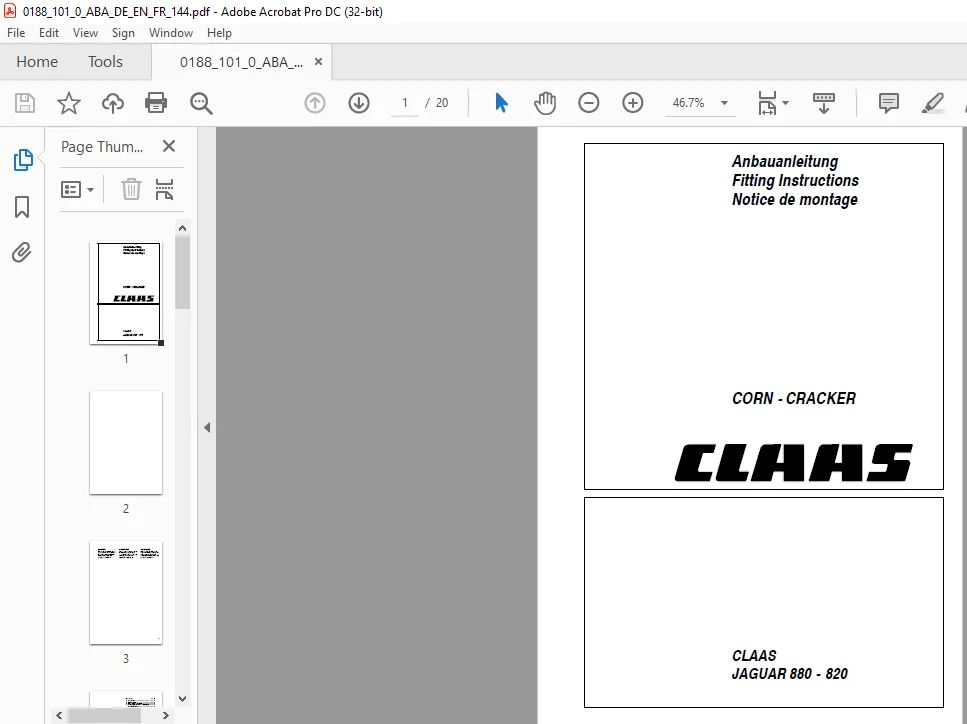

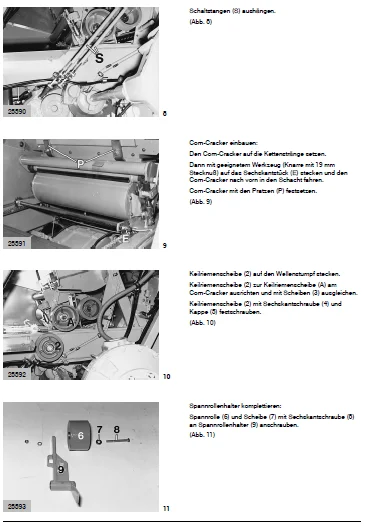

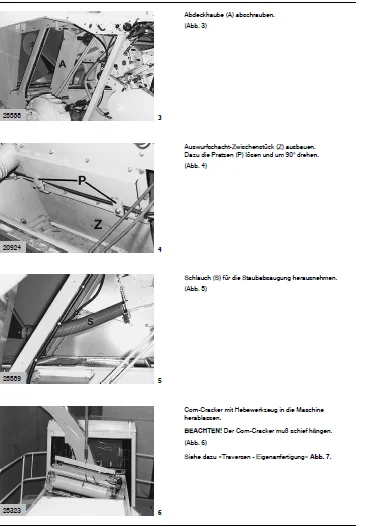

IMAGES PREVIEW OF THE MANUAL:
