CLAAS JAGUAR 880-820 Side screen wash wiper Fitting Instructions Manual DE_EN_FR

Description

CLAAS JAGUAR 880-820 Side screen wash wiper Fitting Instructions Manual DE_EN_FR – PDF DONWLOAD

DESCRIPTION:

CLAAS JAGUAR 880-820 Side screen wash wiper Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

These fitting instructions explain the procedure for installing the Side Screen Wash Wiper to the CLAAS Forage Harvester JAGUAR 880 – 820. On page 4 can be found the list of components required for the conversion. The numbers refer to the quantities required.

• Each major component is identified with a number. Each major component such as a bolt should be checked against the list of supplied components in order to determine quantity and relative components such as nuts and washers.
• The text and pictures are as accurate as possible. To determine the difference between different types of components, then please refer to the text description.

TABLE OF CONTENTS:

CLAAS JAGUAR 880-820 Side screen wash wiper Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Door right hand 1
2 Door left hand 1
3 Mounting plate welded 1
4 Shim 1
5 Cable channel 385 long 2
6 Cable channel 710 long 2
7 Double sided tape 12 x 1 5 1
8 Nozzle holder 82 x 40 x 1 5 2
9 PVC-hose 4 x 6 x 3750 long 1
10 PVC-hose 4 x 6 x 5500 long 1
11 Grommet A 10 x 13 5 x 4 6
12 Corrugated plastic tube NW 10 x 90 long 2
13 Corrugated plastic tube NW 10 x 500 long 2
14 Cable band min 4 7 x 188 long 12
15 Rivet A 4 x 8 8
16 Nozzle 2
17 Bracket 2 x 189 5 x 422 1
18 Slotted-rivet nut M 8 4
19 Hex bolt M 8 x 20 DIN 933-8 8 4
Contact-washer A 8 4
20 Electric pump 1
21 Adapter ring 1
22 Container with pump 1
23 Strap 2 x 30 x 550 1
24 Hex bolt M 8 x 30 DIN 933-8 8 2
Contact-washer A 8 2
Lock nut VM 8 2
25 Wiring loom — current supply 1
26 Spade fuse DIN 72581 — C 15 1
27 Socket head screw M 5 x 10 DIN 84 1
Spring washer 5 1
Hex nut M 5 DIN 934 1
28 Relay 12 V 1
29 Wiring loom — motors 1
30 Pipe clamp RS 1 12/20 2
31 Side wiper motor 2
32 Rubber washer 14 x 50 x 2 4
33 Rubber washer 14 2 19 x 3 4
34 Washer 16,5 x 50 x 1,5 4
35 Hex nut M 16 x 1 2
36 Cap 22 x 40 5 2
37 Cap 2
38 Wiper arm 2
39 Wiper blade 2
40 Washer 6,2 x 15 x 1 5 4
41 Rubber washer 5 x 19 x 3 4
42 Rubber washer 5 2 x 10 x 2 5 4
43 Hex bolt M 6 x 20 DIN 933-8 8 2
44 Hex guard cap M 6 GPN 1000 2
45 Side wiper cap left hand 1
46 Flat head bolt with gab M 6 x 12 2
47 Rocker switch 2
48 Insert 2
49 Side wiper cap right hand 1

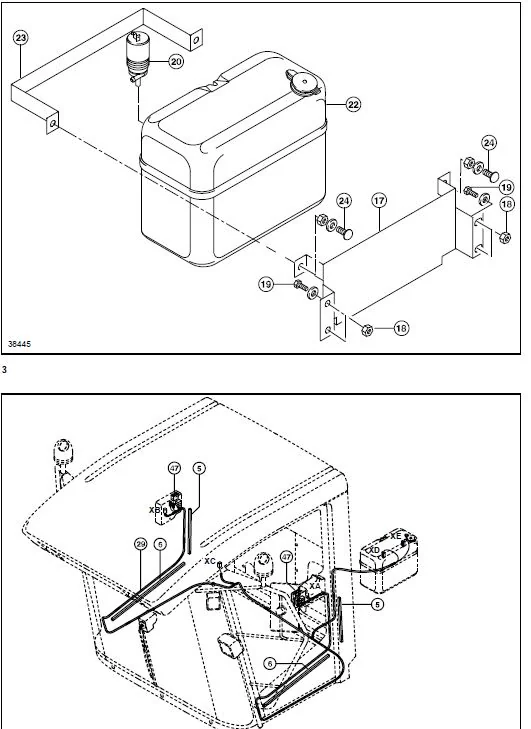

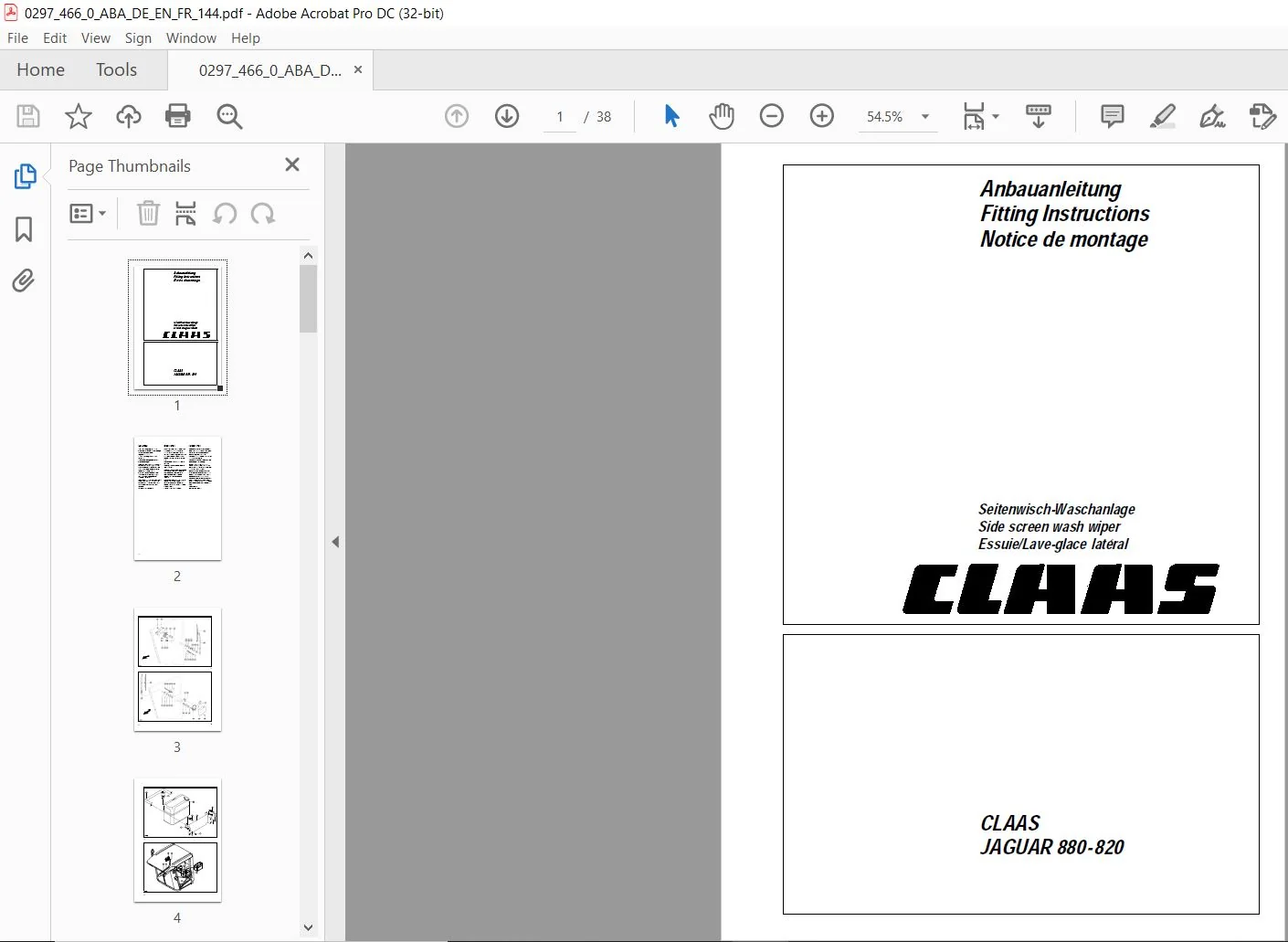

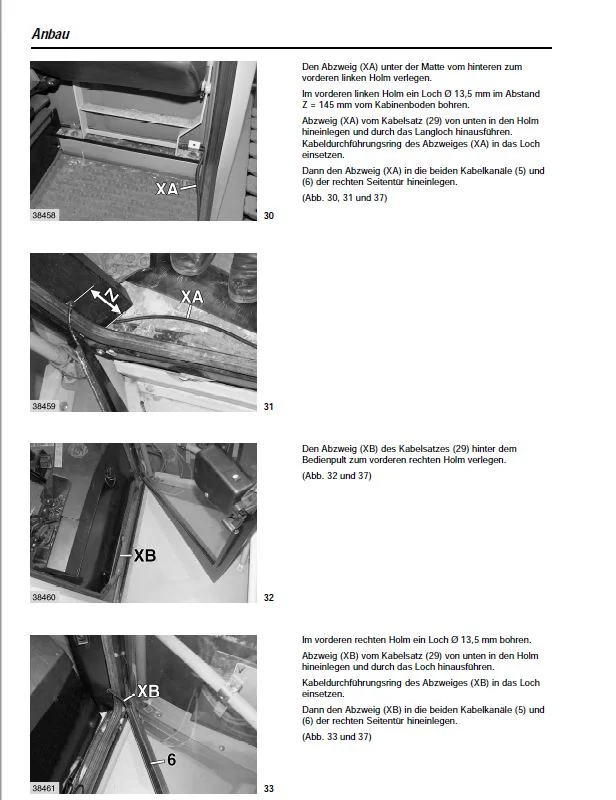

IMAGES PREVIEW OF THE MANUAL:

Customer Support: [email protected]

PLEASE NOTE:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.

S.V
