CLAAS JAGUAR 900 – 830 900 – 830 Profistar 900 – 830 Speedstar Technical & Electric System Service Manual – PDF DOWNLOAD

Description

CLAAS JAGUAR 900 – 830 900 – 830 Profistar 900 – 830 Speedstar Technical & Electric System Service Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS JAGUAR 900 – 830 900 – 830 Profistar 900 – 830 Speedstar Technical & Electric System Service Manual – PDF DOWNLOAD

Description of function:

Diesel engine electric starting motor To work as a starting interlock, relay K3 is connected to earth only when switches (Z50/Z57) on the ground speed control lever are in neutral position. The ignition lock (S64) then connects the electric starting motor of the diesel engine (M21) with +50a via relay K3.

Note:

• Switch (Z50) informs the fieldwork computer module (A10) about reverse travel so the area counter is stopped. Switch (Z50) informs the fieldwork computer module (A10) about forward travel so the autopilot and silaging agent functions are only then released.
• In addition, this signal automatically reduces the diesel engine speed to idle speed during road transport and neutral position of the ground speed control lever.
• The alternator (G2) informs the fieldwork computer module (A10) about the charging voltage in order to generate a corresponding error message in terminal A30 via the CAN bus if necessary.

TABLE OF CONTENTS:

CLAAS JAGUAR 900 – 830 900 – 830 Profistar 900 – 830 Speedstar Technical & Electric System Service Manual – PDF DOWNLOAD

Technical Systems 1
Build-up of electriccircuit diagram 3

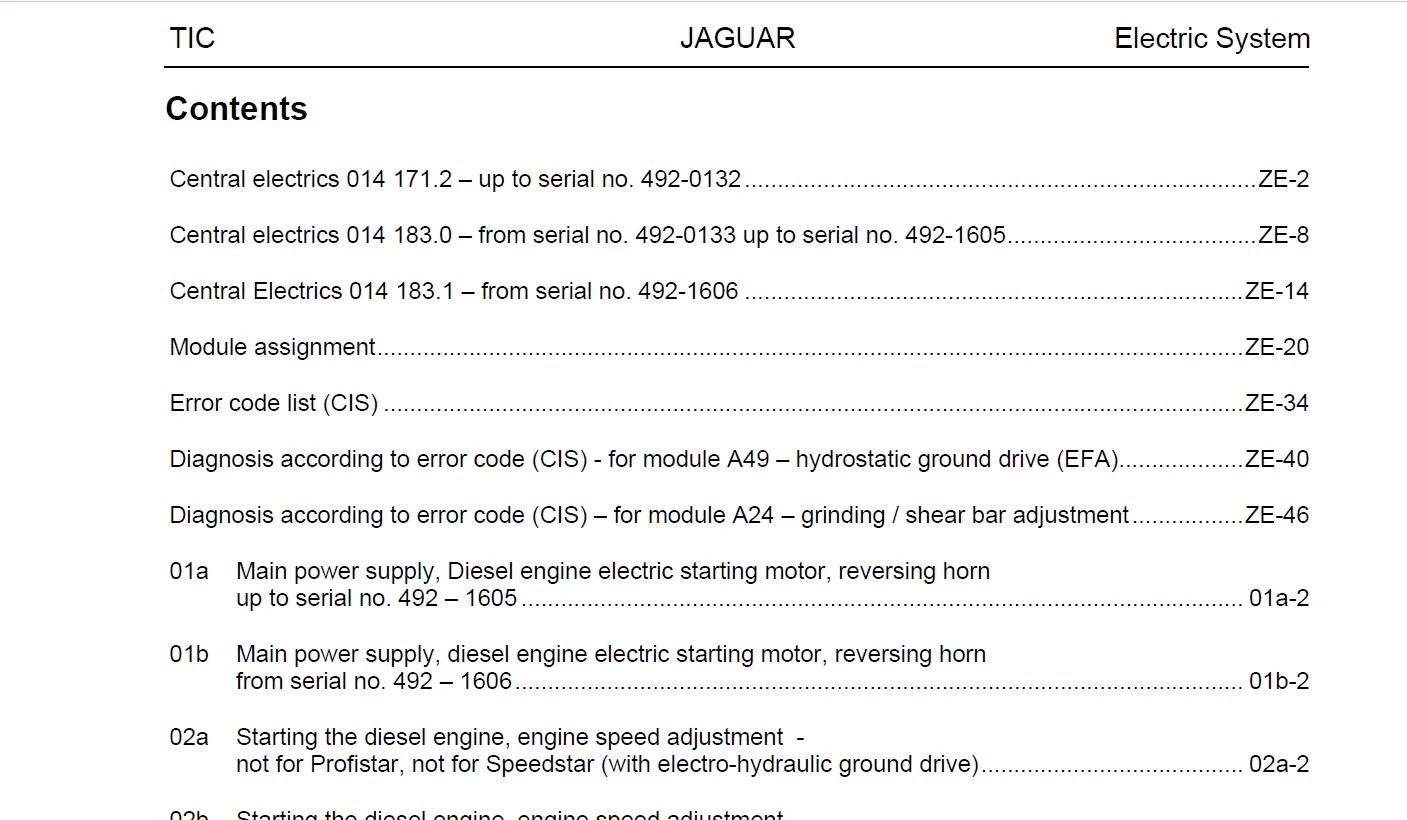

Contents 5
Central electrics 9
Central electrics 014 1712 – up to serial no 492-0132 10
Central electrics 014 1830 – from serial no 492-0133 up to serial no 492-1605 16
Central Electrics 014 1831 – from serial no 492-1606 22
Module assignment 27
Module assignment 28
Module A6 – Automatic air conditioner 29
Module A7 – Cab fan speed controller 29
Module A9 – AUTOPILOT (ATP) 30
Module A10 – Fieldwork computer (CAB) 31
Module A11 – CONTOUR 32
Module A14 – Intake controller 33
Module A15 – Electronic engine control module Daimler-Chrysler (DC) 34
Module A17 – Engine adaptation module ADM Daimler-Chrysler (DC) 34
Module A24 – Grinding / Shear bar adjustment (GGS) 35
Module A24 – Grinding / Shear bar adjustment (GGS) 35
Module A31 – Discharge controller 36
Module A49 – Ground drive (EFA) 37
Module A53 – ISO bus adaptation (FEM) 38
Module 54 – Yield meter (FEM) 39
Fuses and relays – Circuit diagram assignment 40
Error code list (CIS) 41
Diagnosis according to error code (CIS) – for module A49 – hydrostatic ground drive (EFA) 48
Diagnosis according to error code (CIS) – for module A24 – grinding / shear bar adjustment 54
Main power supply,diesel engine electric starting motor,reversing horn 01a – 43a 57
01a Main power supply, diesel engine electric starting motor, reversing horn up to serial no 492 – 1605 58
01b Main power supply, diesel engine electric starting motor, reversing horn from serial no 492 – 1606 61
02a Starting the diesel engine, engine speed adjustment – not for Profistar, not for Speedstar (with electro-hydraulic ground drive) 67
02b Starting the diesel engine, engine speed adjustment – for Profistar with diesel engine DC OM 502, for Speedstar (with electro-hydraulic ground drive) with DC OM 502 71
02c Starting the diesel engine, diesel engine speed adjustment – for Profistar with diesel engine DC OM 457, for Speedstar (with electro-hydraulic ground drive) with DC OM 457 75
03a Diesel engine cut-off system 79
04a Activation of road travel, master valve up to serial no 492 – 1605 83
04b Activation of road travel, master valve from serial no 492 – 1606 87
05a Terminal, keyboard 91
06a CAN bus, power supply of modules up to serial no 492 – 1605 95
06b CAN bus, power supply of modules – from serial no 492 – 1606, not for Profistar, not for Speedstar (with electro-hydraulic ground drive)101
06c CAN bus, power supply of modules – for Profistar, for Speedstar (with electro-hydraulic ground drive)107
07a Main drive up to serial no 492 – 1605115
07b Main drive from serial no 492 – 1606119
07c Main drive from serial no 492 – 3523123
09a Grinding device, without automatic shear bar adjustment up to serial no 492 – 0132127
09b Grinding device, without automatic shear bar adjustment from serial no 492 – 0133131
09c Grinding device, with automatic shear bar adjustment – up to serial no 492 – 0132135
09d Grinding device, with automatic shear bar adjustment from serial no 492 – 0133, operation by grinding cycle pre-selection potentiometer (R21)139
09e Grinding device, with automatic shear bar adjustment – Operation by CIS Terminal (A30)143
10a Automatic shear bar adjustment, – Operation by shear bar gap pre-selection potentiometer (R9)147
10b Automatic shear bar adjustment Operation by CIS terminal (A30)153
11a Corn cracker adjustment159
12a Knife support 163
13a Automatic upper discharge chute swing167
14a Swing upper discharge chute, raise/lower upper discharge chute171
15a Discharge flap narrow / wide175
17a Front attachment drive, metal detector179
19a Reel variable speed drive183
20a Raise / lower front attachment – without cross levelling187
20b Raise / lower front attachment, – with cross levelling191
21a Additional controller 1 – Fold front attachment, raise / lower roller crop press, raise / lower reel195
21b Additional controller 2 – Hydraulic fore and aft reel adjustment, additional hitch controller199
24a CONTOUR / AUTOCONTOUR, float position203
26a Machine monitoring – up to serial no 492 – 1914209

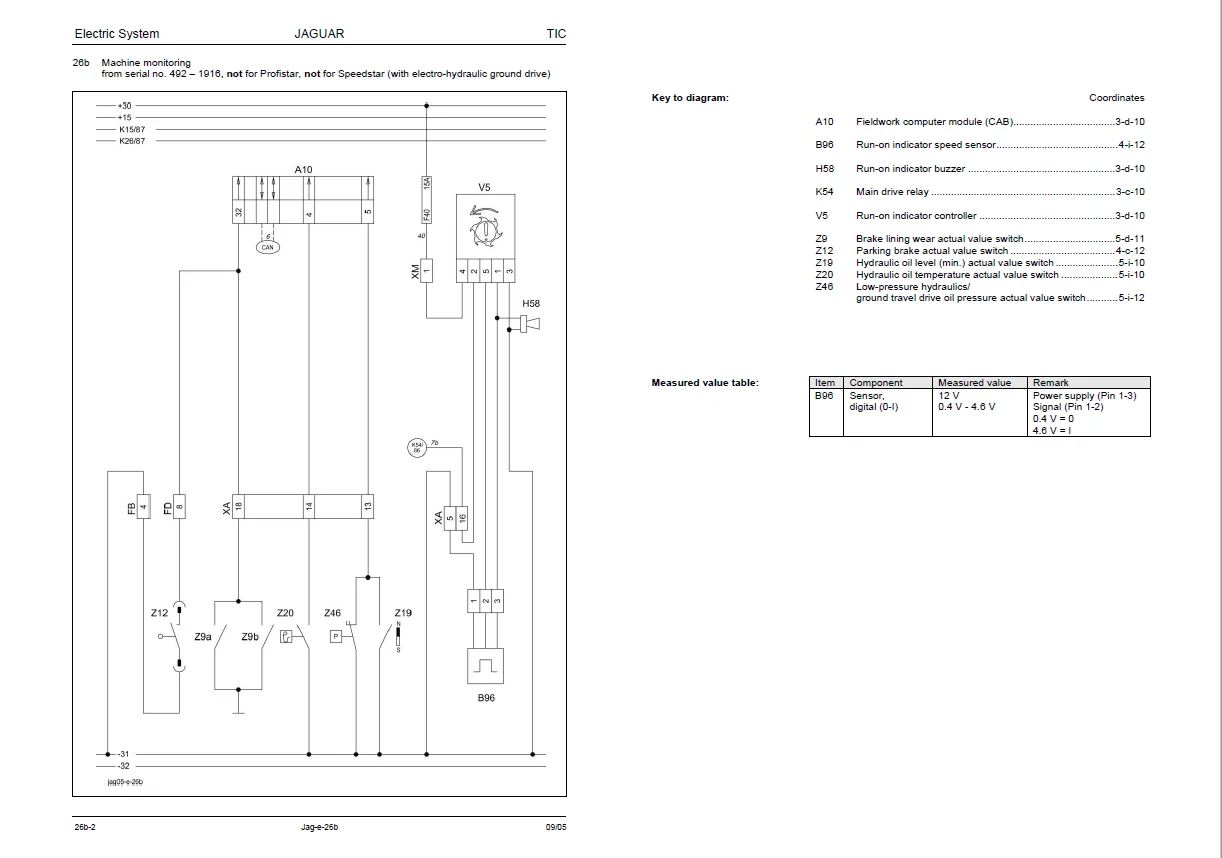

26b Machine monitoring from serial no 492 – 1916, not for Profistar, not for Speedstar (with electro-hydraulic ground drive)213
26c Machine monitoring – for Profistar, for Speedstar (with electro-hydraulic ground drive)217
27a Yield meter (FEM) 221
28a AUTOPILOT sensing system up to serial no 492 – 0132225
28b AUTOPILOT sensing system from serial no 492 – 0133231
28c AUTOPILOT Laser up to serial no 492 – 0132237
28d AUTOPILOT Laser from serial no 492 – 0133243
29a All-wheel drive, Central lubrication system, Servo gearshift249
31a Turn signal indicator system – Europe255
31b Turn signal indicator system – USA261
32a Main lighting circuit, taillight, position light267
33a Dipped headlights, full beam, warning beacon – without additional dipped headlights271
33b Dipped headlights, full beam, warning beacon – with additional dipped headlights 275
34a Worklight I279
34b Worklight II283
35a Signal horn, brake light 287
36a Instrument lighting, radio, mirror adjustment291
37a Windscreen wiper, windscreen washer – for windscreen wiper with clockwise rotation295
37b Windscreen wiper, windscreen washer – for windscreen wiper with clockwise / anti-clockwise rotation299
38a Compressor-type air conditioner303
38b – Automatic air conditioner 307
39a Silaging agent system – up to serial no 492 – 0132317
39b Silaging agent system – from serial no 492 – 0133321
40a – Auxiliary plug sockets, fuse tester325
42a Trailer brake system – for Speedstar (with electro-hydraulic ground drive)329
43a Electro-hydraulic ground drive (EFA)333
Component grid 340
Index:343
A-D344
E-K345
L-S346
T-Y347
0298 7164350

IMAGES PREVIEW OF THE MANUAL:

CLAAS JAGUAR 900 – 830 900 – 830 PROFISTAR 900 – 830 SPEEDSTAR TECHNICAL & ELECTRIC SYSTEM SERVICE MANUAL – PDF DOWNLOAD:
