CLAAS JAGUAR 900 – 830 Automatic upper discharge chute swing unit Fitting Instructions Manual – PDF DOWNLOAD

Description

CLAAS JAGUAR 900 – 830 Automatic upper discharge chute swing unit Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS JAGUAR 900 – 830 Automatic upper discharge chute swing unit Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the Automatic upper discharge chute swing unit. The JAGUAR 900-830 forage harvesters can be fitted with the supplementary kit part no. 91000556. The standard mounting time is approx. 6 hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.

General information
IMPORTANT

• The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents.
• Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country.
• The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number.
• Additional part specifications are the part no., description, measurements, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number). Technical data, dimensions and weights are given as an indication only.
• CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel.

TABLE OF CONTENTS:

CLAAS JAGUAR 900 – 830 Automatic upper discharge chute swing unit Fitting Instructions Manual – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping package
Shipping package 41
Automatic upper discharge chute swing unit retrofit kit 41
5 Automatic upper discharge chute swing unit
Fitting the automatic upper discharge chute swing unit 51
Preparations for fitting 51
Fitting the angular sensor (2) 52
Mounting the foot switch (16) 54
Installing the module (27) 57

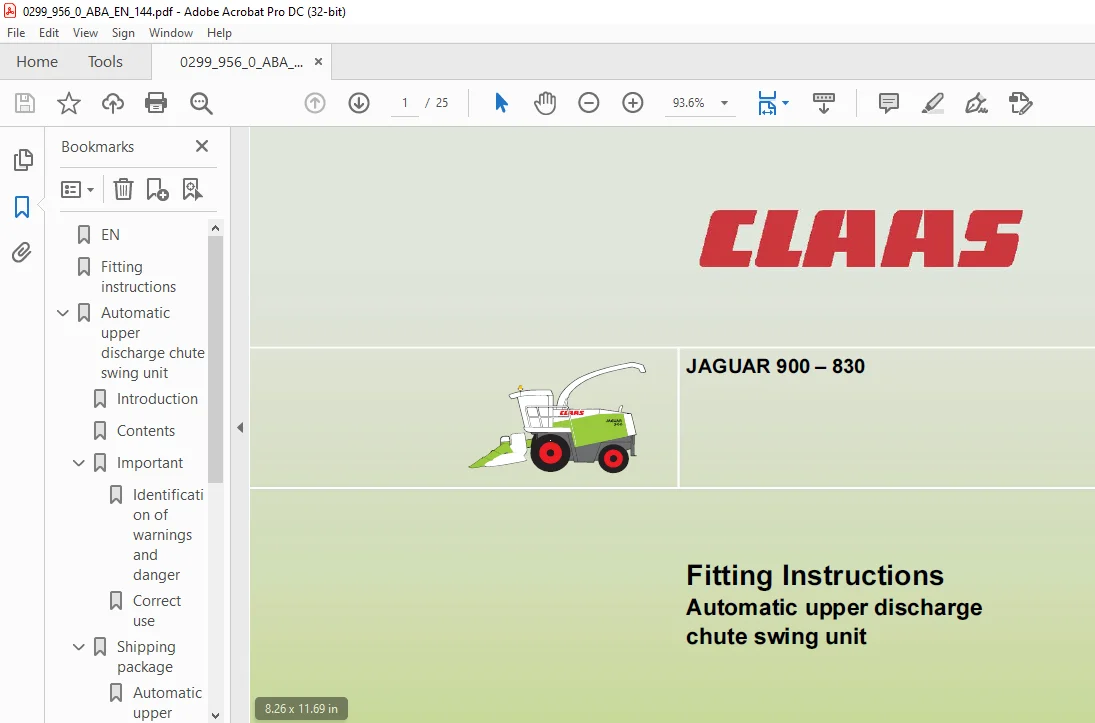

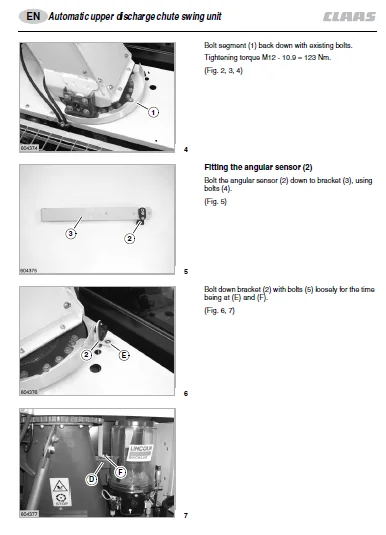

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted

S.M
