INTRODUCTION

These fitting instructions explain the procedure for installing the Corn Cracker to the CLAAS JAGUAR 900–830. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and contact washers. Text and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text.
TABLE OF CONTENTS:

CLAAS JAGUAR 900–830 CORN – CRACKER Fitting Instructions Manual_EN_DE_FR – PDF DOWNLOAD

1 Roller housing, assembled 1
2 Male connector LL 5 M 2
3 Piping, pre-assembled 1
4 Grease nipple, AM 8 x 1 1
5 V-belt pulley, assembled 1
6 Hexagon bolt M 16 x 45 1
Contact washer A 16 1
7 Cap 1
8 Supporting ring S 35 x 42 x 2,5 3
9 Jockey pulley bracket, assembled 1
10 Hexagon bolt M 12 x 150 1
Contact washer A 12 1
Hexagon nut M 12 1
11 Jockey pulley, assembled 1
12 Washer 26 x 34 x 2 2
13 Cotter pin 6,3 x 40 1
14 Bracket, welded 1
15 Plastic bushing 22 x 26 x 13 2
16 Washer 23 x 34 x 2 1
17 Cotter pin 5 x 36 1
18 Pressure spring 6,3 x 38 x 380 1
19 Spring guide, welded 1
20 Fork, welded 1
21 Washer 13 x 40 x 6 1
22 Hexagon nut M 12 1
23 Pin B 10 A 12 x 28 1
24 Washer 10,5 1
25 Cotter pin 4 x 22 1
26 V-belt pulley 1
27 Gib head key 12 x 8 x 73 1
28 Power band belt 6 x 13 x 2760 LW 1
29 Lid 1,0 x 238 x 771 1
30 Hexagon bolt M 12 x 20 2
Contact washer A 12 2

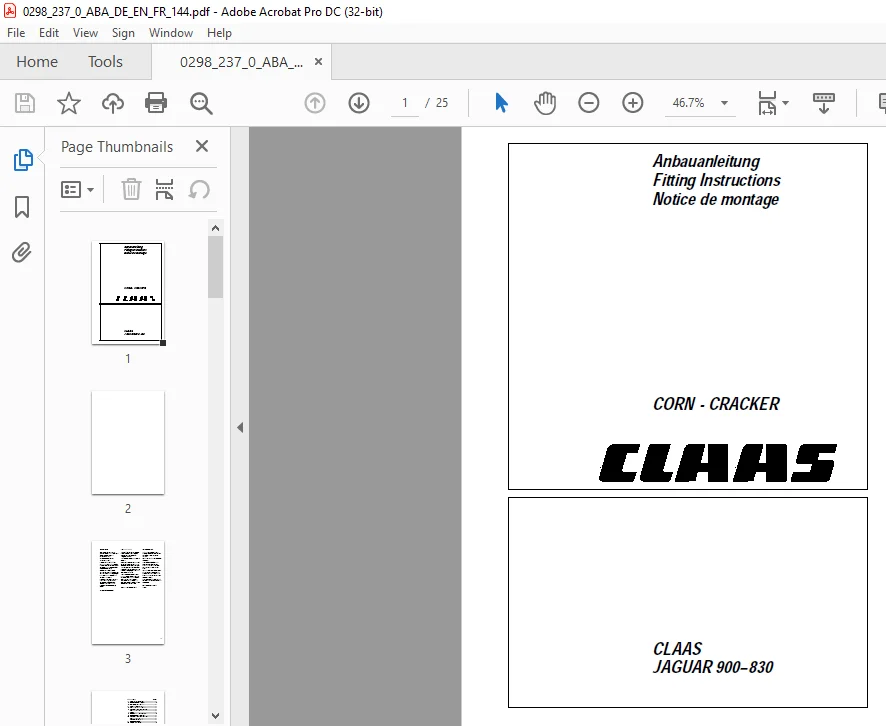

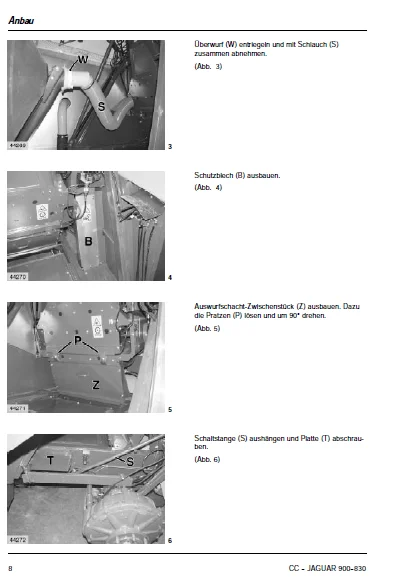

IMAGES PREVIEW OF THE MANUAL:
