INTRODUCTION

These fitting instructions explain the procedure for installing the electric corn cracker adjustment to the CLAAS JAGUAR 900–830. The shipping package is shown on page 5. Each part has a number. The part specification e.g. for bolts is also stated in the shipping package. The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and contact washers. Text and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text
TABLE OF CONTENTS:

CLAAS JAGUAR 900–830 Electric Corn Cracker Adjustment Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

1 Gear motor M IMP 63 x 25 1
2 Support 1
3 Cheese-head screw M 5 x 12 4
Spring washer 5 4
4 Pin D 10 x 35 1
Snap ring A 10 2
5 Coupling 1
6 Brace, flat, 50 x 5 x 168 1
7 Hexagon bolt M 6 x 12 4
Contact washer A 6 4
8 Hexagon bolt M 6 x 16 2
Contact washer A 6 2
9 Clamp D 1 – 63 – 20 1
10 Hexagon bolt M 8 x 25 1
Contact washer A 8 1
Hexagon nut M 8 1
11 Wiring loom 1
12 Pipe clamp RS 112/20 1
13 Hexagon bolt M 6 x 20 1
Contact washer A 6 1
Hexagon nut M 6 1
14 Clamping spring 1
15 Rocker switch 1
16 Fuse 10 Amps 1

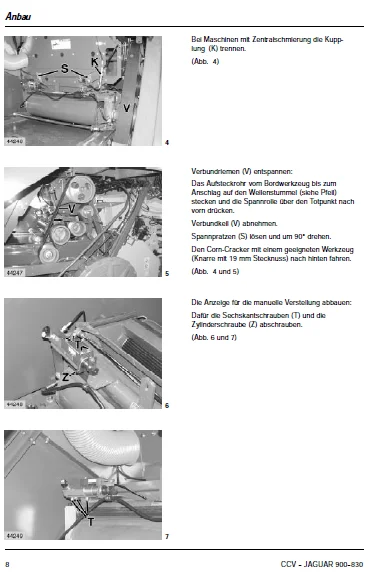

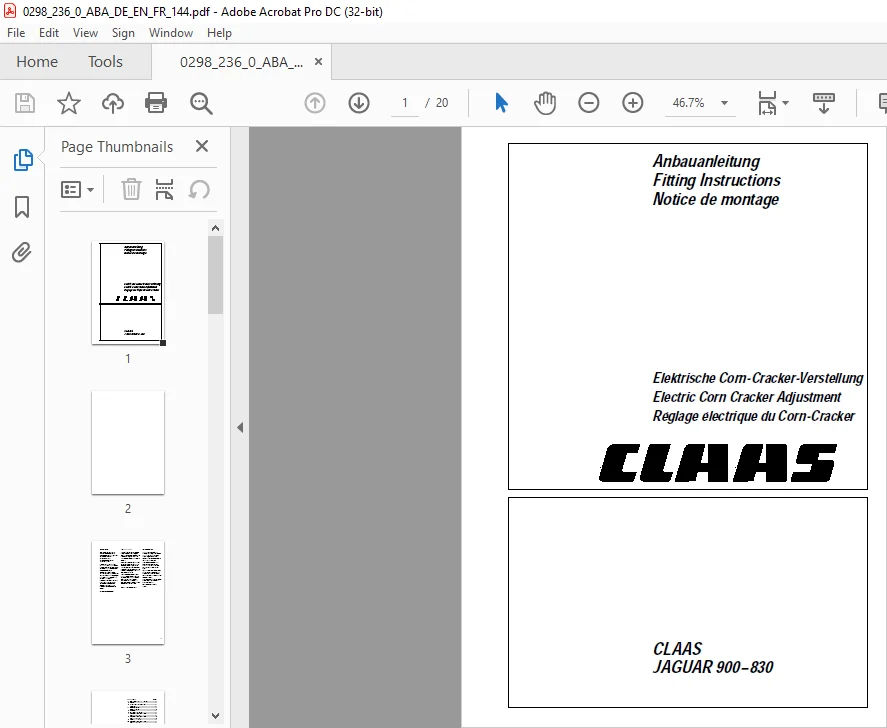

IMAGES PREVIEW OF THE MANUAL:
