CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_EN_FR

Description

CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_EN_FR

DESCRIPTION:

CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_EN_FR

INTRODUCTION

These fitting instruction explain the fitting of the side screen wash-wiper for the CLAAS JAGUAR 900 – 830 forage harvesters. The shipping package is shown on page 7. Each part has a number. The part specification e.g. for bolts is also stated in the «shipping package». The list gives the dimensions and the quantity of the bolts as well as the parts belonging to it, like nuts and Contact washers. Text and pictures apply, in general, to all the machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text
TABLE OF CONTENTS:

CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_EN_FR

1 Tube 17 x 2000 long 1
2 PVC pipe 4 x 6 x 3000 long 1
3 PVC pipe 4 x 6 x 4000 long 1
4 Cable tie 47 x 118 7
5 PVC pipe 4 x 6 x 1150 long 2
6 Nozzle 2
7 Union 2
8 Tube 10 x 2500 long 1
9 Tube 75 x 300 long 2
10 Tank with pump 1
11 Pump 1
12 Adapter ring 1
13 Strap 1
14 Hex bolt M 8 x 30 DIN 933-88 2
Contact washer A 8 2
Hex nut M 8 DIN 934-8 2
15 Pipe clamp Rsgu 120/20 1
16 Side wiper motor 2
17 Rubber washer 142 x 19 x 3 4
18 Washer 165 x 50 x 15 4
19 Rubber washer 142 x 19 x 3 4
20 Hex nut M 16 x 1 2
21 Cap 22 x 405 2
22 Cap 2
23 Hex bolt M 6 x 20 DIN 933-88 2
24 Washer 62 x 15 x 15 4
25 Rubber washer 5 x 19 x 3 4
26 Rubber washer 52 x 10 x 25 4
27 Hex protective cap M 6 GPN 1000 2
28 Wiper arm 2
29 Wiper blade 2
30 Hex nut M 8 DIN 934-8 2
Spring washer 8 2
31 Wiring loom 1
32 Cable tie 120 x 9 5
33 Cable clamp 85 2
34 Cable channel 385 long 2
35 Cable channel 710 long 2
36 Left hand cover 1
37 Right hand cover 1
38 Rocker switch 2
39 Mushroom headed bolt M 6 x 12 2
40 Sealer 300 / 310 ml 1

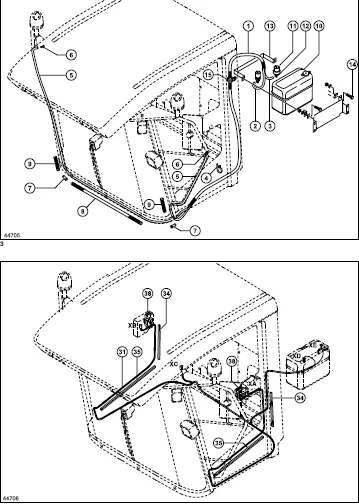

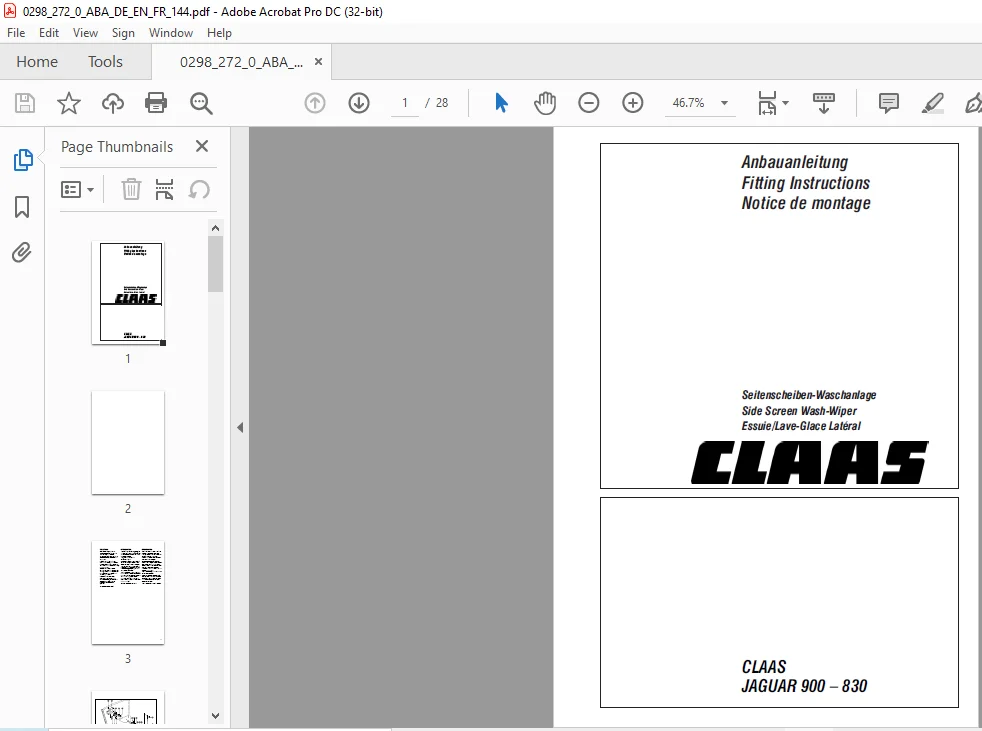

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
