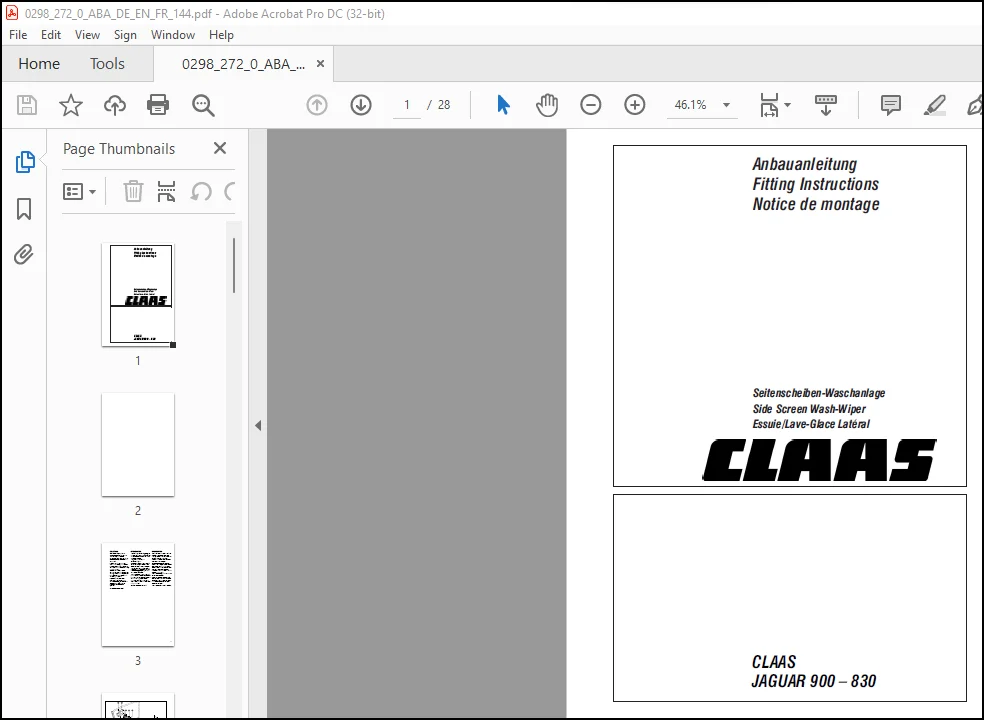

IMAGES OF MANUAL :

DESCRIPTION:

CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_FR_EN – PDF DOWNLOAD

INTRODUCTION
These fitting instruction explain the
fitting of the side screen wash-wiper
for the CLAAS JAGUAR 900 – 830
forage harvesters.
The shipping package is
shown on page 7.
Each part has a number. The part
specification e.g. for bolts is also
stated in the «shipping package».
The list gives the dimensions and
the quantity of the bolts as well as
the parts belonging to it, like nuts
and Contact washers.
Text and pictures apply, in general,
to all the machine types covered by
this book and the information given
applies equally, except where
reference is made to a particular
model in captions to the pictures or
in the main text.

TABLE OF CONTENTS:

CLAAS JAGUAR 900 – 830 Side Screen Wash-Wiper Fitting Instructions Manual_DE_FR_EN – PDF DOWNLOAD

Shipping Package Quantity
1 Tube 17 x 2000 long . . . . . . . . . . . . . . . . . . . . . 1
2 PVC pipe 4 x 6 x 3000 long . . . . . . . . . . . . . . . 1
3 PVC pipe 4 x 6 x 4000 long . . . . . . . . . . . . . . . 1
4 Cable tie 4.7 x 118 . . . . . . . . . . . . . . . . . . . . . . 7
5 PVC pipe 4 x 6 x 1150 long . . . . . . . . . . . . . . . 2
6 Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
7 Union . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
8 Tube 10 x 2500 long . . . . . . . . . . . . . . . . . . . . . 1
9 Tube 7.5 x 300 long . . . . . . . . . . . . . . . . . . . . . . 2
10 Tank with pump . . . . . . . . . . . . . . . . . . . . . . . . . 1
11 Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
12 Adapter ring . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
13 Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
14 Hex bolt M 8 x 30 DIN 933-8.8 . . . . . . . . . . . . . 2
Contact washer A 8 . . . . . . . . . . . . . . . . . . . . . . 2
Hex nut M 8 DIN 934-8 . . . . . . . . . . . . . . . . . . . 2
15 Pipe clamp Rsgu 1.20/20 . . . . . . . . . . . . . . . . . 1
16 Side wiper motor . . . . . . . . . . . . . . . . . . . . . . . . 2
17 Rubber washer 14.2 x 19 x 3 . . . . . . . . . . . . . . 4
18 Washer 16.5 x 50 x 1.5 . . . . . . . . . . . . . . . . . . . 4
19 Rubber washer 14.2 x 19 x 3 . . . . . . . . . . . . . . 4
20 Hex nut M 16 x 1 . . . . . . . . . . . . . . . . . . . . . . . . 2
21 Cap 22 x 40.5 . . . . . . . . . . . . . . . . . . . . . . . . . . 2
22 Cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
23 Hex bolt M 6 x 20 DIN 933-8.8 . . . . . . . . . . . . . 2
24 Washer 6.2 x 15 x 1.5 . . . . . . . . . . . . . . . . . . . . 4
25 Rubber washer 5 x 19 x 3 . . . . . . . . . . . . . . . . . 4
26 Rubber washer 5.2 x 10 x 2.5 . . . . . . . . . . . . . . 4
27 Hex protective cap M 6 GPN 1000 . . . . . . . . . . 2
28 Wiper arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
29 Wiper blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
30 Hex nut M 8 DIN 934-8 . . . . . . . . . . . . . . . . . . . 2
Spring washer 8 . . . . . . . . . . . . . . . . . . . . . . . . 2
31 Wiring loom . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
32 Cable tie 120 x 9 . . . . . . . . . . . . . . . . . . . . . . . . 5
33 Cable clamp 8.5 . . . . . . . . . . . . . . . . . . . . . . . . 2
34 Cable channel 385 long . . . . . . . . . . . . . . . . . . 2
35 Cable channel 710 long . . . . . . . . . . . . . . . . . . 2
36 Left hand cover . . . . . . . . . . . . . . . . . . . . . . . . . 1
37 Right hand cover . . . . . . . . . . . . . . . . . . . . . . . . 1
38 Rocker switch . . . . . . . . . . . . . . . . . . . . . . . . . . 2
39 Mushroom headed bolt M 6 x 12 . . . . . . . . . . . 2
40 Sealer 300 / 310 ml . . . . . . . . . . . . . . . . . . . . . . 1
