CLAAS JAGUAR 900 890 870 850 830 Plastic strips for compression roller Fitting Instructions Manual_DE_EN_FR_IT_ES

Description

CLAAS JAGUAR 900 890 870 850 830 Plastic strips for compression roller Fitting Instructions Manual_DE_EN_FR_IT_ES

DESCRIPTION:

CLAAS JAGUAR 900 890 870 850 830 Plastic strips for compression roller Fitting Instructions Manual_DE_EN_FR_IT_ES

INTRODUCTION

This manual describes the safe and time-saving method of attachment with the mounting kit, part no. 998 203.0 (plastic strips for compression roller). Please read this manual thoroughly before starting work! Pay particular attention to the »General instructions « section. The following machines and devices can be converted:

Forage harvester:
JAGUAR 900 (model 492)
JAGUAR 890 (model 492)
JAGUAR 870 (model 492)
JAGUAR 850 (model 492)
JAGUAR 830 (model 492)

The shipping package is listed on page 4.2. Before starting work make sure that the mounting kit is complete. The “Package list” list is also considered a supplement to the spare parts list. Dispose of old parts that are not required for the assembly in an environmentally correct manner
TABLE OF CONTENTS:

CLAAS JAGUAR 900 890 870 850 830 Plastic strips for compression roller Fitting Instructions Manual_DE_EN_FR_IT_ES

1 Introduction
Introduction 11
2 Table of contents
3 General instructions
Of special importance 31
Identification of warnings and dangers 31
Designated use 32
Safety decals with warning symbols 32
General safety instructions 32
4 Package list

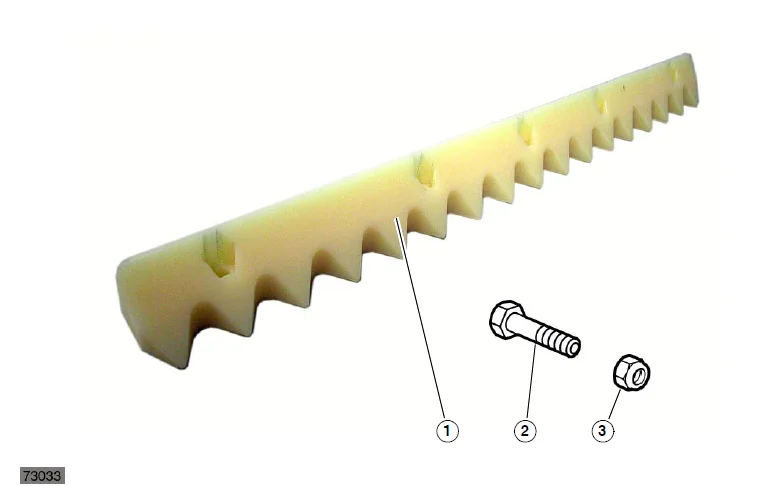

Package list of plastic strips for compression roller 42
Mounting kit: 998 2030 42
5 Attaching plastic strips

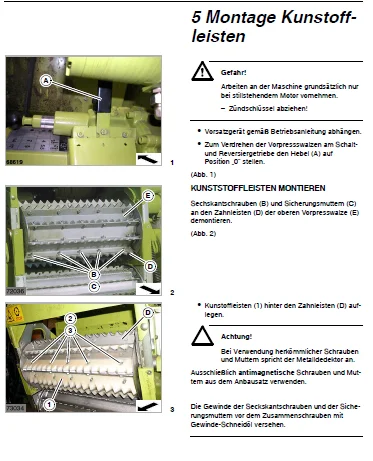

Attaching plastic strips 51
Check and observe the following before putting into operation 52

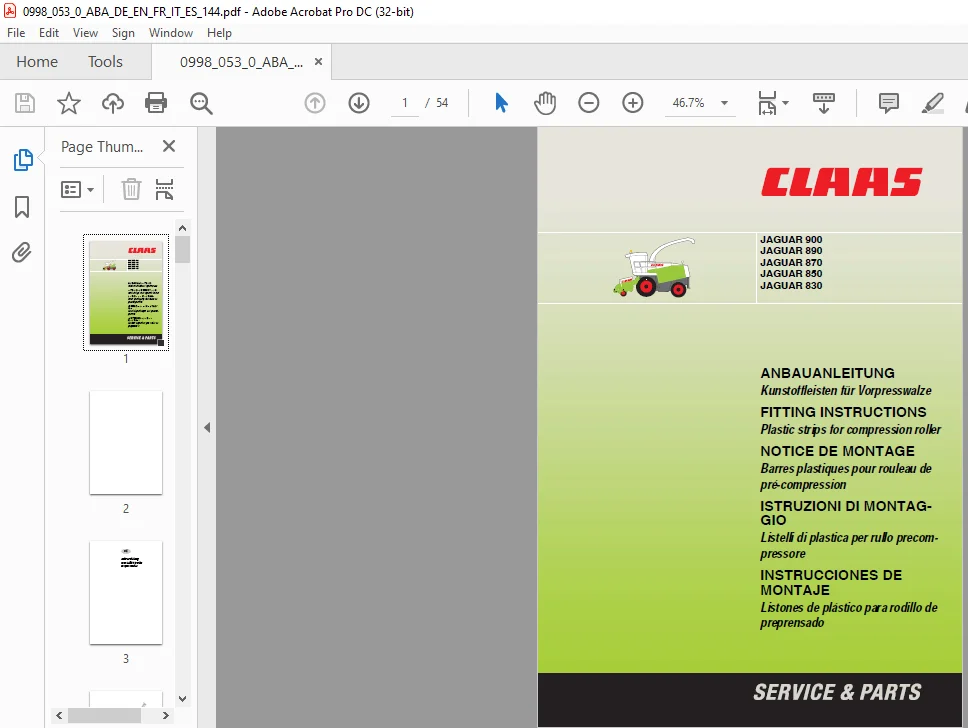

IMAGES PREVIEW OF THE MANUAL:

CLAAS JAGUAR 900 890 870 850 830 PLASTIC STRIPS FOR COMPRESSION ROLLER FITTING INSTRUCTIONS MANUAL_DE_EN_FR_IT_ES:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
