DESCRIPTION:

CLAAS JAGUAR 900 / 890 / 870 / 850 / 830 PU 300 HD Fitting and Operating Instructions Manual – PDF DOWNLOAD

INTRODUCTION

This fitting and operating instruction manual provides information on the use, adjustment and operation of the CLaaS Pickup. The advice on care and servicing should be followed in order to obtain maximum performance and long service from the machine. The assembly and regular inspections of your machine should be carried out by your specialist workshop. Neglect in maintenance or service or incorrect use will result in poor machine efficiency and loss of time. Make use of the experience and latest developments incorporated in this machine by correct operation and careful maintenance and the machine will always give you good service

TABLE OF CONTENTS:

CLAAS JAGUAR 900 / 890 / 870 / 850 / 830 PU 300 HD Fitting and Operating Instructions Manual – PDF DOWNLOAD

1 Machine overview
2 Introduction
Introduction 2 1
3 Table of contents
4 Preface
Of special importance 4 1
Identification plate 4 2
5 Safety rules
Correct use 5 1
General safety and accident prevention regulations 5 1
Identification of warning and danger sings 5 2
Safety decals with pictorials 5 3
6 Specifications
PU 300 HD 6 1
7 Assembly
Unloading / loading the machine 7 1
Unpacking the machine 7 2
Machine assembly 7 3
Release the lock mechanism 7 4
Hitching the Pickup 7 4
Supporting the Pickup 7 5
Closing the lock mechanism 7 5
Adjusting the lock mechanism 7 6
Connecting the hydraulics 7 6
Fitting the land wheels 7 7
Fitting the universal drive shaft 7 7
8 Prior to operation
Hitching the pickup for the first time 8 1
Connecting the universal drive shaft 8 2
Setting the dog clutch 8 3
Working position 8 4
Working position land wheels 8 4
Working position prop stands 8 5
Setting the working height 8 6
Setting the Pickup lowering speed 8 6
Check and note the following before starting to work 8 7
Fitting the Pickup 8 8
Before transport 8 9
Transport position 8 9
Road travel 8 10
Removing and disengaging the Pickup 8 11
Extending the prop stands 8 11
Removing the universal drive shaft 8 12
9 Operation
Field operation 9 1
Lifting / lowering the Pickup 9 1
Lifting / lowering the roller crop press or intake augers
hydraulically 9 1
Using the Pickup 9 2
Setting the Contour-System (Ground Pressure Control) 9 3
Feeder paddle extension 9 4
Distance between intake auger and bottom of trough 9 5
Intake auger speed change 9 6
Roller crop press with hydraulic lift out 9 7
Ancillary equipment 9 8
Hydraulic auger lifting 9 8
Filler bars for the intake shafts 9 8
Fitting kit guide wheel 9 8
Hydraulically folding land wheels 9 9
10 Maintenance
Important maintenance instructions 10 1
Hydraulic system 10 1
Screws and bolts 10 1
Lubrication 10 1
Safety guards 10 1
Wheels and tyres 10 2
Drives 10 3
Angle drive 10 3
Tightening the drive chains 10 4
Drive chain pick-up 10 4
Drive chain intake auger 10 5
Universal drive shafts 10 5
Hydraulics 10 6
Hydraulic hoses 10 6
Fasteners 10 6
Threaded Fasteners 10 6
Safety guards 10 6
Tyres 10 7
Tyre pressure 10 7
Winter storage 10 8
11 Lubrication chart
Safety rules 11 1
Lubricants 11 1
Lubrication 11 1

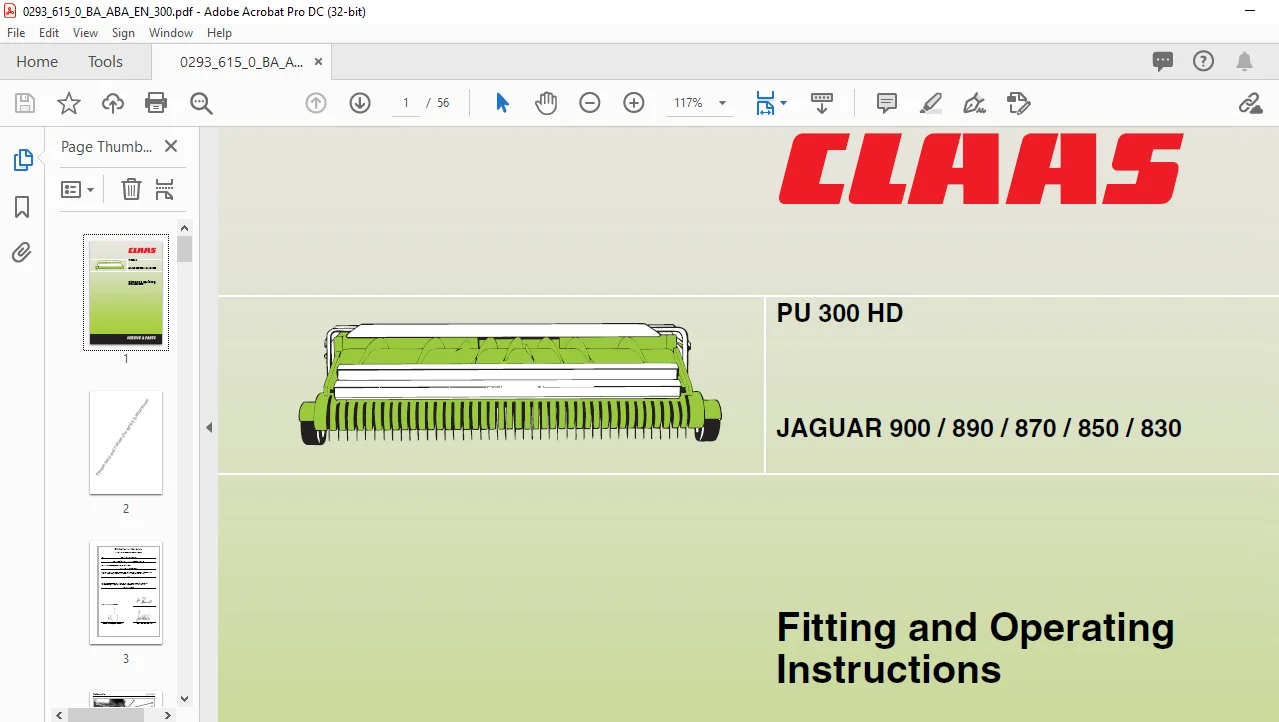

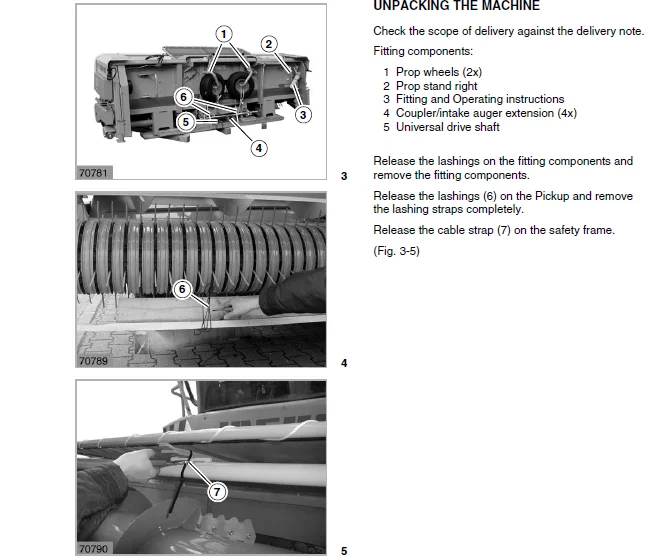

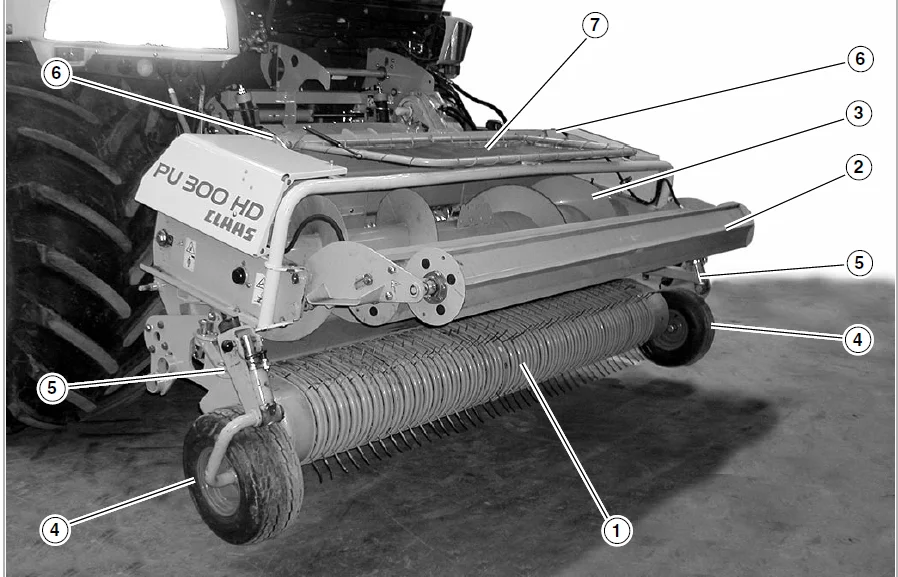

IMAGES PREVIEW OF THE MANUAL:
