INTRODUCTION

This manual provides instructions for fitting the Straw Chopper to the CLAAS LEXION 410 / 405 combines. The shipping package is specified on pages 8 and 9. The numbering corresponds to the order of installation.
TABLE OF CONTENTS:

CLAAS LEXION 410 / 405 CLAAS-Straw Chopper Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Shipping package Quantity
27 Jockey pulley arm 1
28 Set collar 2
29 Power band belt 1
30 Cylinder pin D 10 x 5 1
31 Clamp 1
32 Hexagon bolt M 6 x 12 1
Contact washer A 6 1
33 Hose 1
34 Hollow screw 2
Seal 4
35 Hollow screw 1
36 Pipe clamp 1
37 Bracket 1
38 Hexagon bolt M 6 x 30 2
Contact washer A 6 2
Hexagon nut M 6 2
39 Support 1
40 Hexagon bolt M 10 x 25 3
Contact washer 3
41 Spacer bushing 1
42 V-belt pulley 1
43 V-belt 1
44 Belt guide 1
45 Mounting bracket 6
46 Mushroom head bolt M 8 x 20 6
Contact washer 6
Nut 6
47 Hexagon bolt M 8 x 75 2
Contact washer A 8 2
Hexagon nut M 8 2
48 Spacer tube 2
49 Rubber cushion 1
Contact washer A 8 2
Hexagon nut M 8 1
50 Hexagon bolt M 8 x 12 1
51 Brace 1
52 Hexagon bolt
M 16 x 110 DIN 931-88 1
Contact washer A 16 1
53 Hexagon bolt
M 16 x 80 DIN 931-88 1
Contact washer A 16 1
54 Chopper intermediate drive unit 1
55 Hexagon bolt
M 10 x 45 DIN 931-88 4
Contact washer A 10 4
56 V-belt 1
57 Jockey pulley arm 1
58 Set collar 2
59 Spring-loaded cylinder 1
60 Hexagon bolt M 8 x 25 2
Contact washer A 8 2
61 Pin 1
62 Cotter pin 4 x 22 1
63 Guard 1
64 Hexagon nut M 8 2
Contact washer A 8 2
65 Jockey pulley 1
66 Pin 1
67 Cotter pin 4 x 22 1
68 Lock bolt
M 10 x 50 DIN 931-88 1
Spacer tube 1
Contact washer A 10 1
Hexagon nut M 10 1
69 Jockey pulley 1
70 Hexagon dowel screw
M 16 x 120 DIN 7968 1
Contact washer A 16 1
Hexagon nut M 16 1
Spacer bushing 1
71 Hinge plate 2
72 Mounting plate 2
73 Hexagon bolt
M 8 x 16 DIN 933-88 4
Hexagon nut M 8 4
Contact washer A 8 4
74 Door 1
75 Wire rope 1
76 Hexagon bolt
M 10 x 30 DIN 933-88 2
Contact washer A 10 2
77 Safety frame 1
78 Hexagon bolt M 12 x 65 2
Contact washer A 12 2
Hexagon nut M 12 2
79 Hexagon bolt
M 8 x 20 DIN 933-88 4
Contact washer A 8 4
Hexagon nut M 8 4
80 Cheese-head screw
M 8 x 40 DIN 912 2
Hexagon nut M 8 2
Contact washer A 8 2

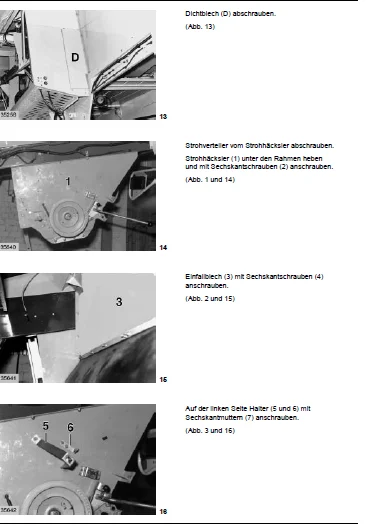

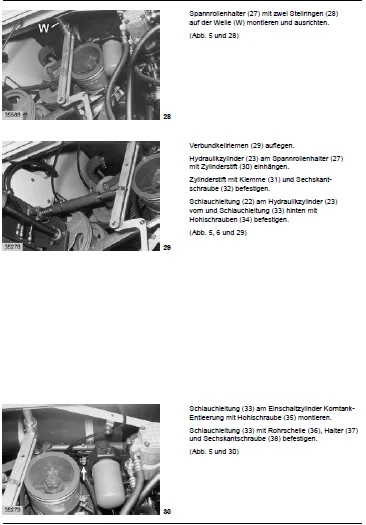

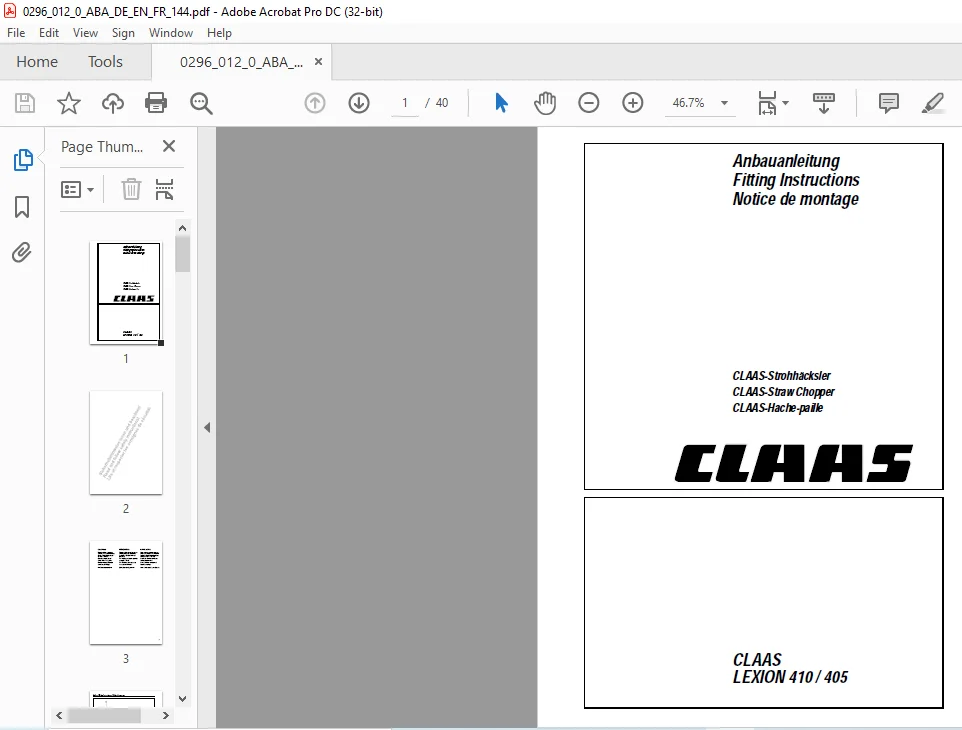

IMAGES PREVIEW OF THE MANUAL:
