CLAAS LEXION 460 – 405 Chaff Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

Description

CLAAS LEXION 460 – 405 Chaff Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 460 – 405 Chaff Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions show the installation of the CLAAS chaff spreader drive and the fitting of the chaff spreader for the CLAAS LEXION 460 – 405 combines. The numbering corresponds to the order of installation. The parts of the shipping package are listed on page

TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 Chaff Spreader Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

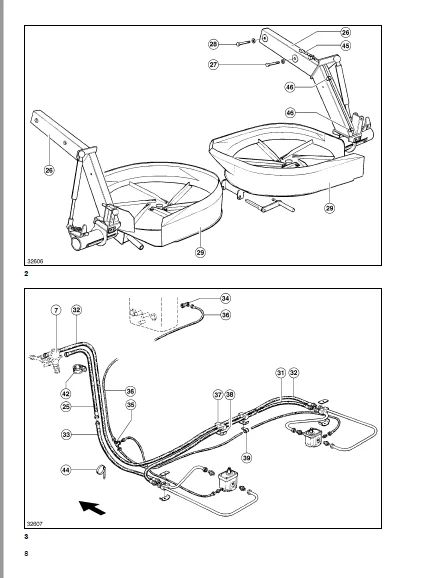

Chaff spreader:
26 Bearing arm, right 1
Bearing arm, left 1
27 Hexagonal bolt M 12 x 120 DIN 931-88 2
Hexagonal nut M 12 2
Contact washer A 12 2
Washer 13 2
28 Hexagonal bolt M 12 x 110 DIN 931-88 2
Hexagonal nut M 12 2
Contact washer A 12 2
Washer 13 2
29 Chaff spreader, right 1
Chaff spreader, left 1
30 Roll pin 2
31 Hydraulic hose
LEXION 430 – 405 2170 mm 1
LEXION 460 – 440 2350 mm 1
32 Hydraulic hose
LEXION 430 – 405 3125 mm 1
LEXION 460 – 440 3300 mm 1
33 Hydraulic hose 800 mm 1
34 T-piece 1
35 T-reducer 1
36 Hydraulic hose 3400 mm 1
37 Rubber pad 15/15 3
38 Retaining bracket 3
39 Pipe clamp 5
40 Hexagonal bolt M 8 x 55 DIN 931-88 2
Self-locking nut VM 8 2
41 Hexagonal bolt M 8 x 85 DIN 931-88 1
Self-locking nut VM 8 1
42 Pipe clamp GSGU 143/25 1
43 Hexagonal bolt M 8 x 25 DIN 933-88 3
Hexagonal nut M 8 3
Contact washer A 8 3
44 Cable strap 8
45 Wiring loom 1
46 Cable clamp 6
47 Sticker 1

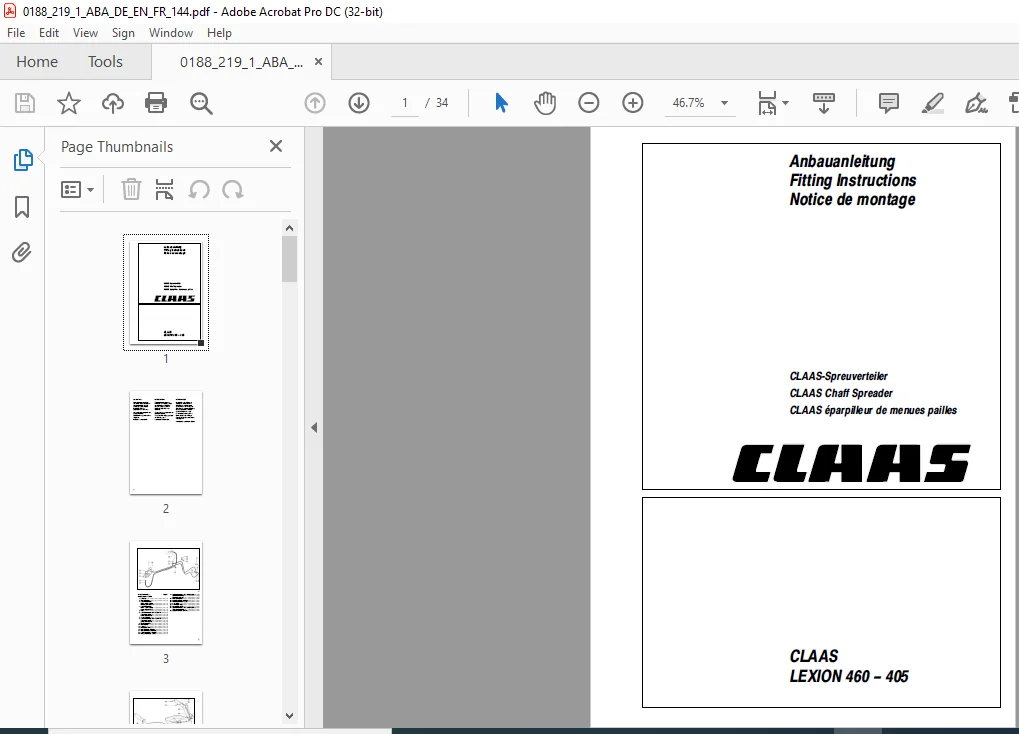

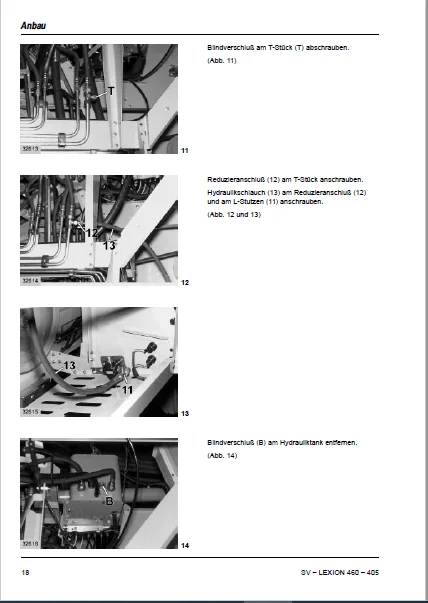

IMAGES PREVIEW OF THE MANUAL:

CLAAS LEXION 460 – 405 CHAFF SPREADER FITTING INSTRUCTIONS MANUAL DE_EN_FR – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
