INTRODUCTION

These instructions show the installation of the CLAAS chaff spreader drive and the fitting of the chaff spreader for the CLAAS LEXION 460 – 405 combines. The numbering corresponds to the order of installation. The parts of the shipping package are listed on page 8.
TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 CLAAS Chaff Spreader Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

Drive for chaff spreader:
1 V-belt 1
2 Hydraulic pump 1
3 Hexagonal bolt M 20 x 80 DIN 931-88 1
Self-locking nut VM 20 1
4 Hexagonal bolt M 10 x 25 DIN 933-88 1
Contact washer A 10 1
5 Mounting bracket 1
6 Hexagonal bolt M 6 x 35 DIN 931-88 2
Hexagonal nut M 6 2
Contact washer A 6 2
7 Flow control valve 1
8 Hexagonal bolt M 8 x 20 DIN 933-88 3
Hexagonal nut M 8 3
Contact washer A 8 3
9 Male connector 3
10 Elbow 1
11 T-piece 1
12 Reducer 1
13 Hydraulic line 1450 mm 1
14 Hydraulic hose 3650 mm 1
15 Hose clamp 25-40/12-C7 2
16 Pipe clamp RSGU 138/25 1
17 Hexagonal bolt M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
18 Male connector 1
19 Hydraulic hose 3400 mm 1
20 Pipe clamp RSGU 128/20 1
21 Mounting bracket 1
22 Rubber pad 22/22 1
23 Retaining bracket 1
24 Hexagonal bolt M 8 x 55 DIN 933-88 1
Self-locking nut VM 8 1
25 Hydraulic hose 800 mm 1

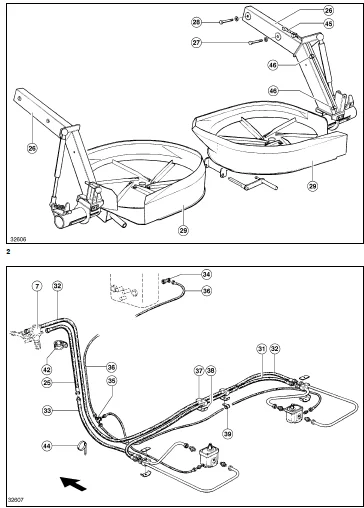

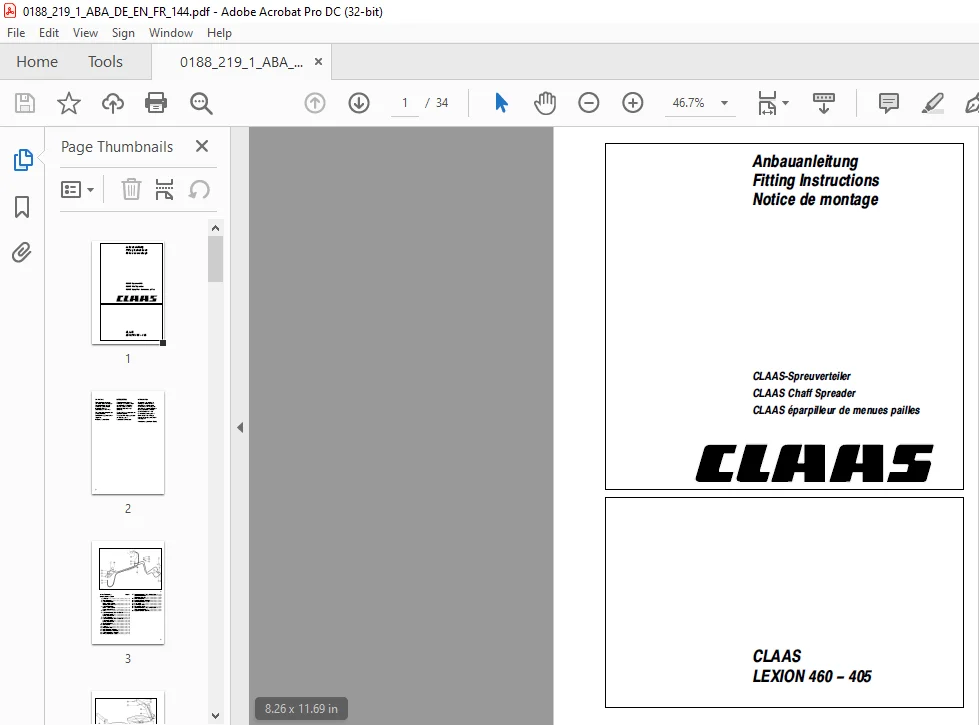

IMAGES PREVIEW OF THE MANUAL:
