CLAAS LEXION 460 – 405 CLAAS Chaff Spreader Fitting Instructions Manual_DE_EN_FR

Description

CLAAS LEXION 460 – 405 CLAAS Chaff Spreader Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 460 – 405 CLAAS Chaff Spreader Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

INTRODUCTION

These instructions show the installation of the CLAAS chaff spreader drive and the fitting of the chaff spreader for the CLAAS LEXION 460 – 405 combines. The numbering corresponds to the order of installation. The parts of the shipping package are listed on page 8.
TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 CLAAS Chaff Spreader Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

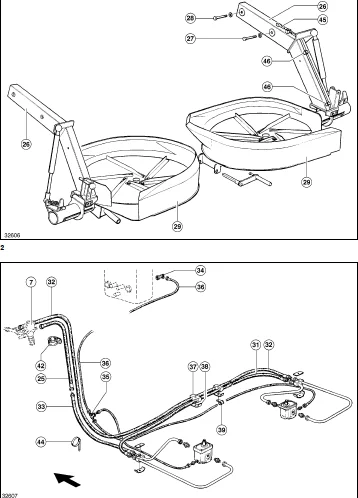

26 Lagerarm rechts 1
Lagerarm links 1
27 Sechskantschraube
M 12 x 120 DIN 931-88 2
Sechskantmutter M 12 2
Contact-Scheibe A 12 2
Scheibe 13 2
28 Sechskantschraube
M 12 x 110 DIN 931-88 2
Sechskantmutter M 12 2
Contact-Scheibe A 12 2
Scheibe 13 2
29 Spreuverteiler rechts 1
Spreuverteiler links 1
30 Spannstift 2
31 Hydraulikschlauch
LEXION 430 – 405 2170 mm 1
LEXION 460 – 440 2350 mm 1
32 Hydraulikschlauch
LEXION 430 – 405 3125 mm 1
LEXION 460 – 440 3300 mm 1
33 Hydraulikschlauch 800 mm 1
34 L-Stutzen 1
35 T-Reduzierung 1
36 Hydraulikschlauch 3400 mm 1
37 Gummilager 15/15 3
38 Befestigungsschelle 3
39 Rohrschelle 5
40 Sechkantschraube M 8 x 55 DIN 931-88 2
Sicherungsmutter VM 8 2
41 Sechskantschraube M 8 x 85 DIN 931-88 1
Sicherungsmutter VM 8 1
42 Rohrschelle GSGU 143/25 1
43 Sechskantschraube M 8 x 25 DIN 933-88 3
Sechskantmutter M 8 3
Contact-Scheibe A 8 3
44 Kabelband 8
45 Kabelsatz 1
46 Kabelschelle 6
47 Aufkleber 1

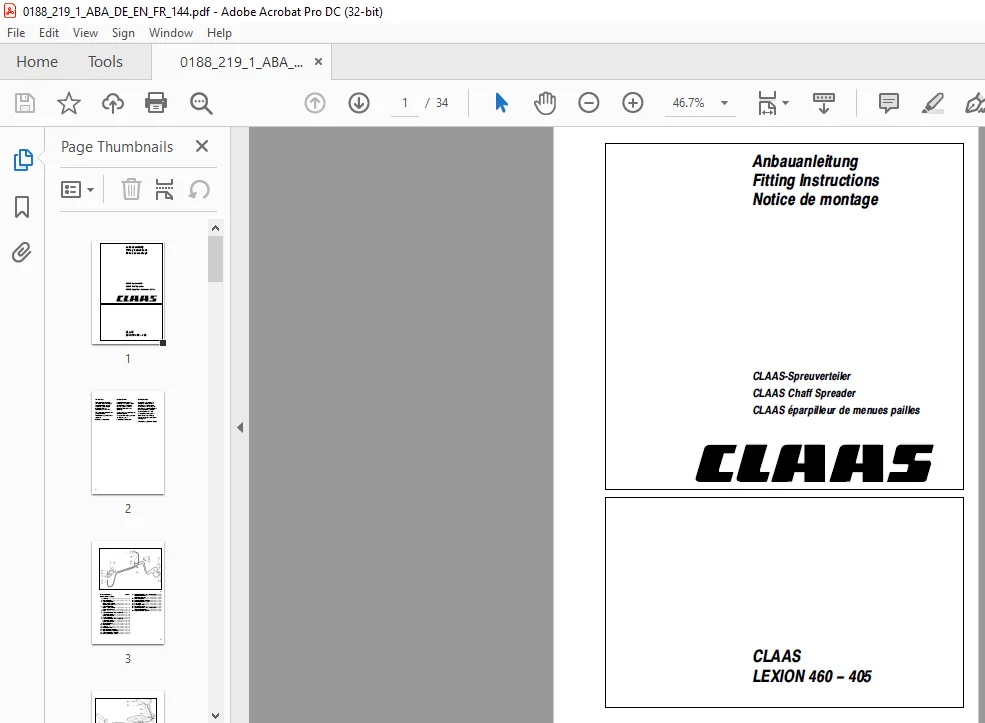

IMAGES PREVIEW OF THE MANUAL:
