CLAAS LEXION 460 – 405 CLAAS-lntensive separation system (lSS) Fitting Instructions Manual – PDF DOWNLOAD

Description

CLAAS LEXION 460 – 405 CLAAS-lntensive separation system (lSS) Fitting Instructions Manual – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 460 – 405 CLAAS-lntensive separation system (lSS) Fitting Instructions Manual – PDF DOWNLOAD

INTRODUCTION

These fitting instructions are for the intensive separation system (ISS) used on the CLAAS LEXION 460 — 405. The shipping package is specified on page 6. The numbering corresponds to the order of installation. A number identifies each component. To identitfy a component e. g. a bolt, look up its relevant number in the specification list, where its dimensions and quantities are shown.
TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 CLAAS-lntensive separation system (lSS) Fitting Instructions Manual – PDF DOWNLOAD

1 Cross plate 1
2 Mushroom headed bolt M 8 x 16 4
Hex nut M 8 4
Contact washer B 8 4
3 Plate (Box) 1
4 Hex bolt
M 8 x 20 DIN 933-88 11
Hex nut M 8 11
Contact washer A 8
5 Control arm
With 6 walkers 6
With 5 walkers 5
6 Control shaft
7 Hex bolt
M 8 x 25 DIN 933-88 8
Hex nut M 8 8
Contact washer A 8 8
8 Complete flange bearing 4
9 Crankshaft 2
10 Cam wheel 2
11 Mushroom headed bolt M 10 x 25 12
Hex nut M 10 12
Contact washer A 10 12
12 Speed sensor bracket 2
13 Spring support 4
14 Shaft collar 2
15 Shim 1 mm Shim 2 mm
16 Brace 1
17 Hex bolt
M 10 x 25 DIN 933-88
Hex nut M 10 2
Contact washer A 10 4
18 Clamping bracket 2
Hex nut M 10 4
Contact washer A 10 4
19 Support washer 20 x 28
With 6 walkers 6
With 5 walkers 5
20 Circlip 20 x 12
With 6 walkers 6
With 5 walkers 5
21 Reinforcement 1
22 Hex bolt
M 8 x 16 DIN 933-88 4
Hex nut M 8 4
Contact washer A 8 4
23 Plate (box) 1
24 Hex bolt
M 8 x 16 DIN 933-88 11
Hex nut M 8 11
Contact washer A 8 11
25 Feed plate 1
26 Mushroom headed bolt M 8 x 16 6
Hex nut M 8 6
Contact washer A 8 6
27 Plate 1
28 Bracket 1
29 Hex bolt
M 10 x 25 DIN 933-88 2
Hex nut M 10 2
Contact washer A 10 2
30 Jockey pulley bracket 1
31 Washer 27 x 43 x 15 1
32 Jockey pulley bracket 1
33 Shaft collar 2
34 Pulley 1
35 Gib head key 1
36 Clevis 2
Hex nut M 10 4
37 Compression spring 2
38 Spring guide 2
39 Pulley 2
40 Gib head key 2
41 Drive belt
42 Drive belt
43 Bolt 2
44 Split pin4x 22 2
45 Speed sensor 2
46 Guard 1
47 Hex bo t
M 8 x 16 DIN 933-88 3
Contact washer A 8 3

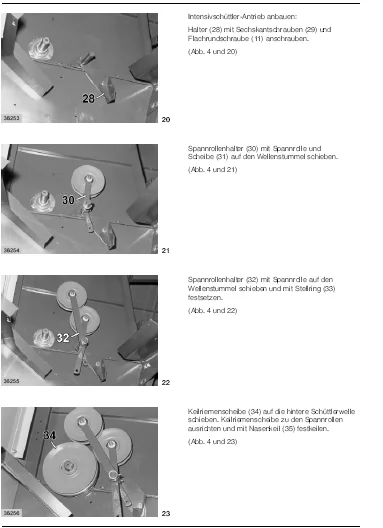

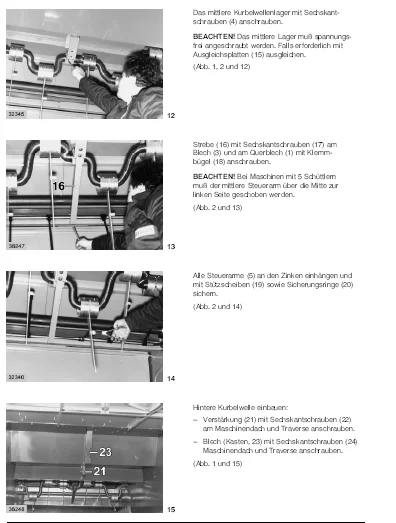

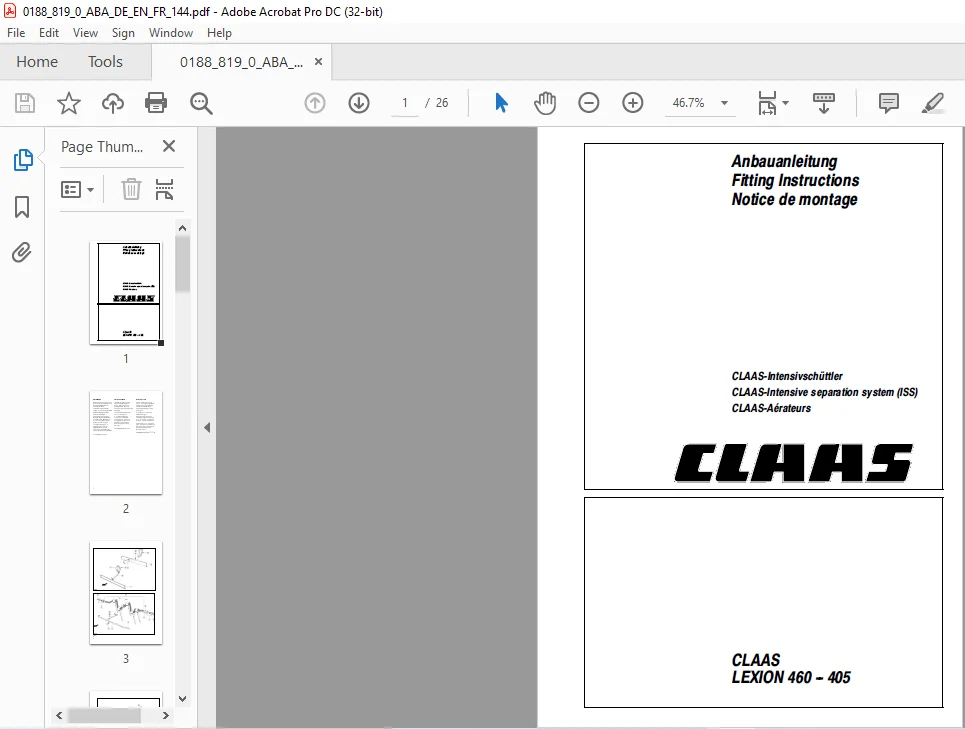

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
