INTRODUCTION

This manual shows the installation of the straw walker risers to the CLAAS range of LEXION 460 — 405 combine harvesters. The shipping package can be found on page 6. The items are numbered in the order of installation.

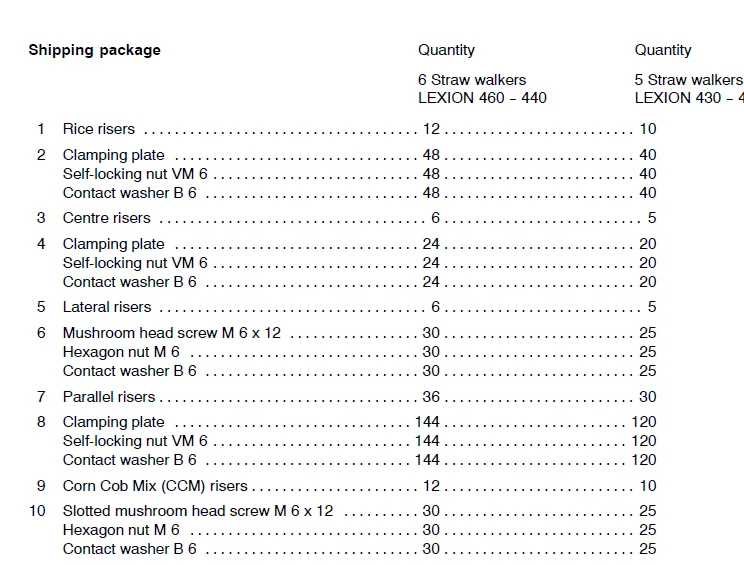

TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 CLAAS Straw Walker Risers Fitting Instructions Manual_DE_EN_FR – PDF DOWNLOAD

1 Rice risers 12 10
2 Clamping plate 48 40
Self-locking nut VM 6 48 40
Contact washer B 6 48 40
3 Centre risers 6 5
4 Clamping plate 24 20
Self-locking nut VM 6 24 20
Contact washer B 6 24 20
Lateral risers 6 5
Mushroom head screw M 6 x 12 30 25
Hexagon nut M 6 30 25
Contact washer B 6 30 2
7 Parallel risers 36 30
8 Clamping plate 144 120
Self-locking nut VM 6 144 120
Contact washer B 6 144 120
Corn Cob Mix (CCM) risers 12 10
Slotted mushroom head screw M 6 x 12 30 25
Hexagon nut M 6 30 25
Contact washer B 6 30 25
Cover plate 12 10
Clamping angle 24 20
Hexagon nut M 6 24 20
Contact washer B 6 24 20
Clamp 24 20
(Fig 1)

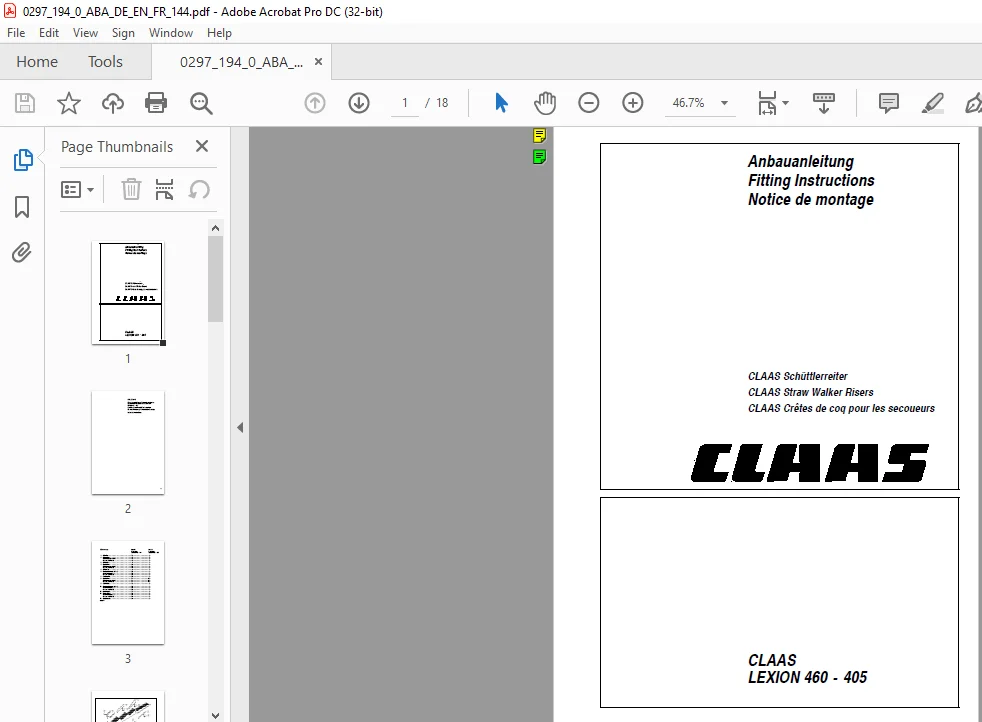

IMAGES PREVIEW OF THE MANUAL:
