INTRODUCTION

These instructions show the installation of the electric deflector adjustment system to the CLAAS LEXION 460 — 405 combines. The numbering corresponds to the order of installation. The shipping package is shown on page 4.
TABLE OF CONTENTS:

CLAAS LEXION 460 – 405 Electric deflector adjustment system Fitting Instructions Manual_EN_DE_FR – PDF DOWNLOAD

1 Mounting bracket 1
2 Mushroom head bolt M 8 x 20 3
Hexagonal nut M 8 3
Contact washer A 8 3
3 Cover plate 1
4 Control lever 1
5 Base plate 1
6 Bracket 1
7 Hexagonal bolt
M 8 x 25 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
8 Hexagonal bolt
M 8 x 20 DIN 933-88 2
Hexagonal nut M 8 2
Contact washer A 8 2
9 Linear motor 1
10 Pin 1
11 Cable clamp 2
12 Connecting rod 1
13 Washer 105 x 25 x 2 2
14 Self-locking nut VM 10 2
15 Wiring loom 1
16 Pipe clamp 2
17 Cable clamp
86 x 15 x 165 6
18 Centralizing switch 1

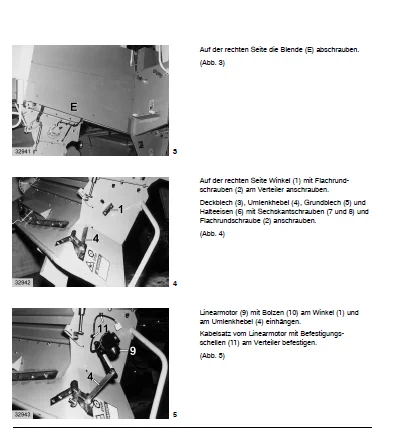

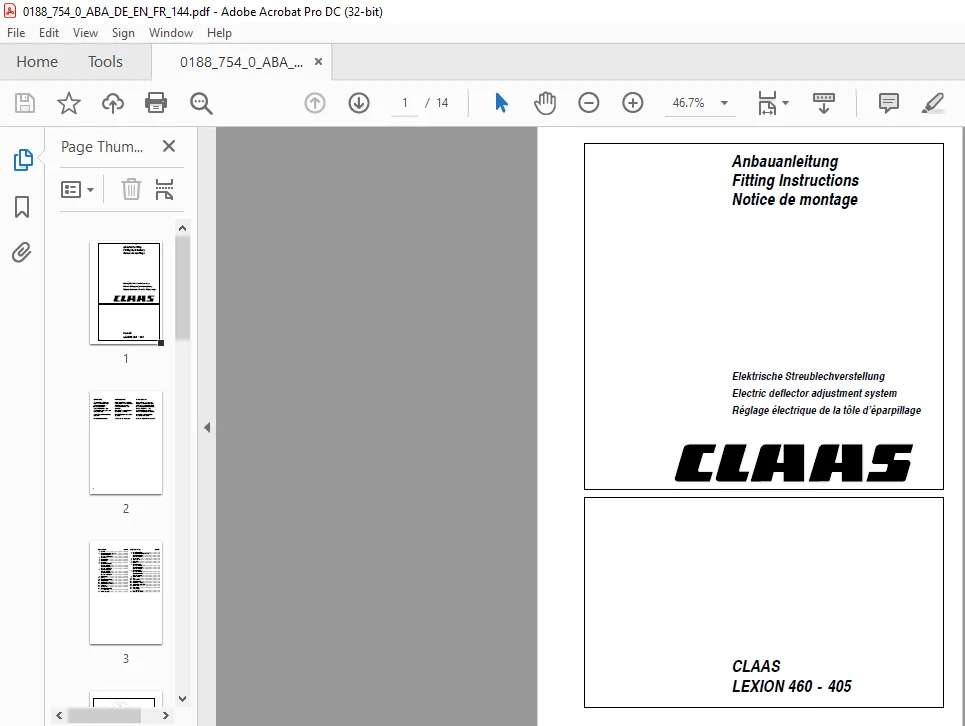

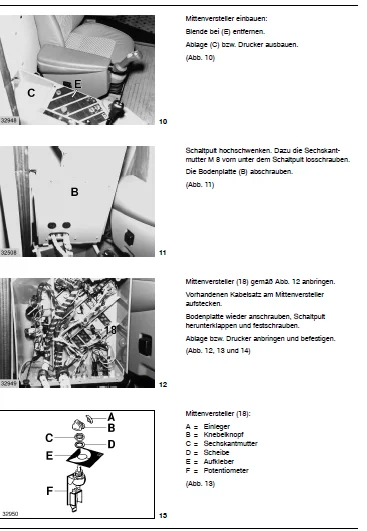

IMAGES PREVIEW OF THE MANUAL:
