CLAAS LEXION 480 470 LEXION 460-410 Air compressor system Fitting Instructions Manual DE_EN_FR_IT_ES

Description

CLAAS LEXION 480 470 LEXION 460-410 Air compressor system Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 470 LEXION 460-410 Air compressor system Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

Introduction :

• These instructions describe the safe and timesaving work sequence for retrofitting the air compressor system.
• The following table lists all combine harvesters with the corresponding supplementary kit and machine number ranges.

Machine type Parts no. from Machine
no.
LEXION 480/Crawler 796 583.0 54800017
LEXION 480 796 583.0 54600026
LEXION 460E/Crawler 796 584.1 54700014
LEXION 470 796 584.1 54500038
LEXION 460 796 584.1 54400037
LEXION 450 796 584.1 54400037
LEXION 440 796 584.1 54400037
LEXION 470 Sidehill 796 584.1 54100011
LEXION 460E 796 619.0 54400012
LEXION 450 796 619.0 54400012
LEXION 440 796 619.0 54400012
LEXION 430E 796 619.0 54300026
LEXION 420 796 619.0 54300026
LEXION 410 796 619.0 54300026
LEXION 430 Sidehill 796 619.0 54200011
The standard mounting time is approx. 4 man hours.

TABLE OF CONTENTS:

CLAAS LEXION 480 470 LEXION 460-410 Air compressor system Fitting Instructions Manual DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General
information
Important 3 1
Identification of warnings and danger signs 3 2
Correct use 3 2
4 Shipping Package
Shipping Package 4 1
Supplementary kits 796 583 0, 796 584 1 and 796 619 0 4 1
5 Installation
Fitting the air compressor system 5 1
Preparing the installation 5 1
Exchanging the charge-air tube (1) only
for C 12 engine 5 1
Fitting the compressed air tank with accessories 5 1
Fitting the air connection completely 5 2
Fitting the hose holder with accessories 5 3
Fitting the accessories for the air compressor system 5 3
Fitting the pressure governor with accessories 5 4
Fitting the air compressor with accessories 5 6
Screw on the supporting angle plate (39)
only for 3126 B engine 5 6
Connecting the compressor 5 7
Connecting the charge-air tube (1) for C 12 engine only 5 7
Make a test run! 5 8
Acceptance obligation for the air compressor system 5 8
Regular testing of the air compressor system 5 8

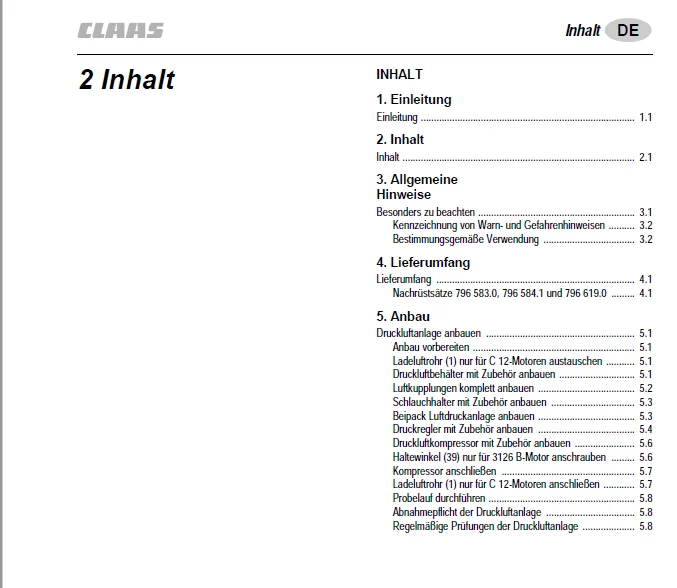

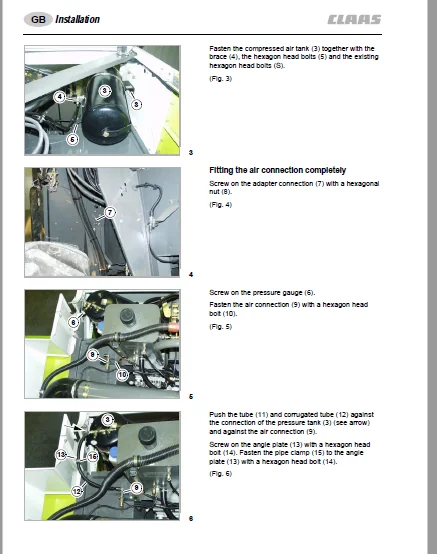

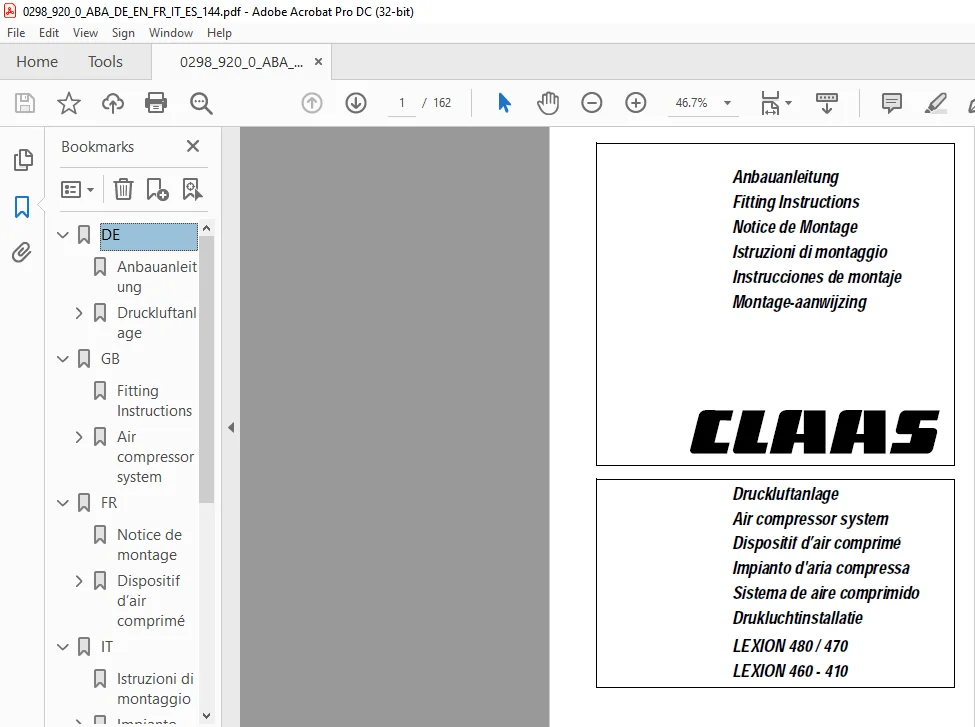

IMAGES PREVIEW OF THE MANUAL:
