DESCRIPTION:

CLAAS LEXION 480 / 470 LEXION 460 – 410 Air compressor system Fitting Instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

INTRODUCTION

These instructions describe the safe and timesaving work sequence for retrofitting the air compressor system. The following table lists all combine harvesters with the corresponding supplementary kit and machine number ranges

Machine type Parts no. from Machine
no.
LEXION 480/Crawler 796 583.0 54800017
LEXION 480 796 583.0 54600026
LEXION 460E/Crawler 796 584.1 54700014
LEXION 470 796 584.1 54500038
LEXION 460 796 584.1 54400037
LEXION 450 796 584.1 54400037
LEXION 440 796 584.1 54400037
LEXION 470 Sidehill 796 584.1 54100011
LEXION 460E 796 619.0 54400012
LEXION 450 796 619.0 54400012
LEXION 440 796 619.0 54400012
LEXION 430E 796 619.0 54300026
LEXION 420 796 619.0 54300026
LEXION 410 796 619.0 54300026
LEXION 430 Sidehill 796 619.0 54200011

The standard mounting time is approx. 4 man hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual

General
information
IMPORTANT

The instructions contained in this manual should be carefully read and observed by all persons who are concerned with the operation, maintenance and inspection of this machine/ front attachment in order to prevent accidents. Especially the »Safety Rules« in the operator’s manual should be read with the utmost care and adhered to. In addition, please also observe the accident prevention regulations that apply for your own country. Before commencing with the job, ensure that all the tools and service aids are available. Compare existing machine type/front attachment type with the list in the chapter »Shipping Package« and the parts kit supplied. The specification of the components, e.g. bolts, is shown on the shipping package. The shipping package shows the position number (pos. no.) of the components. Parts such as nuts and contact washers do not have a position number but belong to the bolt listed above which does have a position number. Additional part specifications are the part no., description, measurements, DIN and the quantity. In order to help with the assembly, existing components in the instructions are identified with letters, whereas new parts have been identified with a number (position number). Texts and pictures apply, in general, to all machine types covered by this book and the information given applies equally, except where reference is made to a particular model in captions to the pictures or in the main text. Technical data, dimensions and weights are given as an indication only. CLAAS reserve the right to make changes subsequently as technical developments continue. Responsibility for errors or omissions not accepted. Front, rear, right and left refer to the direction of forward travel
TABLE OF CONTENTS:

CLAAS LEXION 480 / 470 LEXION 460 – 410 Air compressor system Fitting Instructions Manual_DE_EN_FR_IT_ES – PDF DOWNLOAD

1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kits 796 5830, 796 5841 and 796 6190 41
5 Installation
Fitting the air compressor system 51
Preparing the installation 51
Exchanging the charge-air tube (1) only
for C 12 engine 51
Fitting the compressed air tank with accessories 51
Fitting the air connection completely 52
Fitting the hose holder with accessories 53
Fitting the accessories for the air compressor system 53
Fitting the pressure governor with accessories 54
Fitting the air compressor with accessories 56
Screw on the supporting angle plate (39)
only for 3126 B engine 56
Connecting the compressor 57
Connecting the charge-air tube (1) for C 12 engine only 57
Make a test run! 58
Acceptance obligation for the air compressor system 58
Regular testing of the air compressor system 58

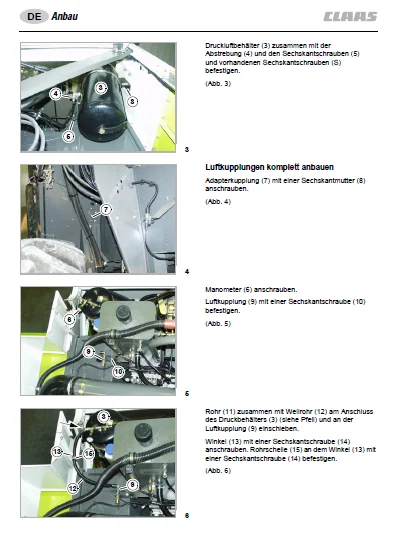

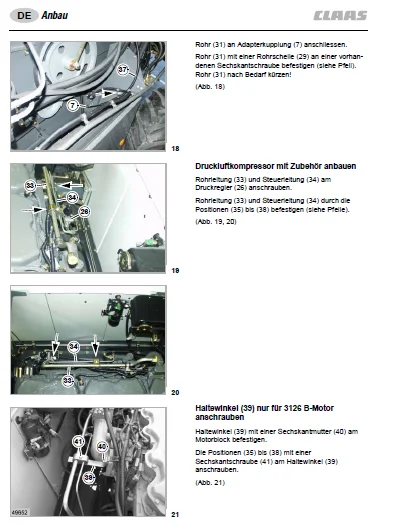

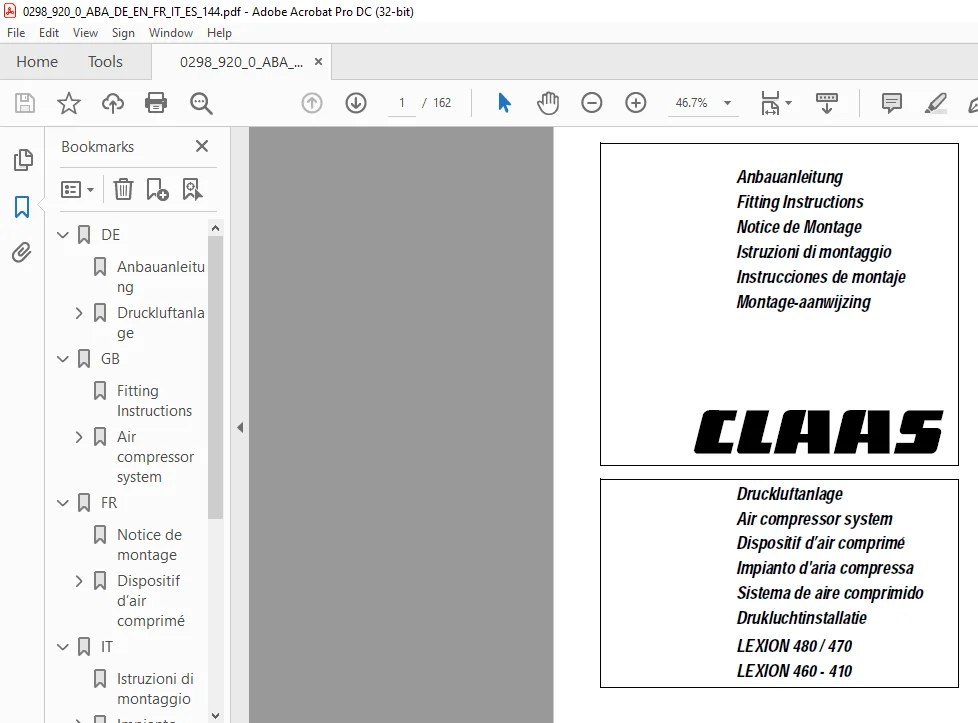

IMAGES PREVIEW OF THE MANUAL:
