CLAAS LEXION 480 470 Rotor Variable Speed Drive Fitting Instructions Manual DE_EN_FR

Description

CLAAS LEXION 480 470 Rotor Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

DESCRIPTION:

CLAAS LEXION 480 470 Rotor Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

INTRODUCTION :

• These instructions describe the safe and timesaving work sequence for retrofitting the rotor variable speed drive. CEBIS is a precondition for the supplementary kit parts no. 181 513.0.
• Retrofitting of the LEXION 480 / 470 and LEXION 485 R / 480 R / 475 R / 470 R / 460 R combine harvesters, is possible from the following machine number ranges: 54500011, 54600011, 54800011, 56500800, 56600800, 56700800, 56800800.

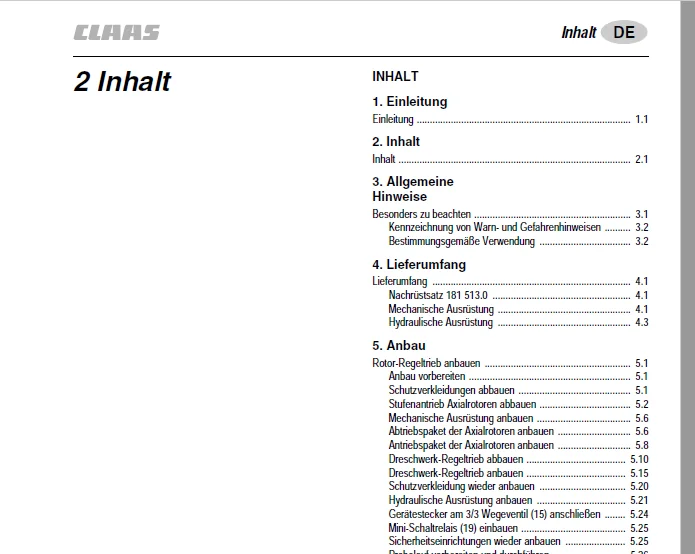

TABLE OF CONTENTS:

CLAAS LEXION 480 470 Rotor Variable Speed Drive Fitting Instructions Manual DE_EN_FR – PDF DOWNLOAD

1 Introduction
Introduction 1 1
2 Contents
Contents 2 1
3 General
Information
Important 3 1
Identification of warnings and danger signs 3 2
Correct use 3 2
4 Shipping Package
Shipping Package 4 1
Supplementary kit 181 513 0 4 1
Mechanical equipment 4 1
Mechanical equipment 4 3
5 Installation
Installing the rotor variable speed drive 5 1
Preparing the installation 5 1
Dismounting the protective cover 5 1
Dismounting the step drive axial rotors 5 3
Installing the mechanical equipment 5 6
Installing the driven pulley of the axial rotors 5 6
Installing the drive pulley of the axial rotors 5 8
Dismounting the threshing mechanism variable
speed drive 5 10
Installing the threshing mechanism variable speed drive 5 15
Remounting the protective cover 5 20
Installing the hydraulic equipment 5 20
Connecting the power supply plug to the 3/3
way valve (15) 5 24
Installing the mini-control relay (19) 5 25
Remounting the safety features 5 25
Preparing and performing the test run 5 26

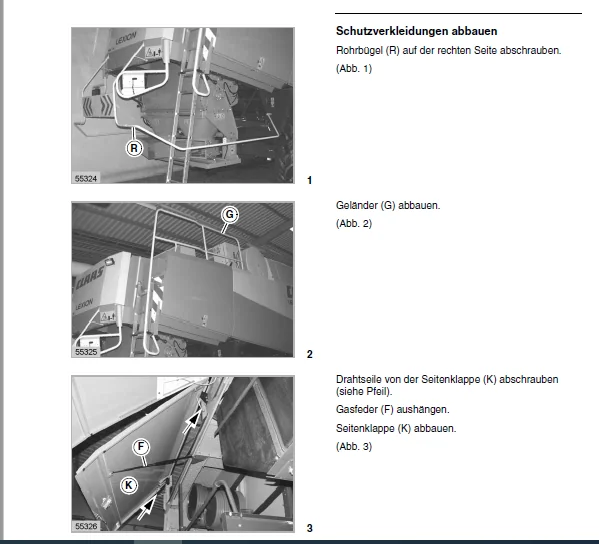

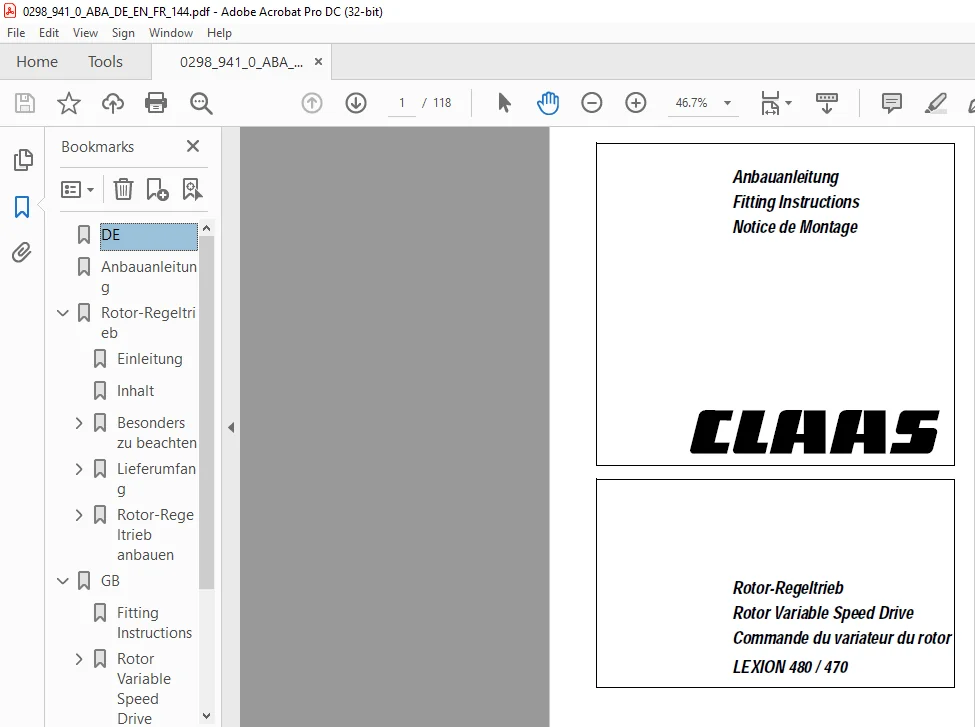

IMAGES PREVIEW OF THE MANUAL:
