CLAAS LEXION 480 / 485 LEXION 470 / 475 LEXION 460 / 465 LEXION 450 / 455 Hydraulic reel drive with chaff spreader Fitting instructions Manual

Description

CLAAS LEXION 480 / 485 LEXION 470 / 475 LEXION 460 / 465 LEXION 450 / 455 Hydraulic reel drive with chaff spreader Fitting instructions Manual

DESCRIPTION:

CLAAS LEXION 480 / 485 LEXION 470 / 475 LEXION 460 / 465 LEXION 450 / 455 Hydraulic reel drive with chaff spreader Fitting instructions Manual

INTRODUCTION

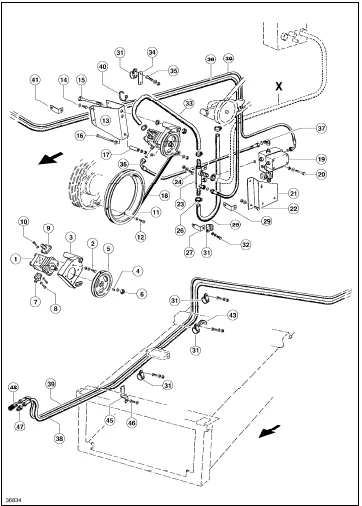

These instructions show you the installation of the hydraulic reel drive with chaff spreader on the combines Lexion 480/485, Lexion 470/475, Lexion 460/465 and Lexion 450/455. The shipping package list can be found on page 3. The items are numbered in the order of installation.
TABLE OF CONTENTS:

CLAAS LEXION 480 / 485 LEXION 470 / 475 LEXION 460 / 465 LEXION 450 / 455 Hydraulic reel drive with chaff spreader Fitting instructions Manual

Shipping package Quantity
1 Hydraulic pump 1
2 Hexagon head bolt M8 x 25 DIN 933 4
Contact washer A8 4
Hex. nut M8 DIN 934 4
3 Pump bracket 1
4 Spring lock washer 4 x 6.5 DIN 6888 1
5 V-belt pulley D 210 mm 1
6 Hex. nut M14 x 1.5 1
Circlip 14 1
7 Elbow flange WFS 15I.35 OMS 1
8 Hex. socket head screw M6 x 35
DIN 912-10.9 2
Detent edged ring VSKZ 6 2
9 Hose coupling 1
O–ring 18 x 2.5 DIN 3771 1
10 Hex. socket head screw M6 x 22
DIN 912-10.9 4
Detent edged ring VSKZ 6 4
11 V-belt pulley D 430 x 50 1
12 Hexagon head bolt M10 x 20 DIN 933-8.8 3
Contact washer A10 3
13 Bracket 1
14 Hexagon head bolt M10 x 20 DIN 933-8.8 2
Contact washer A10 2
15 Hexagon head bolt M20 x 190 DIN 931-8.8 1
Washer 1
Self-locking nut VM20 1
16 Hexagon head bolt M12 x 150 DIN 933-8.8 1
Washer 1
Contact washer A12 2
Hex. nut M12 3
17 Guide tube 1
18 V-belt 1
19 Flow control valve 1
20 Hexagon head bolt M8 x 75 DIN 931-8.8 2
Contact washer A8 2
Hex. nut M8 DIN 934 2
21 Retainer plate 1
22 Hexagon head bolt M8 x 20 DIN 933-8.8 2
Contact washer A8 2
Hex. nut M8 DIN 934 2
23 Manifold 1
Fitting Instructions
4 LEXION 480 / 485 — 450 / 455
24 Hexagon head bolt M8 x 16 DIN 933-8.8 1
Contact washer A8 1
Hex. nut M8 DIN 934 1
25 Hose 3TE – 800 long 1
26 Hose clamp AS 25–40/12–C7 DIN 3017 4
27 Angle bracket 30 x 5 x 117 1
28 Hexagon head bolt M10 x 40 DIN 933-8.8 1
Contact washer A10 2
Hex. nut M10 DIN 934 1
29 Mounting bracket 45 x 30 x 5 x 30 1
30 Hexagon head bolt M10 x 30 DIN 933-8.8 1
Contact washer A10 2
Hex. nut M10 DIN 934 1
31 Pipe clamp RSGU 1.38/25 8
32 Hexagon head bolt M8 x 30 DIN 933-8.8 8
Contact washer A8 8
Hex. nut M8 DIN 934 8
33 Hose 3TE – 1250 long 1
34 Flange 125 x 25 x 3 1
35 Hexagon head bolt M8 x 30 DIN 933-8.8 2
Contact washer A8 2
Hex. nut M8 DIN 934 2
36 Hose 2SN 12 N90N – 650 long 1
O-ring 12 x 2 2
37 Elbow coupling L15 DIN 3952 1
38 Hose 1 SN16NPTD – 8000 long 1
39 Hose 1 SN12N9NTP – 8000 long 1
40 Cable strap min. 7.6 x 282 7
41 Angle bracket 80 x 40 x 25 x 4 1
42 Hexagon head bolt M8 x 30 DIN 933-8.8 1
Contact washer A8 1
Hex. nut M8 DIN 934 1
43 Mounting bracket 82 x 25 x 5 1
44 Hexagon head bolt M8 x 25 DIN 933-8.8 1
Contact washer A8 1
Hex. nut M8 DIN 934 1
45 Bracket 1
46 Hexagon head bolt M10 x 30 DIN 933-8.8 1
Contact washer A10 1
47 Male connector 3/4” 1
48 Female connector 3/4” 1
49 Diring sealing tape 12.5 x 0.08 x 12000 1

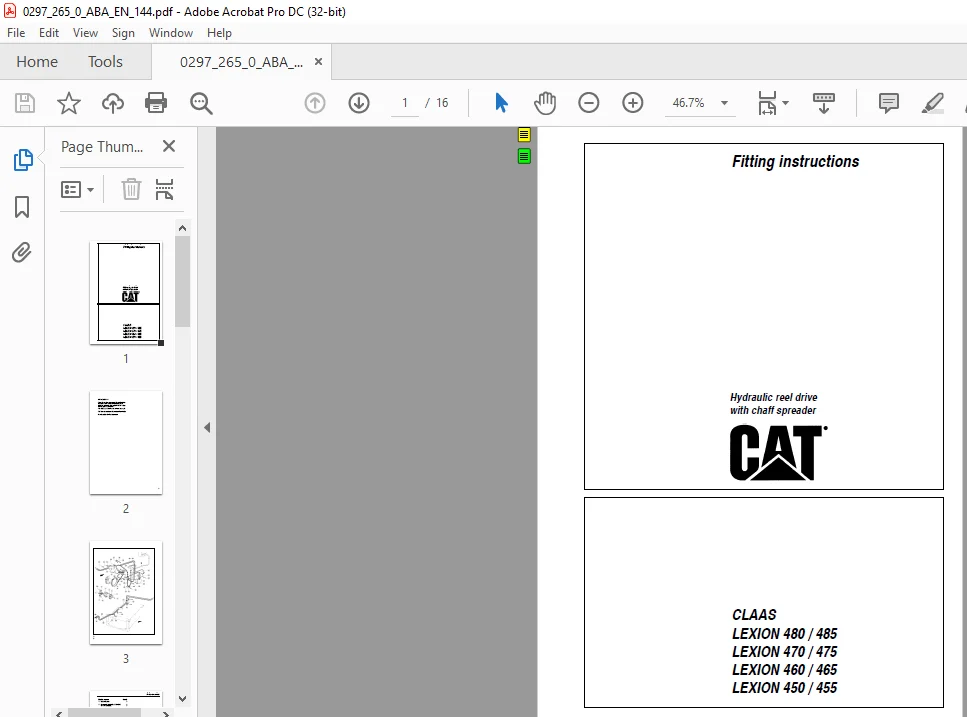

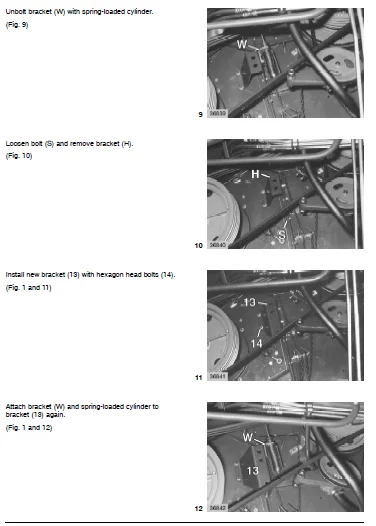

IMAGES PREVIEW OF THE MANUAL:
